Waterproof Access Control Device with Fingerprint, PIN Code, or 125 kHz RFID Chips
(Product ID: 3846)

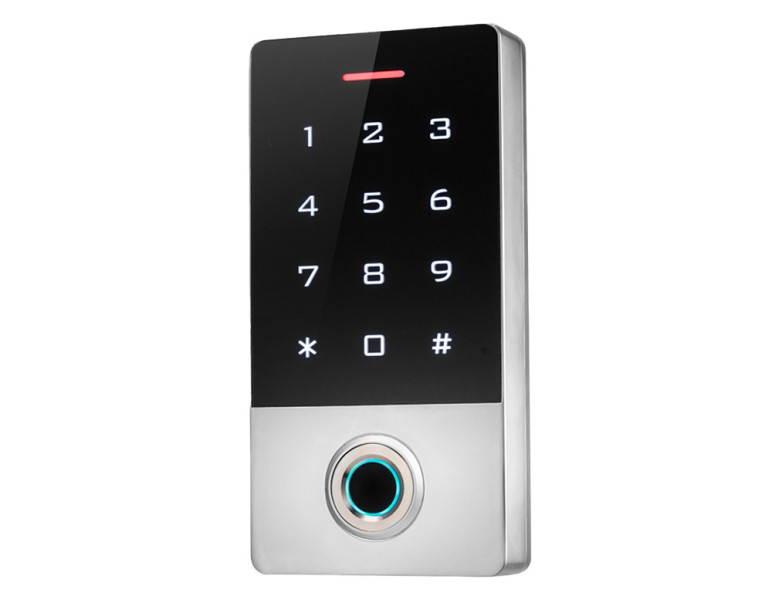

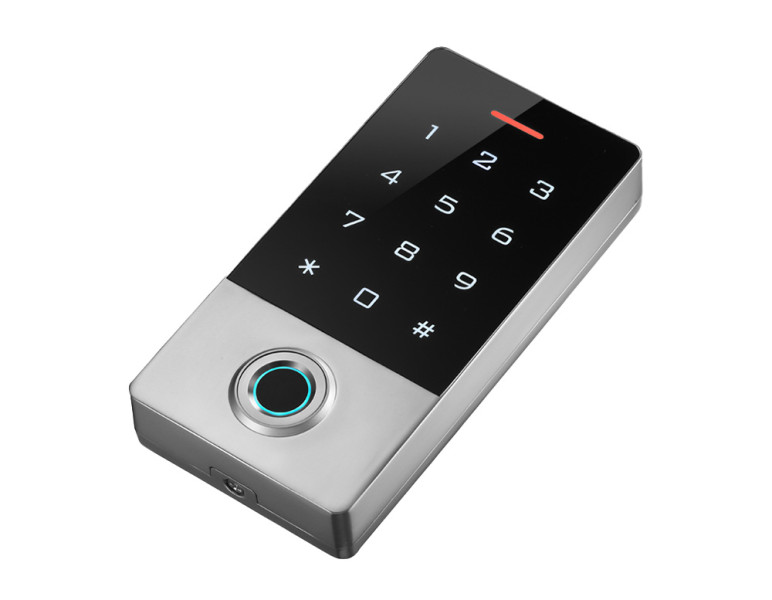

The SDC-T1F-EM is a standalone access control device for door entry using fingerprint authentication, PIN code, or 125 kHz RFID chip.

Key Features:

Wide housing: 139 × 70 × 20 mm

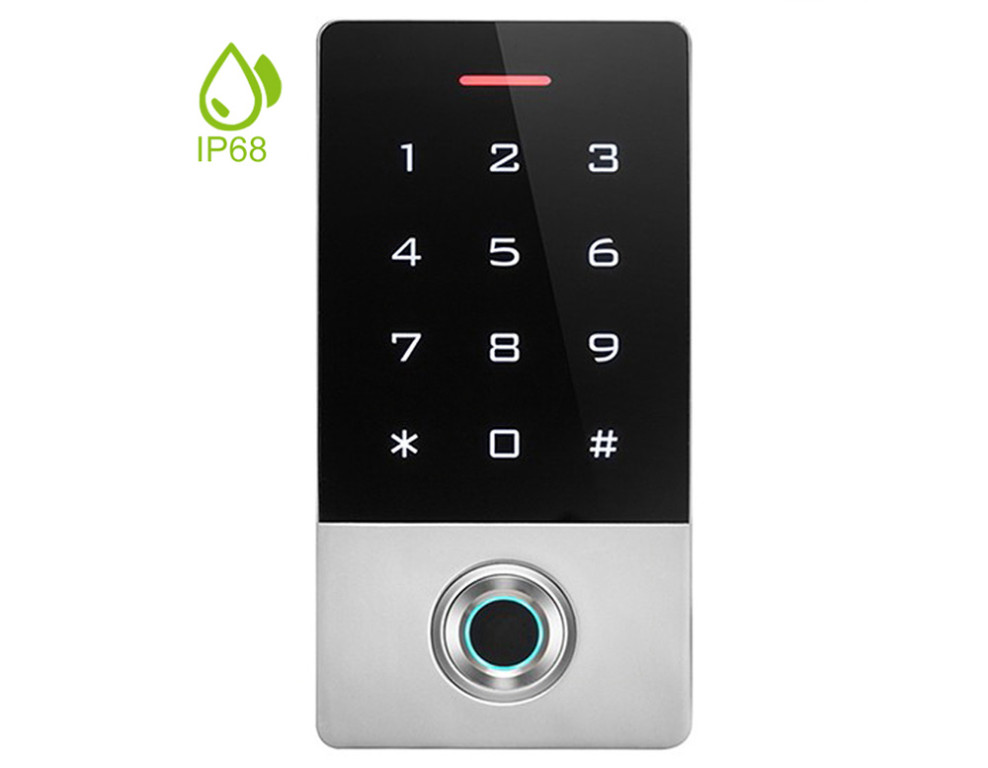

IP68 waterproof metal casing
Supports up to 10,000 users, including 600 fingerprints
Unlocks doors via fingerprint, PIN code, or RFID chip
Elegant design with illuminated keypad
Power supply: 12–24V DC
User management via administrator cards (Add User / Delete User)
Compatible with RFID chips: TK4100, EM4200, and compatible types

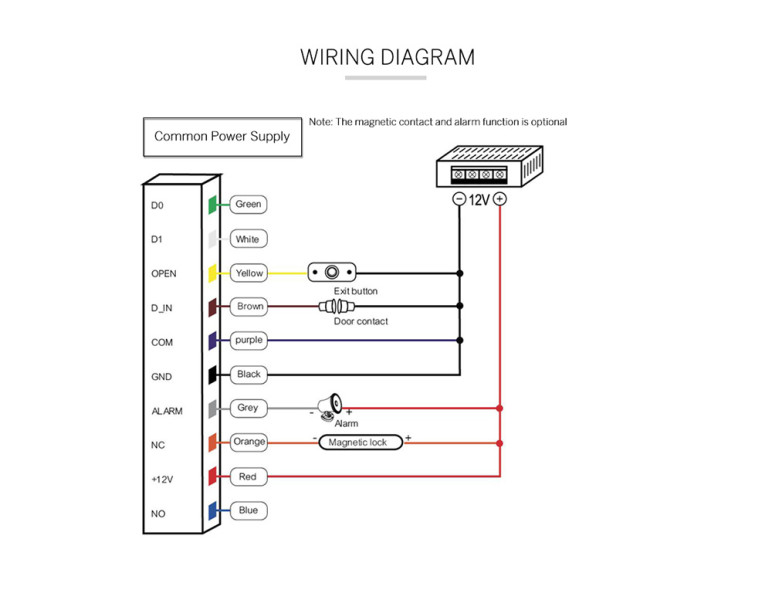

Voltage-free relay for connection to electronic locks

For further information or to request a quote, contact us at info@rfidspecialist.eu.
Our team of experts is here to assist and answer all your questions.

If you are an integrator or reseller, we offer special discounts.

Price/item: 95,00 EUR (with vat 115,90 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3846

Quantity:

Total:

95,00 EUR

Total with vat:

115,90 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

The SDC-T1F-EM is a high-quality device designed for controlling electromagnetic locks, making it suitable even for the most prestigious installations.

Upon successful authentication, a signal is sent via the relay, activating the electronic lock and unlocking the door to grant access.

Access can be granted using a fingerprint, PIN code, or 125 kHz RFID chip.

The device can also be configured to function as a reader only, using the Wiegand 26 protocol, and is compatible with standard controllers that support Wiegand readers.

Technical Specifications

Model: SDC-T1F-EM

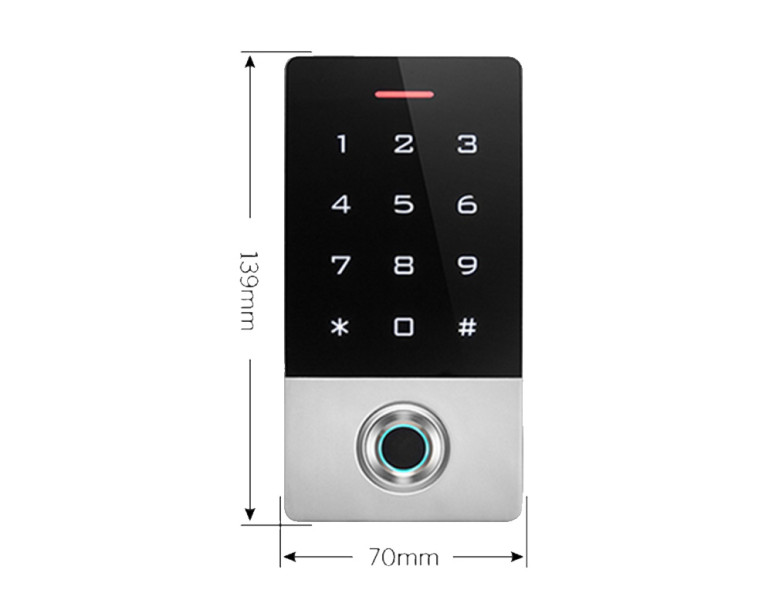

Dimensions: 139 × 70 × 20 mm
Power Supply: 12–24V DC
Frequency: 125 kHz
Supported RFID Chips: TK4100, EM4200, and compatible types
Housing: Metal (IP68 waterproof)
Max Users: 10,000 (including 600 fingerprints)
PIN Code Length: 3–6 digits
Relay Pulse Duration: 0–99 seconds
Max Relay Load: 1A
Indicators: LED & Buzzer
Operating Temperature: -40°C to 60°C
Humidity: 0% to 95% (non-condensing)
Reading Distance: 2–5 cm
Operating Mode: Can be set to Wiegand 26 reader mode
Net Weight: 472 g
Gross Weight: 581 g

For further information or to request a quote, contact us at info@rfidspecialist.eu.
Our team of experts is here to assist and answer all your queries.

If you are an integrator or reseller, we offer special discounts.
