INFO

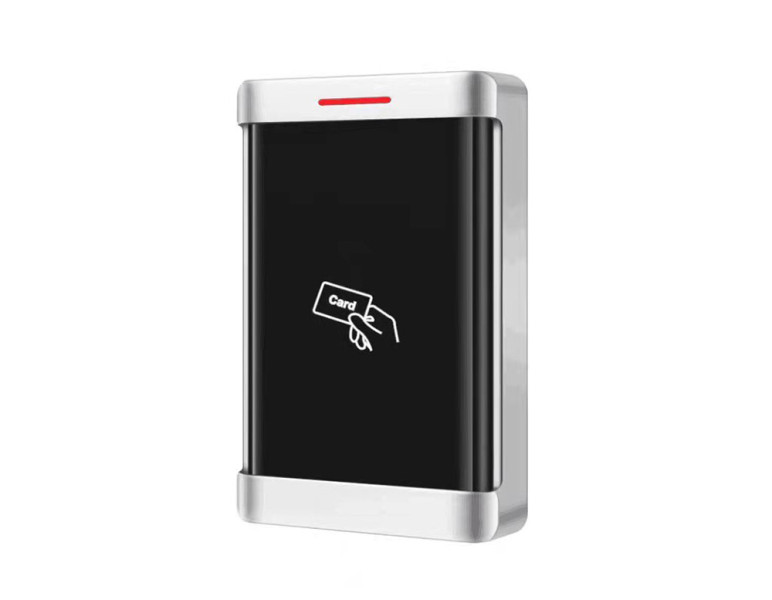

The SDC-M60TEM access controls have a metal housing, are waterproof and very well made. You can also attach them to a metal post or other metal base.

They are suitable for home use, an apartment block or an office.

You can register as many as 10,000 users and only these can be transferred from one device to another. The data transfer is done by connecting the two devices to each other and triggering the function to transfer users from the old device to the new device.

This is especially suitable if you use a device to open the front door in an apartment block and you want to add an additional device later, for example to open the bicycle garage, and with this function it is not necessary to get back all the RFID tags from the residents and register them one more time.

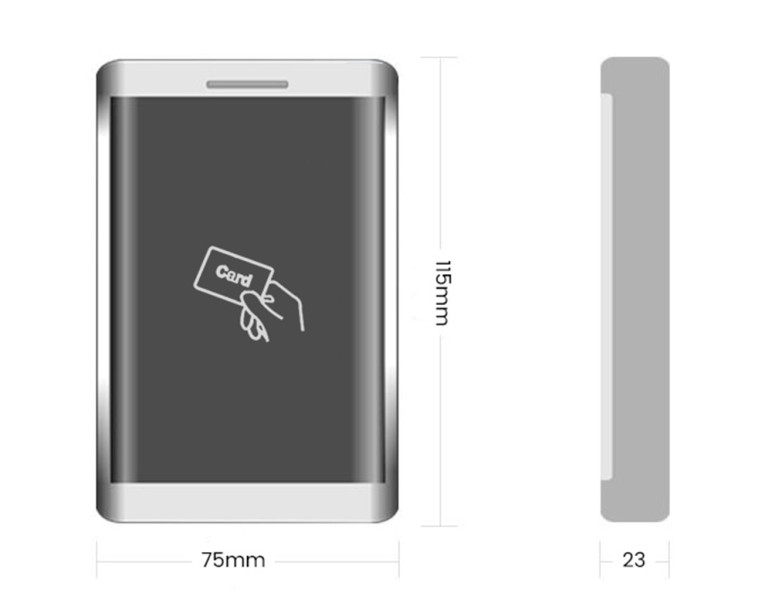

The relatively large housing, which measures 75x 115 x 23 mm, is very useful because you can use it to cover an electrical box or another opening in the facade.

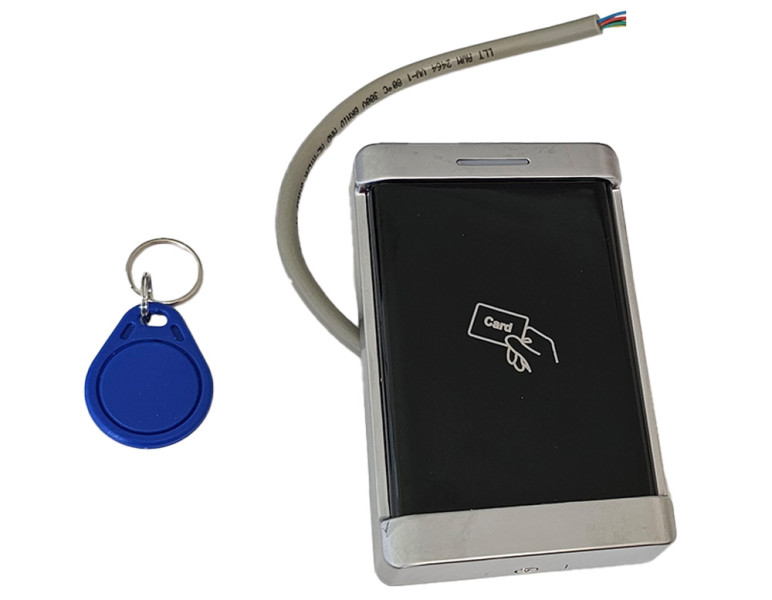

Chip reading takes place at a distance of 3-6 cm. You can use RFID cards, RFID tags, wristbands, and stickers and other media to open doors.

Technical specification

Dimension: 75 x 115 x 23 mm
Frequency: 125 kHz
Supported chips: EM4200, TK4100, programmed T5577, EM4102, H4100...
Housing: Metal, waterproof,
Mode of operation: Stand-alone device with built-in controller, RFID reader and relay
Identification method: RFID chips
Maximum number of users: 10,000
Indicators: Ice, beeper
Operating temperature: -20°C to 60°C
Humidity: 0% to 95%
Reading range of the reader: 3-6 cm
Expansion: the possibility of connecting an additional Wiegand reader (or Wiegand output)

If you need larger quantities send an email to info@rfidspecialist.eu or call +38641 884 124 and we will be happy to help you.

If you are an integrator or reseller, we offer special discounts.
