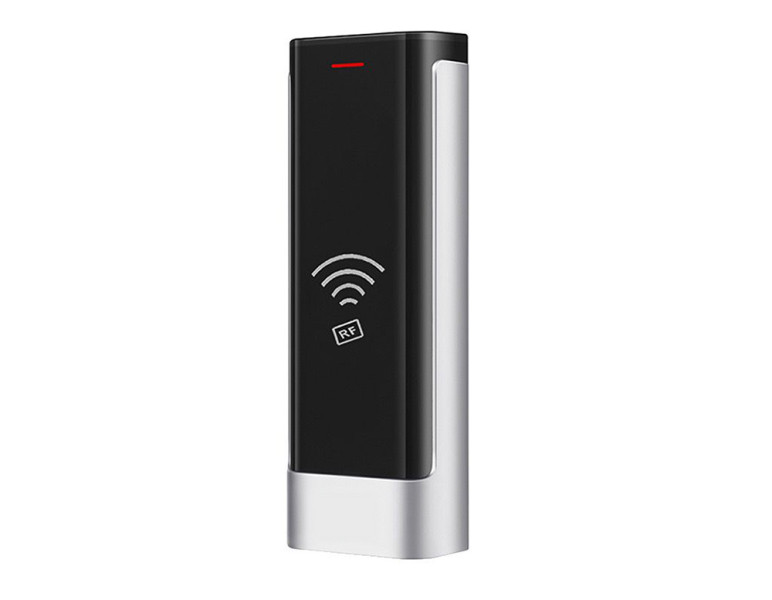

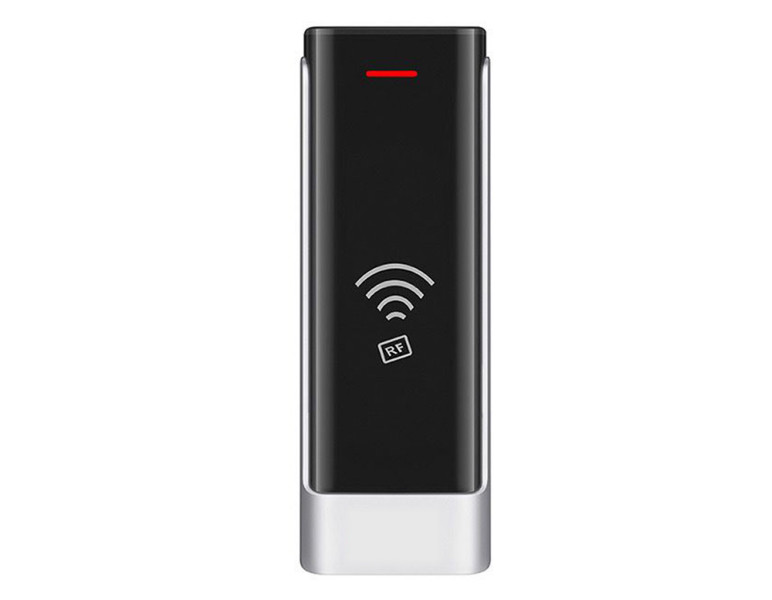

SDC-1101MEM Standalone Access Control with Metal Housing
(Product ID: 3865)

Standalone access control device for door opening via RFID chips operating at a 125 kHz frequency, compatible with TK4100, EM4200, and programmed T5577 chips. Supports registration of up to 10,000 users.

The device features a dry contact relay output for controlling electronic locks or electromagnetic door releases, enabling secure access to the premises.

The housing measures 49x135x23 mm. With an IP68 rating, the device is fully dust- and waterproof, making it ideal for outdoor installation and use in demanding environments such as industrial facilities.

For further information or a quote, contact us at info@rfidspecialist.eu. Our team of experts is ready to assist and answer any of your questions.

Special discounts are available for integrators and resellers.

Price/item: 58,00 EUR (with vat 70,76 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3865

Quantity:

Total:

58,00 EUR

Total with vat:

70,76 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

Rugged standalone access control with metal housing (49x135x23 mm), designed for door access using RFID chips operating at 125 kHz.

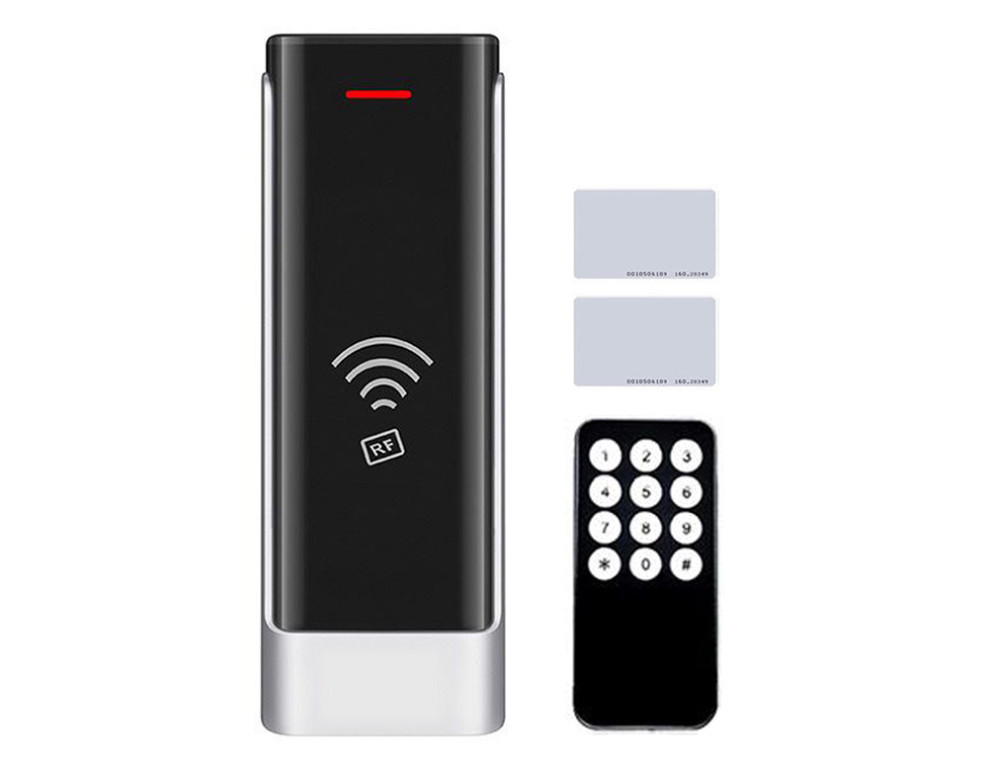

Users can be added using Add/Delete User service cards or via a remote control.

The unit features an anti-vandal housing and an IP68 protection rating, making it suitable for outdoor use in challenging environments such as industrial facilities, residential buildings, and similar locations.

Technical Specifications

Model: SDC-1101MEM
Dimensions: 49x135x23 mm
Power supply: 12 V DC
Frequency: 125 kHz
Supported chips: TK4100, EM4200, programmed T5577
Housing: Metal with a plastic RFID reader surface
Maximum number of users: 10,000
Relay pulse duration: 0–99 seconds
Relay max load: 1 A
Indicators: LED, buzzer
Operating temperature: -20°C to 60°C
Humidity: 10% to 95%
Reading range: 2–5 cm
Wiegand mode: Can function as a Wiegand 26 reader
Net weight: 280 g
Gross weight: 350 g
