Access control door controllers are used in various environments, including office buildings, residential complexes, industrial facilities, and even private home security systems.

They offer secure, simple, and efficient access management, enhancing safety while making user administration easy and scalable.

The device includes a dry contact relay for triggering door-opening mechanisms, along with input terminals for connecting readers, sensors, and other access control components.

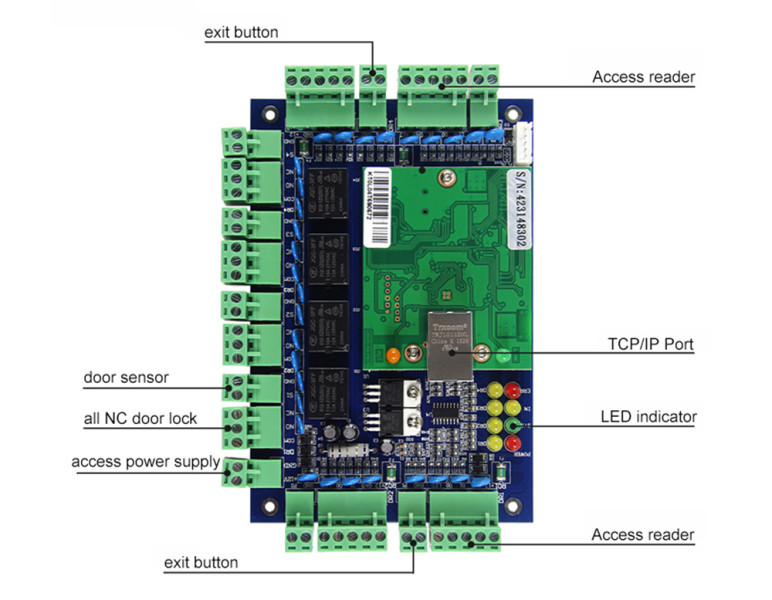

You can connect two RFID readers, a door sensor, and an exit button to the controller.

User management is handled through a LAN connection and built-in management software.

The device does not require a constant LAN connection to operate. The LAN is only needed for configuration and data transfer, such as access logs.

Technical Specifications

Model: SDC-ABC-004
Dimensions: 218 x 106 mm
Power supply: 12 V DC (recommended power adapter: 4–7 A)
Reader communication protocol: Wiegand (supports up to 4 readers)
Maximum number of users: 10,000
Relay outputs: For 4 doors
Relay pulse duration: 1–600 seconds
Inputs: Door sensor, exit button
Management: Via LAN, integrated software
Recommended reader cable distance: Up to 80 meters
