Access Control Door Controller for Single-Door Operation
(Product ID: 3822)

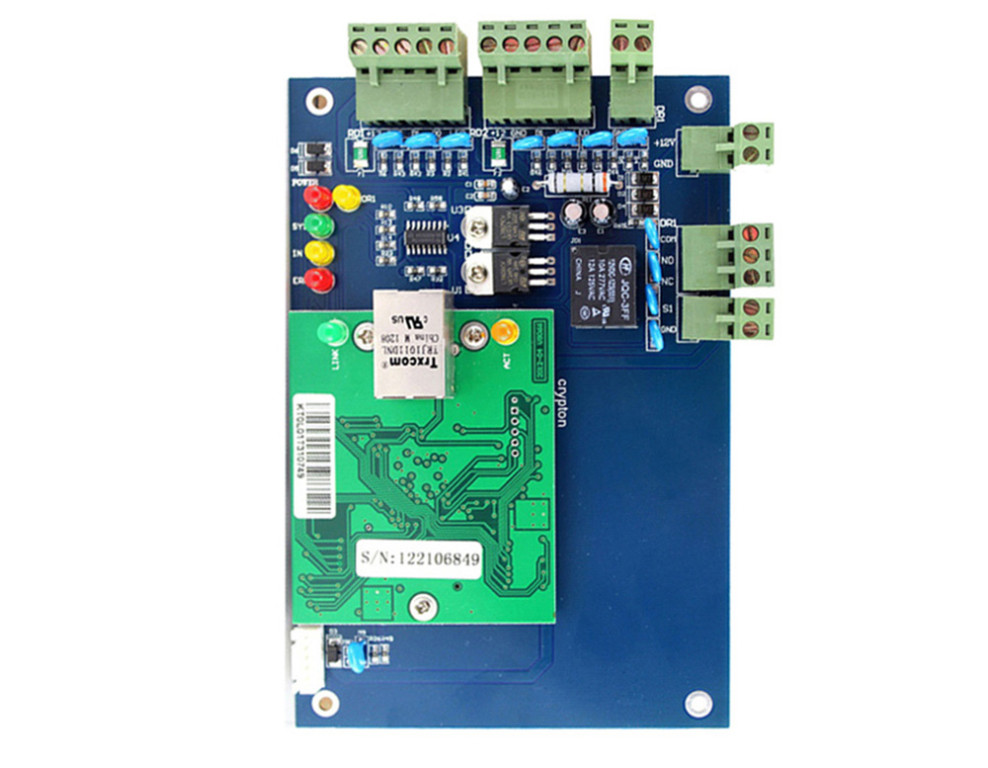

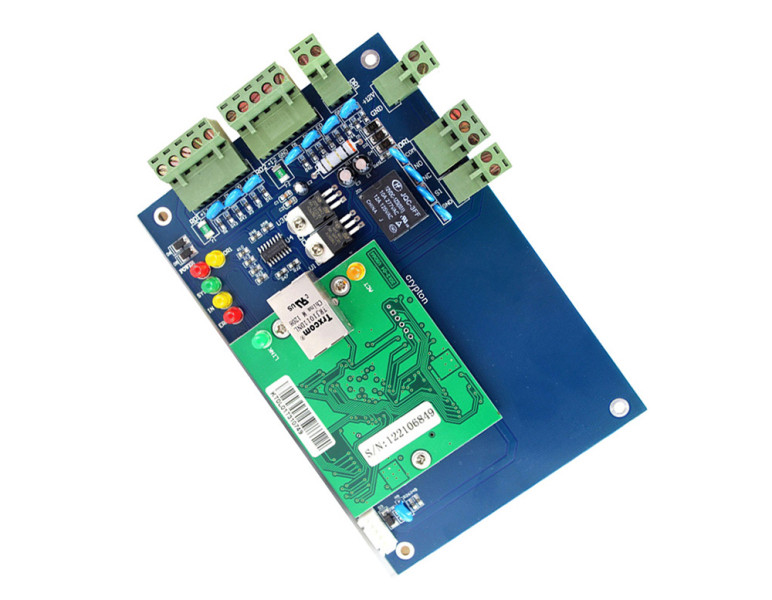

A door controller is a device that manages the operation of electric locks and other mechanisms used for electronic door access. This particular model is designed for controlling a single door.

The controller features integrated software for managing access rights and includes inputs for connecting two RFID readers, a door sensor, and an exit button. It also provides a relay output for controlling an electromagnetic lock, electric strike, or any other door unlocking mechanism.

Typically, such a controller is part of a larger security or access control system, offering automated and secure management of building or room access.

For further information or to request an offer, contact us at info@rfidspecialist.eu.
Our expert team is here to help with any inquiries.

If you are an integrator or reseller, we offer special discounts.

Price/item: 69,00 EUR (with vat 84,18 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3822

Quantity:

Total:

69,00 EUR

Total with vat:

84,18 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

Versatile and Secure Access Control

Access control door controllers are used in a wide range of environments, including office buildings, residential complexes, industrial facilities, and home security systems.
They enable secure, efficient, and user-friendly access management, enhance safety, and simplify user administration.

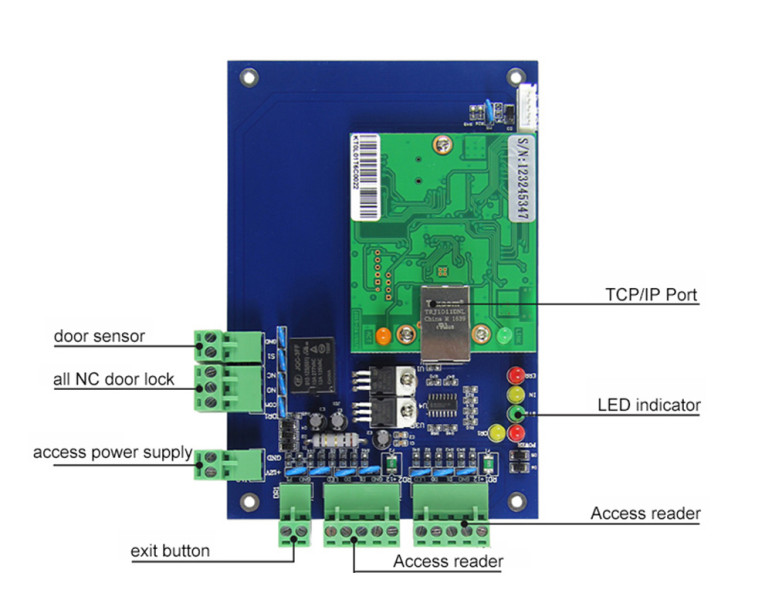

This controller features a potential-free relay for door unlocking and input ports for connecting readers, sensors, and other access components.

It supports a connection of two RFID readers, a door sensor, an exit button.

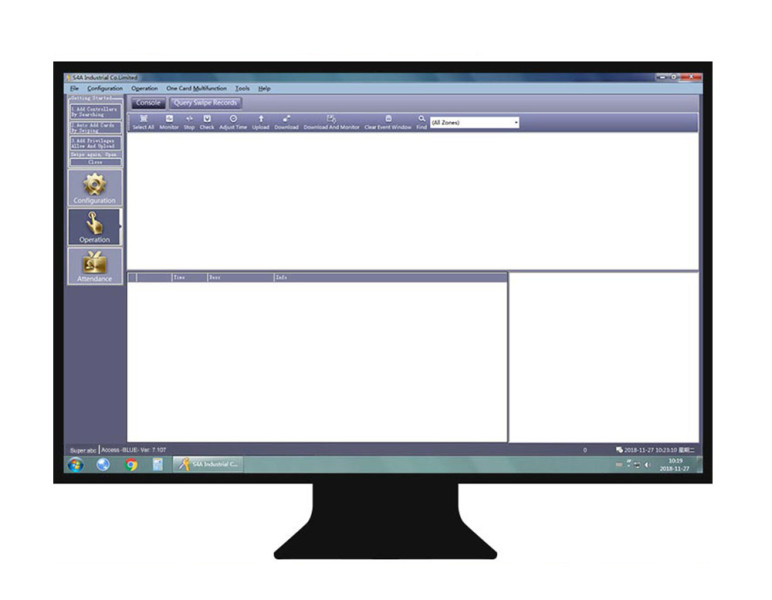

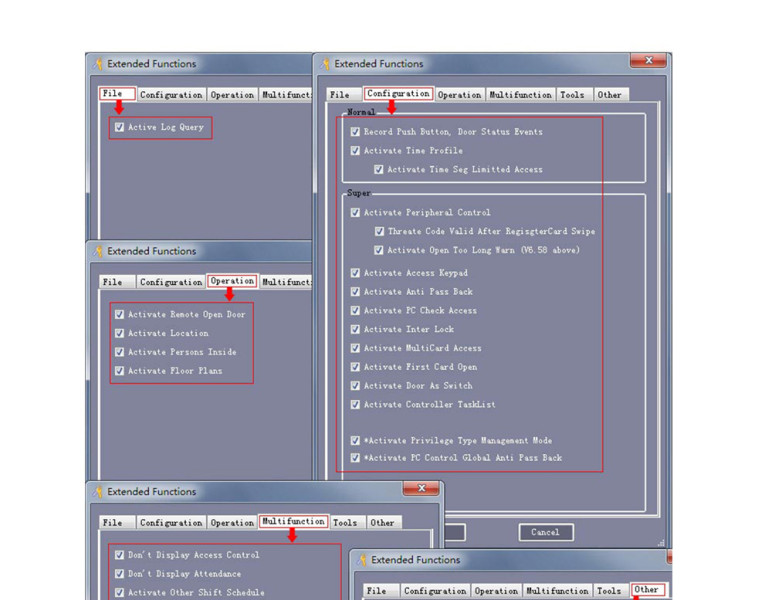

User management is done via a LAN connection and built-in software.
A constant network connection is not required—LAN is only needed for configuration and data retrieval, such as access logs.

Technical Specifications

Model: SDC-001
Dimensions: 160 × 106 mm
Power Supply: 12V DC
Reader Communication Protocol: Wiegand (supports two readers)
Max Number of Users: 10,000
Output Relay: For single door
Relay Pulse Time: 1–600 seconds
Additional Inputs: Door sensor, exit button

Additional Components Required (not included):
Enclosure with power supply
RFID card readers
RFID cards & tags
