SDC-ABC-002 Electronic Door Controller for Two Doors
(Product ID: 3563)

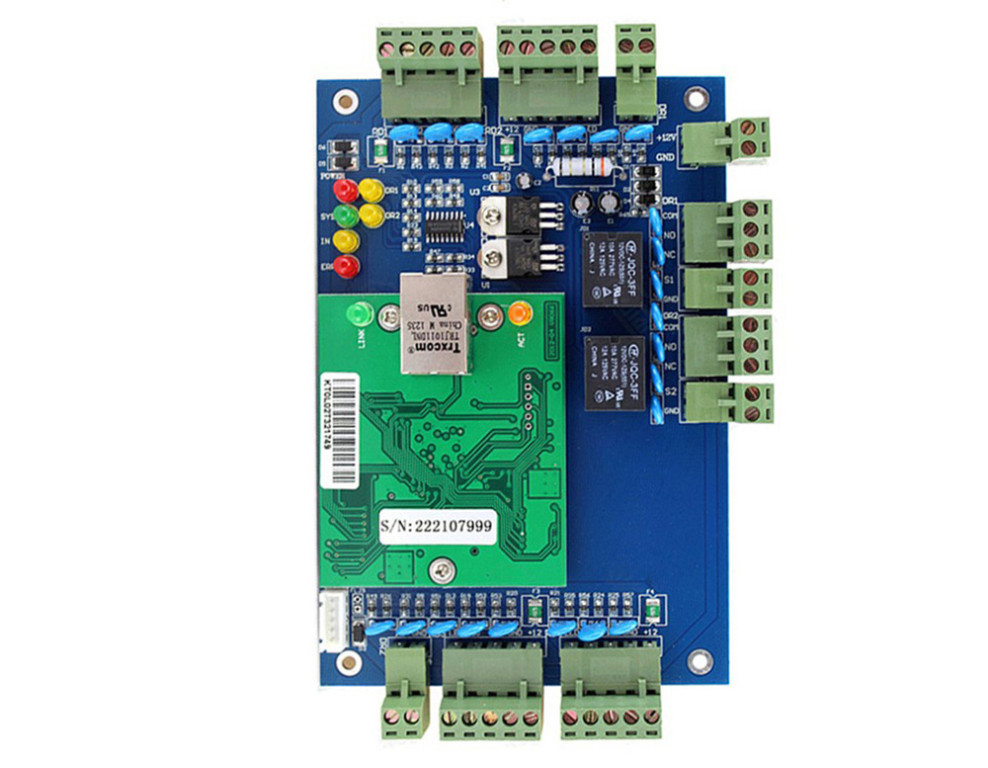

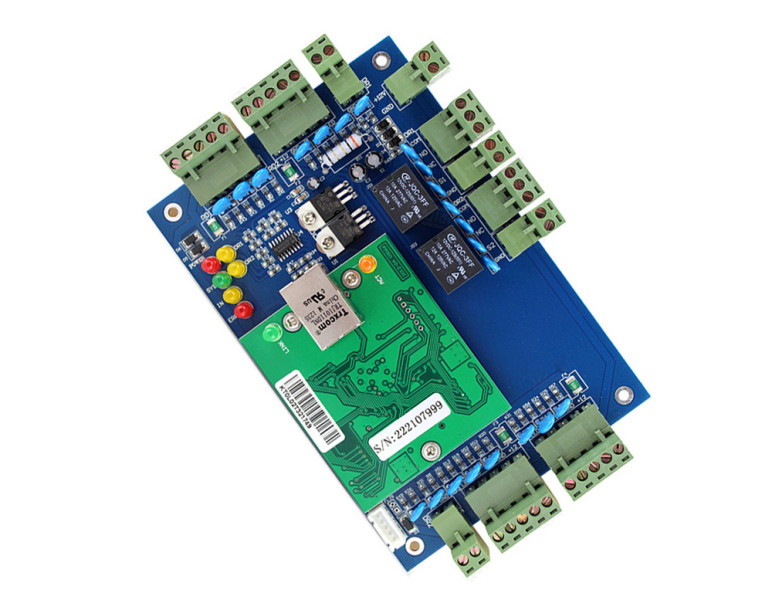

The electronic door controller is a device designed to manage the operation of electric locks and other mechanisms used for electronic door access. This unit features two voltage-free relays and is suitable for controlling double doors.

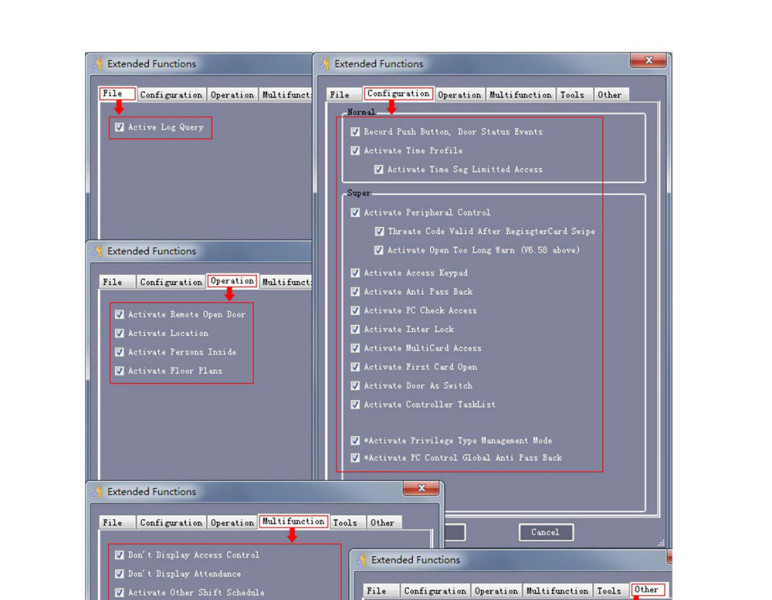

The controller includes integrated software for access rights management, input terminals for connecting RFID readers, door sensors, and exit buttons, as well as two output relays for connecting an electromagnetic lock, electric strike, or other door-opening mechanism.

Typically, such a controller is part of a larger security or access control system, enabling automated and secure access to buildings or restricted areas.

For further information or offer, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your queries.

If you are an integrator or reseller, we offer special discounts.

Price/item: 76,00 EUR (with vat 92,72 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3563

Quantity:

Total:

76,00 EUR

Total with vat:

92,72 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

Electronic door controllers are used in a variety of environments, including office buildings, residential complexes, industrial facilities, and even home security systems. They offer safe, simple, and efficient access management, enhance security, and simplify user administration.

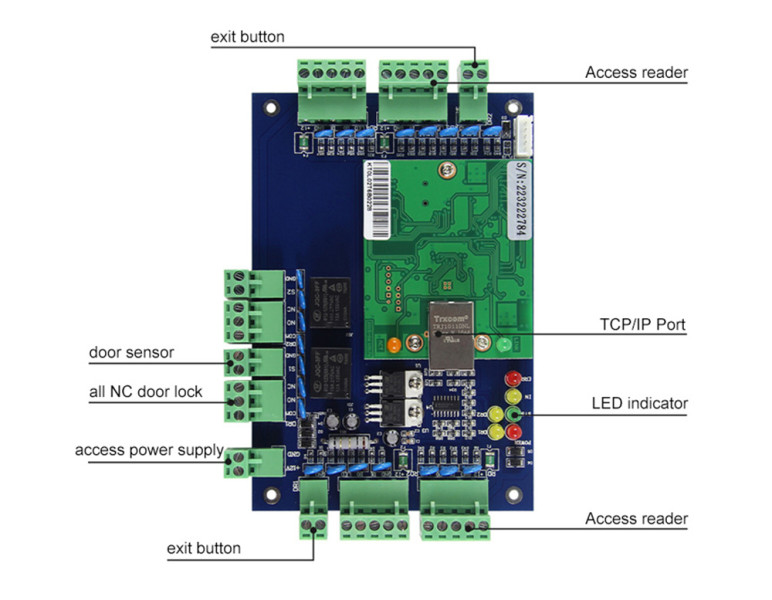

The device includes two voltage-free relays for door control and input terminals for connecting readers, sensors, and other access control components.

The controller supports the connection of up to four RFID readers, two door sensors, and two exit buttons.

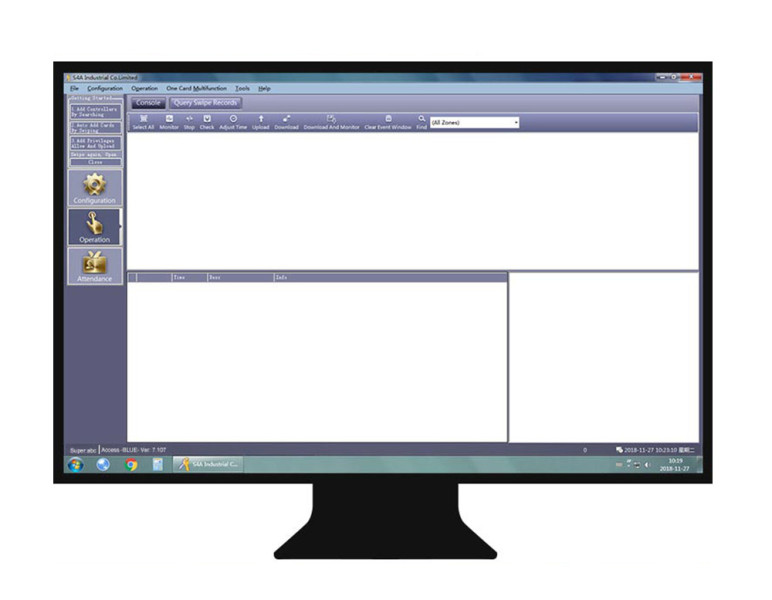

User management is handled via a LAN connection and integrated software.

The system does not require a continuous LAN connection to function. The LAN can be used solely for configuration and data transfer related to access logs.

Technical Specifications

Model: SDC-ABC-002
Dimensions: 160 x 106 mm
Power Supply: 12V DC
Reader Communication Protocol: Wiegand 26 (supports up to 4 readers)
Max Number of Users: 10,000
Output Relay for Double Doors
Relay Pulse Duration: 1–600 seconds
Support for Door Sensor and Exit Button Connections

Additional Components Required for Operation:
Housing with power supply
Card readers
RFID cards or key fobs
Exit buttons
