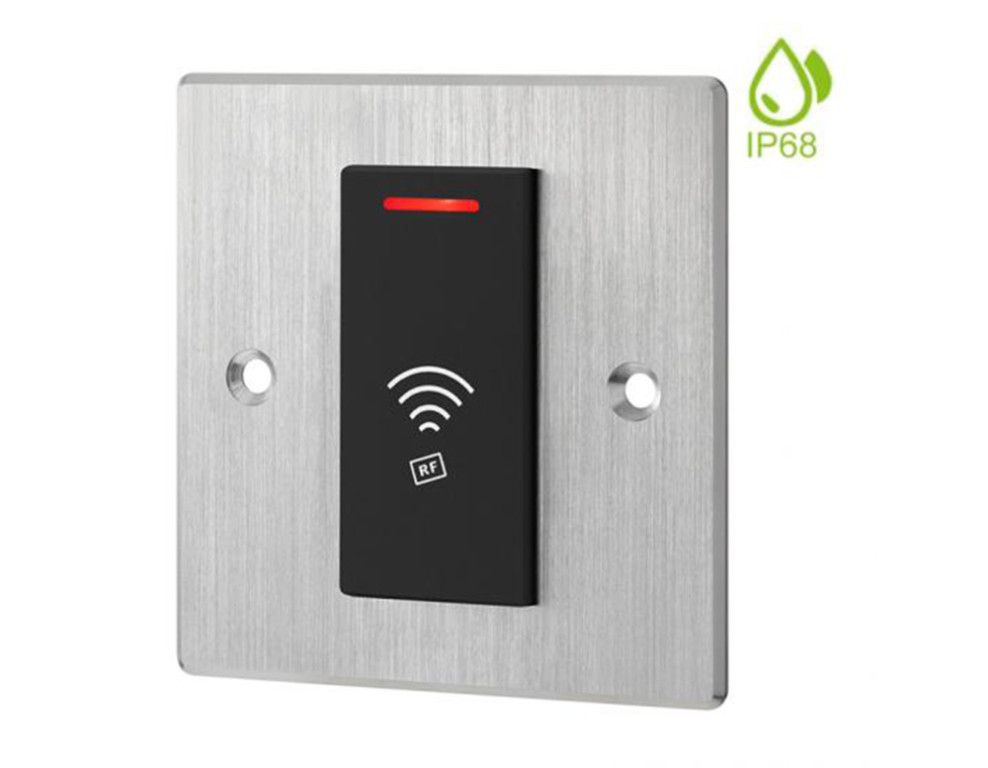

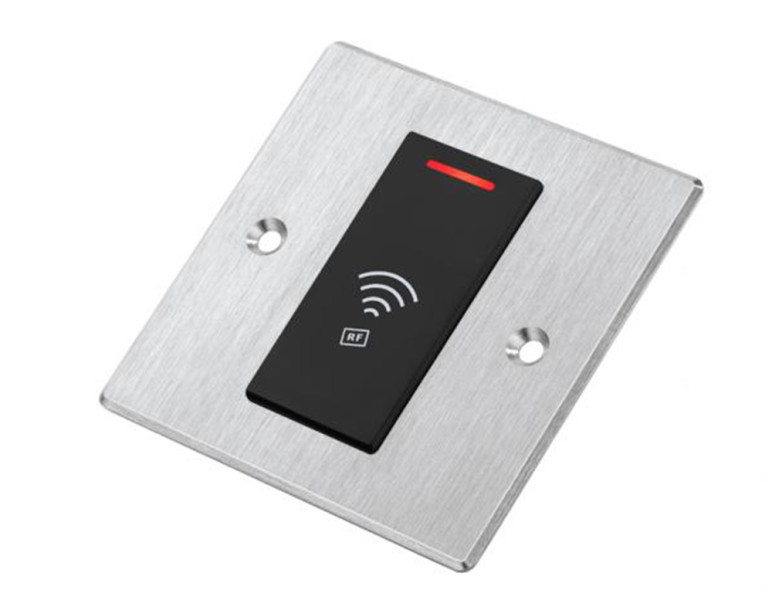

SDC-86E MF Built-in Access Control Unit 86 mm Width for Mifare RFID Chips
(Product ID: 3796)

The SDC-86E MF is a standalone, built-in device for door access control using Mifare Classic^®RFID chips operating at a frequency of 13.56 MHz.

The device activates a potential-free relay, making it suitable for unlocking various types of electronic locks and for elevator access control.

Key features:

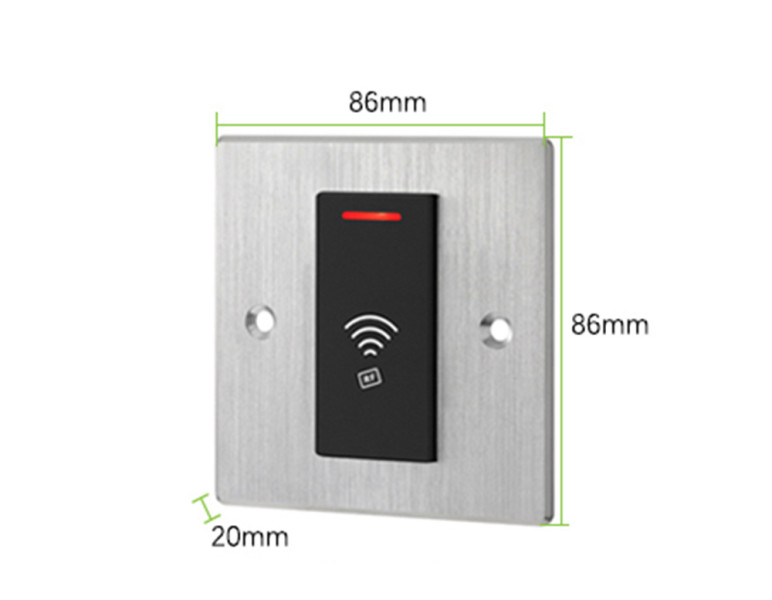

Compact housing with dimensions 86×86×20 mm, designed to fit over a standard electrical box
Waterproof metal housing, rated IP68
Supports up to 10,000 users
Door unlocking via RFID chip
Powered by 12V DC ± 2V
User management via administrator cards (Add User, Delete User)
Compatible with Mifare Classic® and F08-compatible RFID chips (13.56 MHz)
Potential-free relay output for connecting to electronic locks

For further information or to request an offer, contact us at info@rfidspecialist.eu.
Our team of experts is ready to assist and answer all your inquiries.

Are you an integrator or reseller? We offer special discounts tailored for you.

Price/item: 46,00 EUR (with vat 56,12 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3796

Quantity:

Total:

46,00 EUR

Total with vat:

56,12 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

The SDC-86E MF is a high-quality access control device, designed for integration with electromagnetic locks.

Upon successful authentication, the relay is activated, sending a signal to the electronic lock to unlock the door and allow access.

Technical Specifications

Model: SDC-86E MF
Dimensions: 86×86×20 mm
Power Supply: 12V DC ± 2V
Frequency: 13.56 MHz
Supported RFID Chips: Mifare Classic® and compatible F08 chips
Housing: Metal
Max Number of Users: 10,000
Relay Pulse Duration: 0–99 seconds
Max Relay Load: 1A
Indicators: LED, Buzzer
Operating Temperature: -20°C to +60°C
Humidity: 0% to 95% (IP68 waterproof housing)
Reading Range: 2–5 cm
Operating Mode: Can be configured to work as a Wiegand reader
