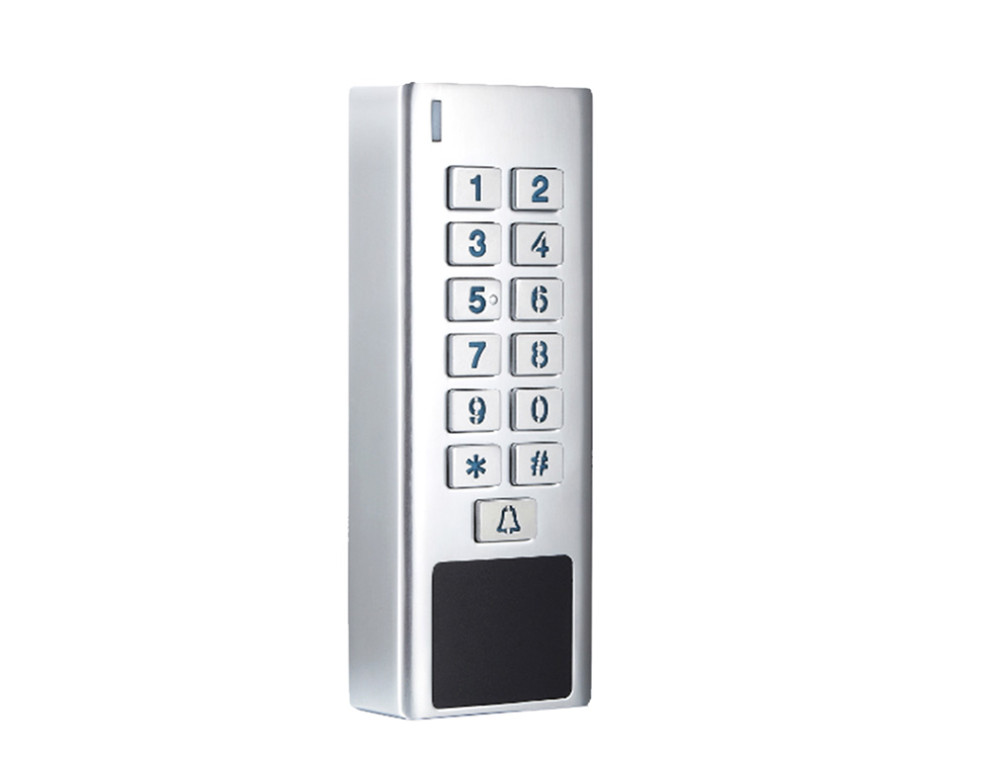

This access control unit with PIN and 13.56 MHz RFID reader is designed for managing entry and unlocking doors reliably and efficiently.

Product Overview:

Model: SDC-615NM-1-M
Dimensions: 44×129x 20 mm
Frequency: 13.56 MHz
Housing: Metal, waterproof (IP67)
Operating Temperature: -40°C to +70°C
Humidity Range: -10% to 98% RH
Operation Mode: Standalone access control with RFID and PIN

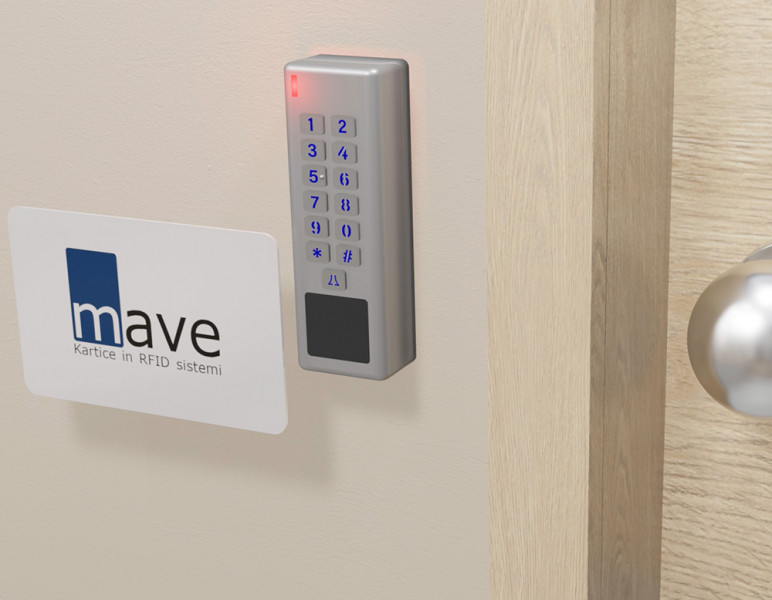

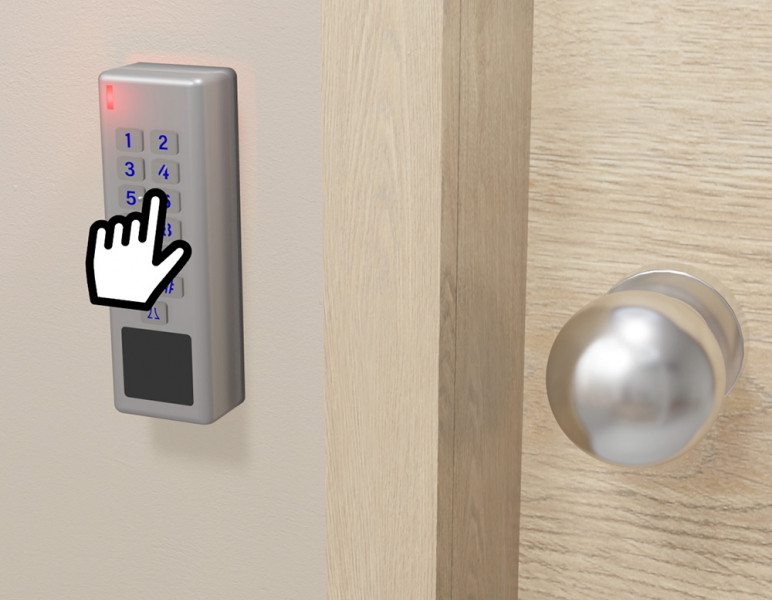

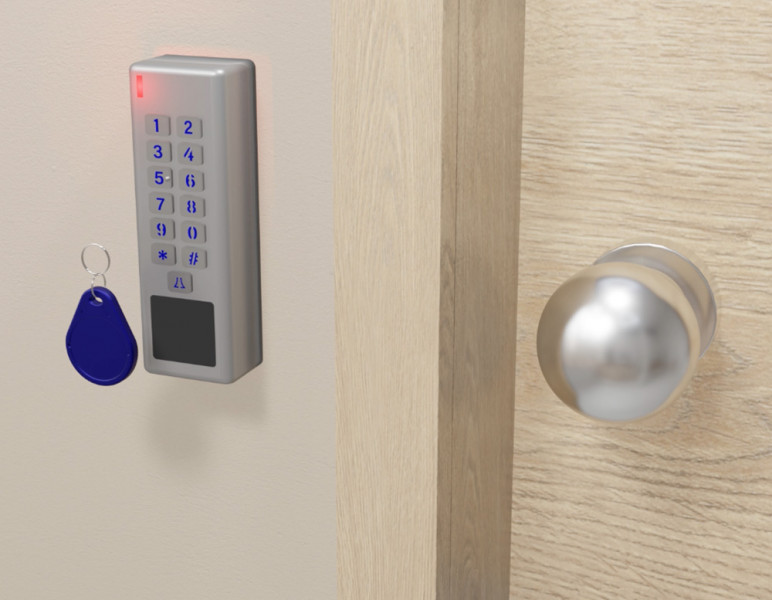

Identification Methods: RFID tag, PIN code, RFID + PIN combination
User Capacity: 1,500 users
Indicators: LED, Buzzer

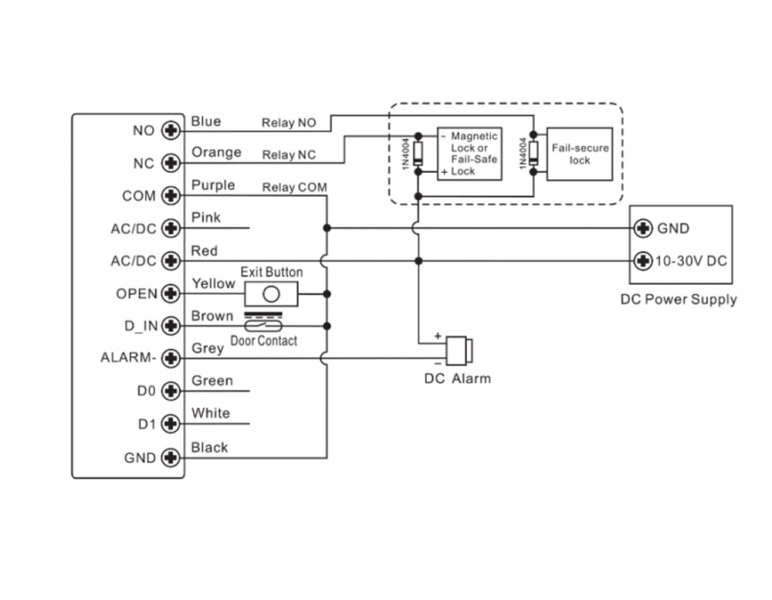

Additional Features: Doorbell button, Exit button connection
Relay Output for Door Unlocking: < 2A
Power Supply: 10–24V DC
Cable: Fixed to the reader, electronics sealed in resin
Power supply unit not included

User Management:
Users are added using the Admin card.
Simply present the Admin card (orange LED lights up), then present RFID tags or cards to be added.
To finish, present the Admin card again to store new users.

To delete a user, present the Delete card, then the RFID tag to be removed, and again the Delete card to confirm.

Relay timing and other settings are configured via the keypad according to the included instructions.
