SDC-39E EM Standalone Access Controller for 125 kHz Chips
(Product ID: 3793)

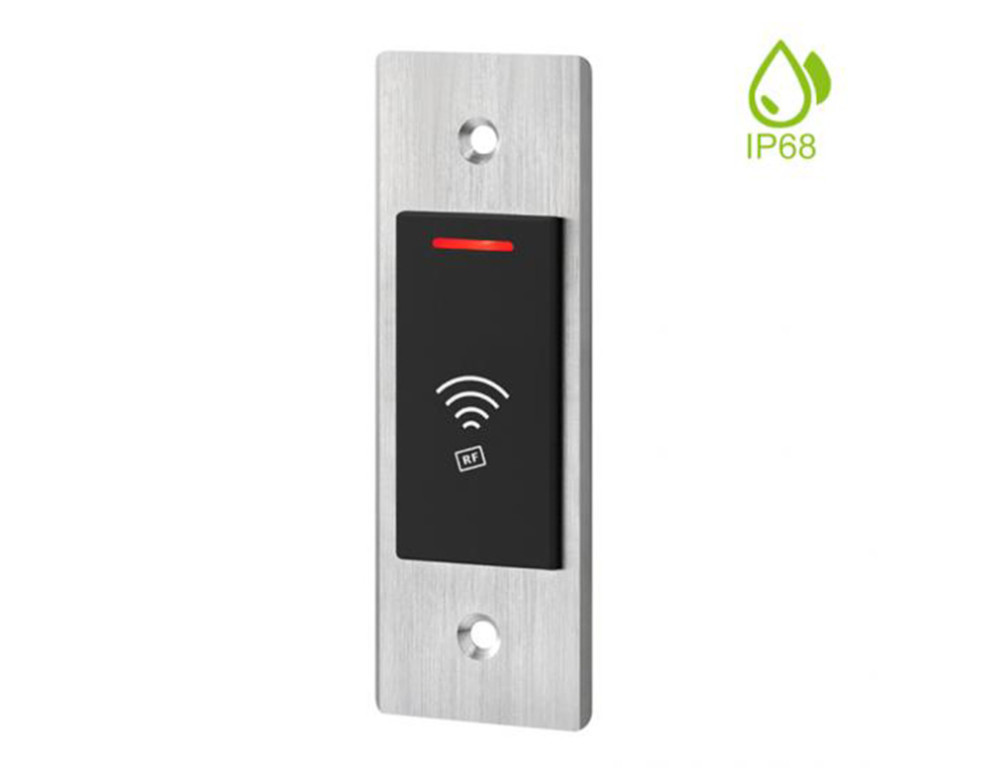

The SDC-39E EM is a standalone flush-mount device for door access control using RFID chips operating at 125 kHz.

The unit activates a dry-contact relay and can be used to control various electronic locks or elevator access.

Key features of this device include:

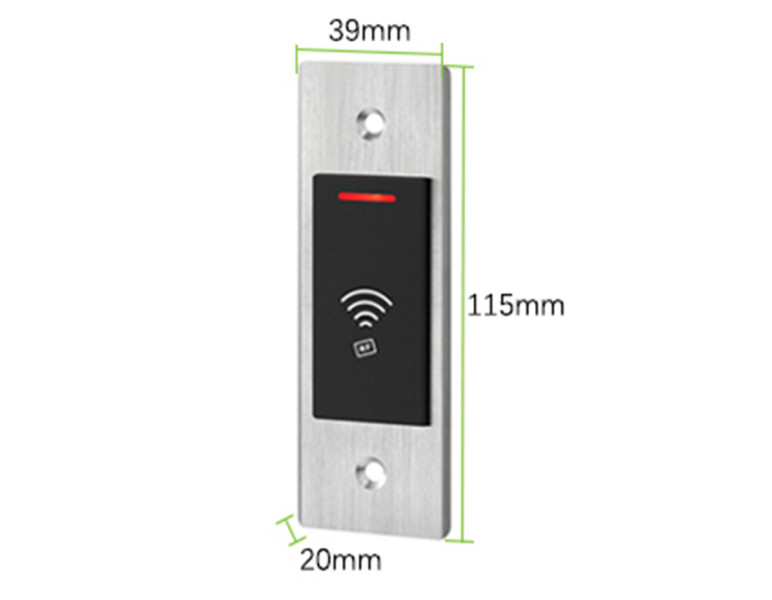

Slim housing dimensions: 39 x 115× 20 mm
Waterproof metal casing, IP68 rated
Capacity for up to 10,000 users
Access via RFID chip
12V ± 2V DC power supply
User management via administrator cards (Add User, Delete User)
Compatible with TK4100, EM4200, and encoded T5577 chips (125 kHz frequency)
Dry-contact relay for connection to electronic locks

For further information or a quote, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your questions.

If you are an integrator or reseller, we offer special discounts.

Price/item: 37,00 EUR (with vat 45,14 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3793

Quantity:

Total:

37,00 EUR

Total with vat:

45,14 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

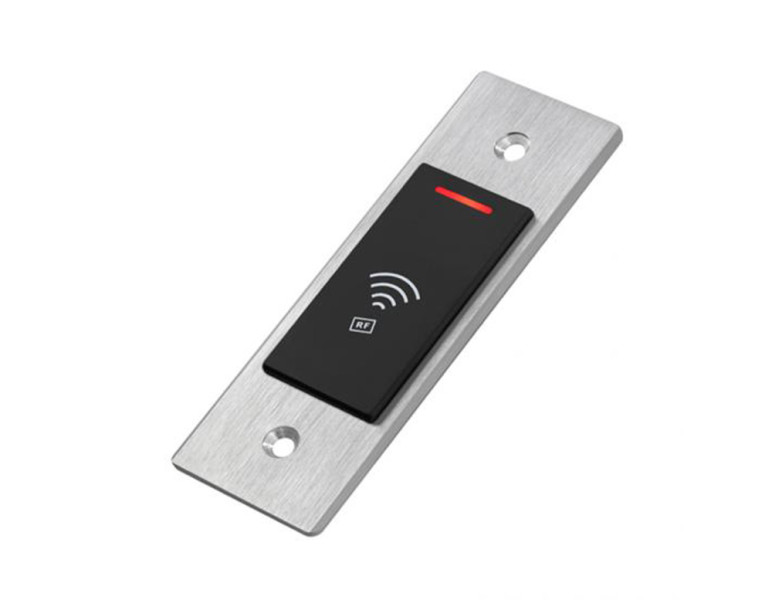

SDC-39E EM is a high-quality device designed for controlling electromagnetic locks and ideal for flush-mount installation.

Upon successful authentication, the relay contact is activated, sending an impulse to the electronic lock to open the door and allow access.

Technical Specifications

Model: SDC-39E EM
Dimensions: 39 × 115 × 20 mm
Power Supply: 12V ± 2V DC
Frequency: 125 kHz
Supported Chips: TK4100, EM4200, encoded T5577
Housing: Metal
Maximum Users: 10,000
Relay Pulse Time: 0–99 seconds
Relay Load Capacity: 1A
Indicators: LED, buzzer
Operating Temperature: -20°C to 60°C
Humidity: 0%–95% (IP68 waterproof casing)
Reading Distance: 2–5 cm
Optional Mode: Can be configured to function as a Wiegand reader
