INFO

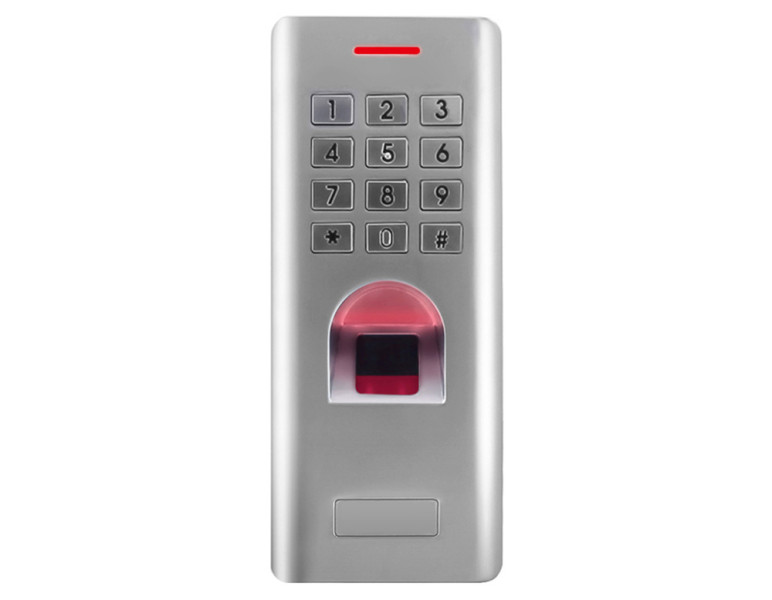

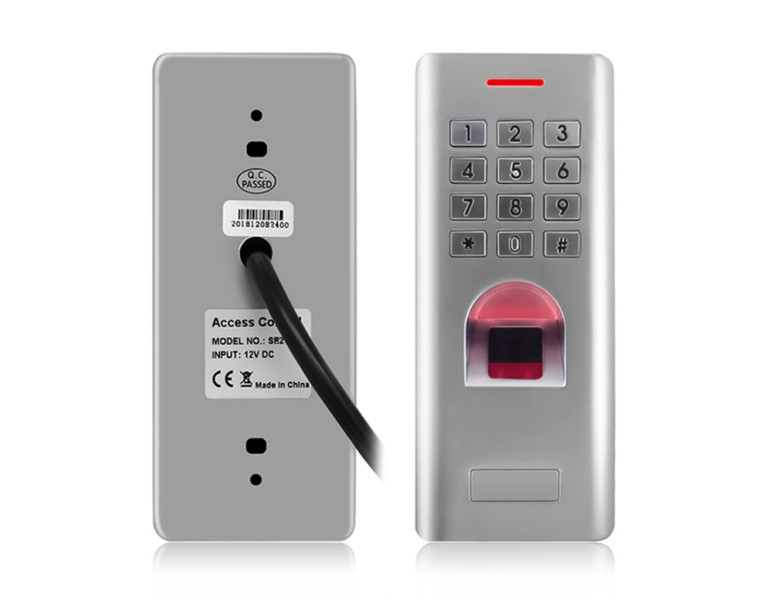

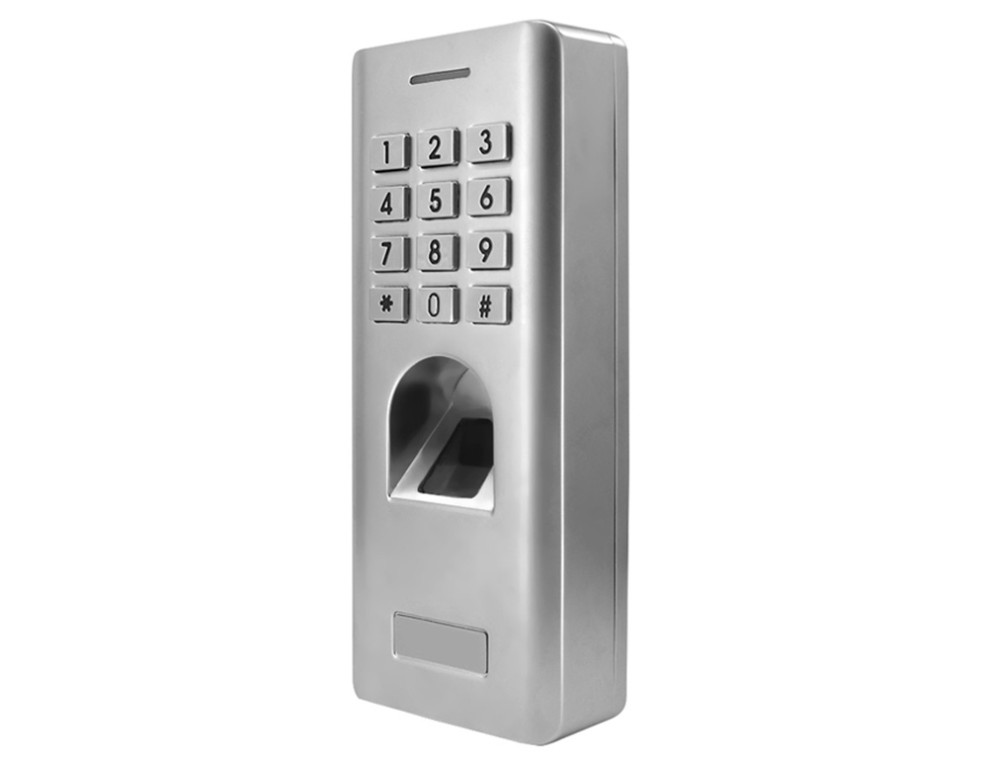

The SDC-711NF-1  is a standalone access control with PIN or fingerprint.

It is a type of security system that allows access to a door or entrance through the use of a PIN code or a fingerprint scan. It is a self-contained system that does not require a connection to a network or a central server to function.

It features a waterproof metal housing, robust design and reliable operation.

When a person approaches the door, they can enter their unique PIN code on the keypad or place their finger on the fingerprint scanner. If the information matches what is stored in the system's database, the door will unlock and allow entry.

One of the main advantages of standalone access control systems is their simplicity and ease of use. They do not require complex wiring or installation procedures, and they can be easily programmed to add or delete user codes or fingerprints.

Standalone access control systems with PIN or fingerprint are commonly used in small businesses and residential settings, where a high level of security is required but a centralized access control system is not necessary.

Technical specification:

Model name: SDC-711NF-1
User capacity: 1000 fingerprint and 2000 password
Working mode: Fingerprint, password
Working voltage: DC 12V±20%
Current: ≤150mA; (≤ 45mA idle mode)
Indicators: Buzzer and LED
Interface: Wiegand 26-34
IP grade: IP66
Fingerprint sensor resolution: 500DPI
FAR/FRR: <0.01%/ <0.01%
Fingerprint input time: <0.5S
Identification Time <0.5S
Operating temperature: -20°C~60°C
Working humidity: 10%~99% RH
APB system: Can connect external wiegand card reader
Material: Zinc Alloy
Dimension: 58x137x26mm
Unit weight: 400 g

Other specification

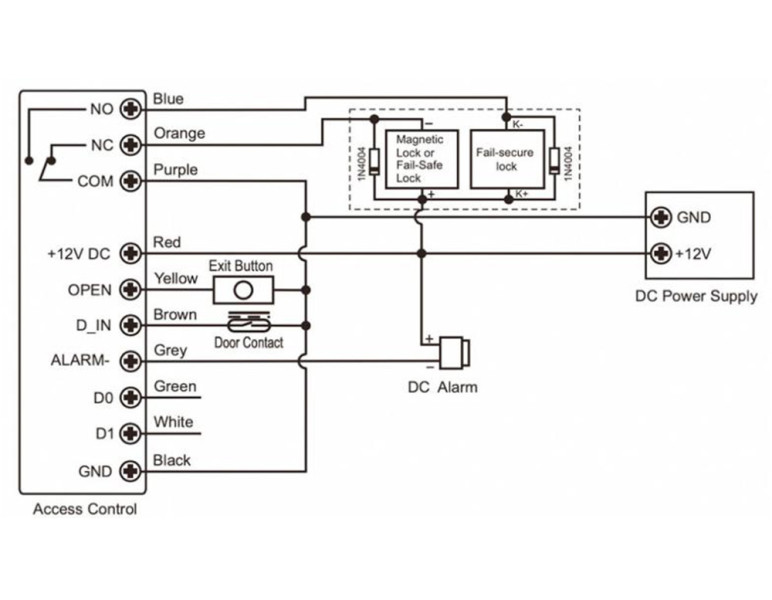

1. Relay to connect door lock.
2. Interface to connect external alarm, exit button etc.
3. Infrared remote controller

For further information or offer, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your queries.

If you are an integrator or reseller, we offer special discounts.
