SDC-86E EM Built-in Access Control, Unit 86 mm Width, for 125 kHz RFID Chips
(Product ID: 3795)

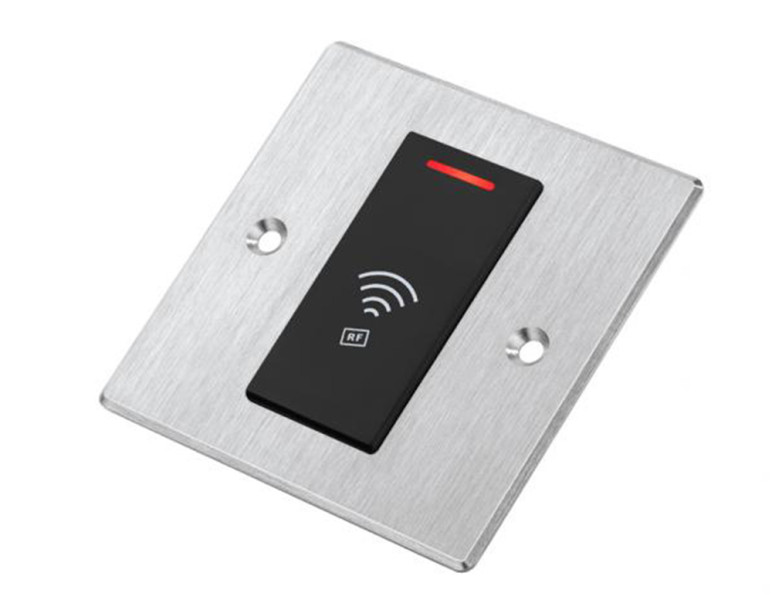

The SDC-86E EM is a standalone, built-in device for door access control using RFID chips operating at a frequency of 125 kHz.

The device activates a potential-free relay, making it suitable for unlocking various types of electronic locks and for controlling access via elevators.

Key features:

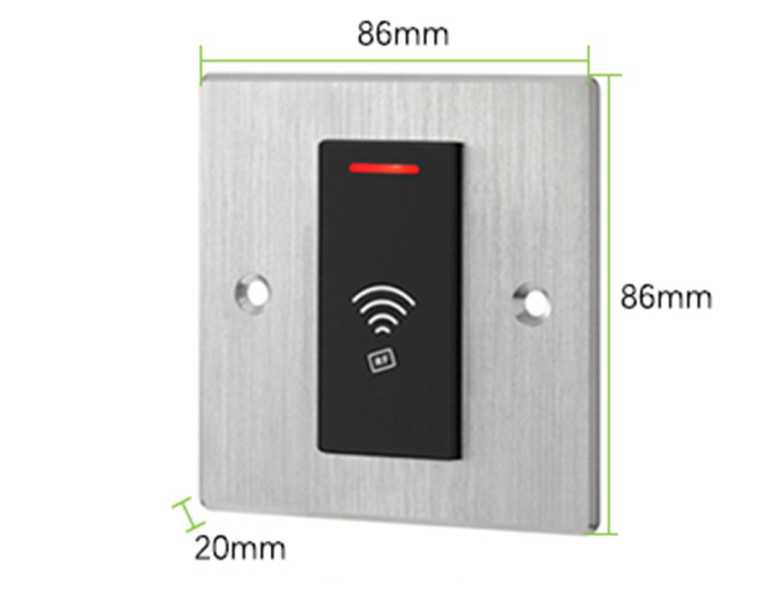

Compact housing with dimensions 86×86×20 mm, designed to cover a standard electrical box
Waterproof metal casing, rated IP68
Supports up to 10,000 users
Door unlocking via RFID chip
Powered by 12V DC ± 2V
User management via administrator cards (Add User, Delete User)
Compatible with TK4100, EM4200, and encoded T5577 RFID chips (125 kHz)
Potential-free relay output for connecting to an electronic lock

For further information or to request an offer, contact us at info@rfidspecialist.eu.
Our team of experts is ready to assist and answer any inquiries.

Are you an integrator or reseller? We offer special discounts tailored for you.

Price/item: 42,00 EUR (with vat 51,24 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3795

Quantity:

Total:

42,00 EUR

Total with vat:

51,24 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

The SDC-86E EM is a high-quality access control device designed for integration with electromagnetic locks.

Upon successful authentication, the relay contact is triggered, sending a signal to the electronic lock to unlock the door and grant entry.

Technical Specifications

Model: SDC-86E EM
Dimensions: 86×86×20 mm
Power Supply: 12V DC ± 2V
Frequency: 125 kHz
Supported RFID Chips: TK4100, EM4200, encoded T5577
Housing: Metal
Max Number of Users: 10,000
Relay Pulse Time: 0–99 seconds
Max Relay Load: 1A
Indicators: LED, Buzzer
Operating Temperature: -20°C to +60°C
Humidity: 0% to 95% (IP68 waterproof housing)
Reading Range: 2–5 cm
Operation Mode: Can be configured to operate as a Wiegand reader
