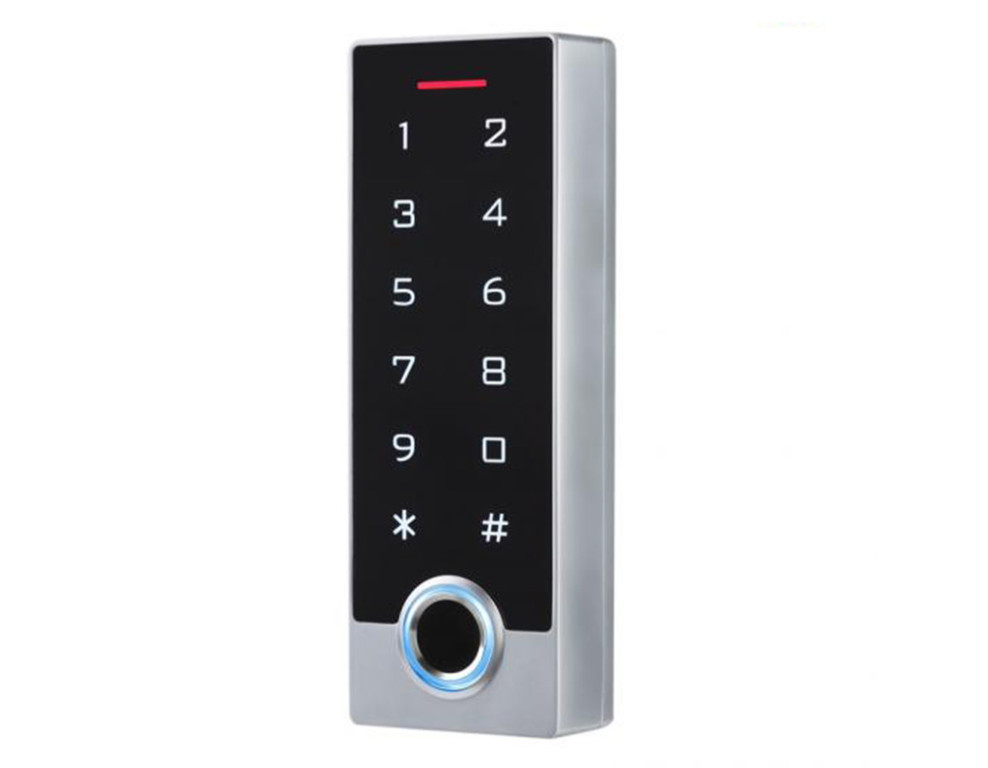

SDC-T2F MF Slim Access Control Device with Fingerprint, PIN Code or ISO 14443 A Chips
(Product ID: 3790)

The SDC-T2F MF is a standalone door access control device featuring a fingerprint reader, PIN code keypad, and RFID chip reader supporting ISO 14443A (Mifare Classic®).

Key features of this device include:

Slim housing: 47 × 135 × 23 mm
Waterproof metal casing, rated IP68
Supports up to 10,000 users and 600 fingerprints
Door unlocking via fingerprint, PIN code, or RFID chip
Elegant design with illuminated keypad
12–24V DC power supply
User management with administrator cards (Add User, Delete User)
Compatible with Mifare Classic and compatible chips (13.56 MHz, 4-byte ID)
Dry contact relay for connection to electronic locks

For further information or a quote, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your questions.

If you are an integrator or reseller, we offer special discounts.

Price/item: 85,00 EUR (with vat 103,70 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3790

Quantity:

Total:

85,00 EUR

Total with vat:

103,70 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

SDC-T2F MF is a high-quality device designed for unlocking electromagnetic locks and is suitable even for premium or high-end buildings.

Access can be granted via fingerprint, PIN code, or RFID chips supporting ISO14443 A (Mifare Classic®).

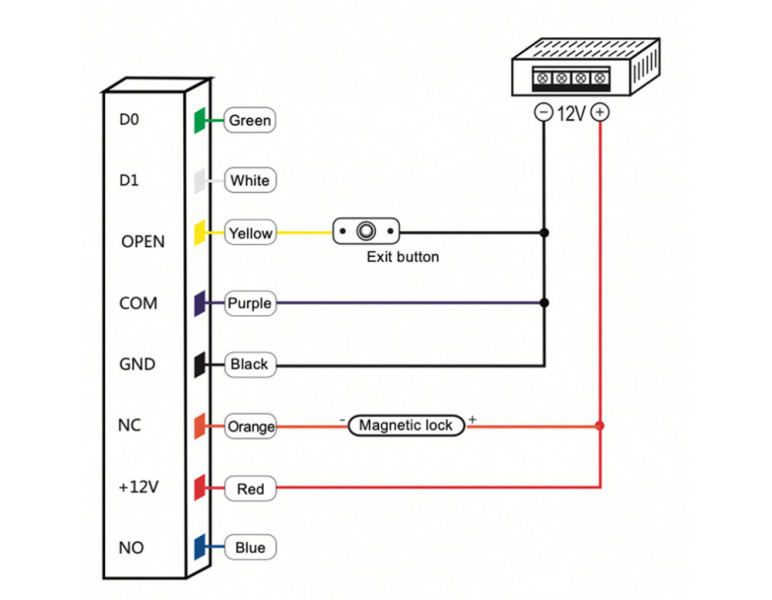

After successful authentication, the device triggers the relay switch, sending a pulse to the electronic lock, which then opens the door and allows entry.

The device can also be configured to function as a Wiegand 26 reader, making it compatible with standard controllers that support Wiegand input.

Technical Specifications

Model: SDC-T2F MF
Dimensions: 47 × 135 × 23 mm
Power Supply: 12–24V DC
Frequency: 13.56 MHz
Supported Chips: Mifare Classic and compatible chips with 4-byte ID
Housing: Metal
Maximum Users: 10,000 users, 600 fingerprints
PIN Code Length: 3–6 digits
Relay Pulse Duration: 0–99 seconds
Max Relay Load: 1A
Indicators: LED, buzzer
Operating Temperature: -40°C to 60°C
Humidity: 0%–95% (IP68 waterproof casing)
Reading Distance: 2–5 cm
Operating Mode: Can be configured as a Wiegand reader
Net Weight: 110 g
Gross Weight: 150 g
