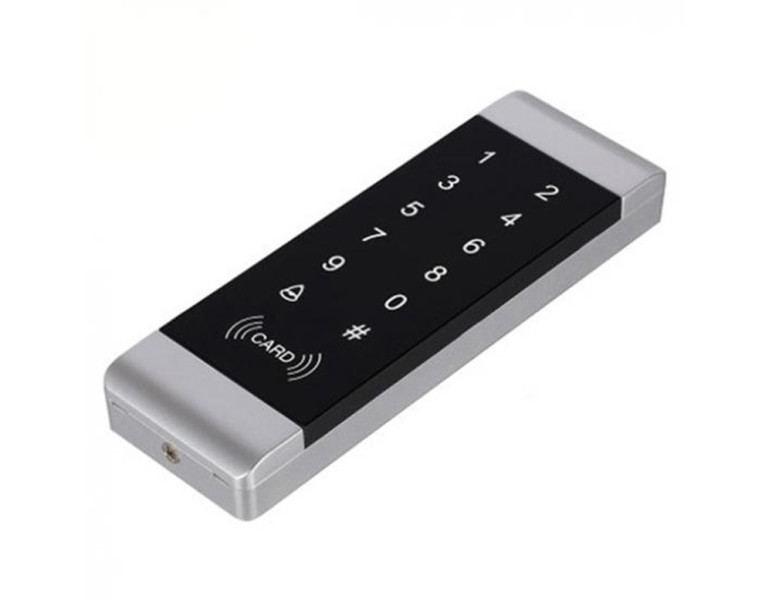

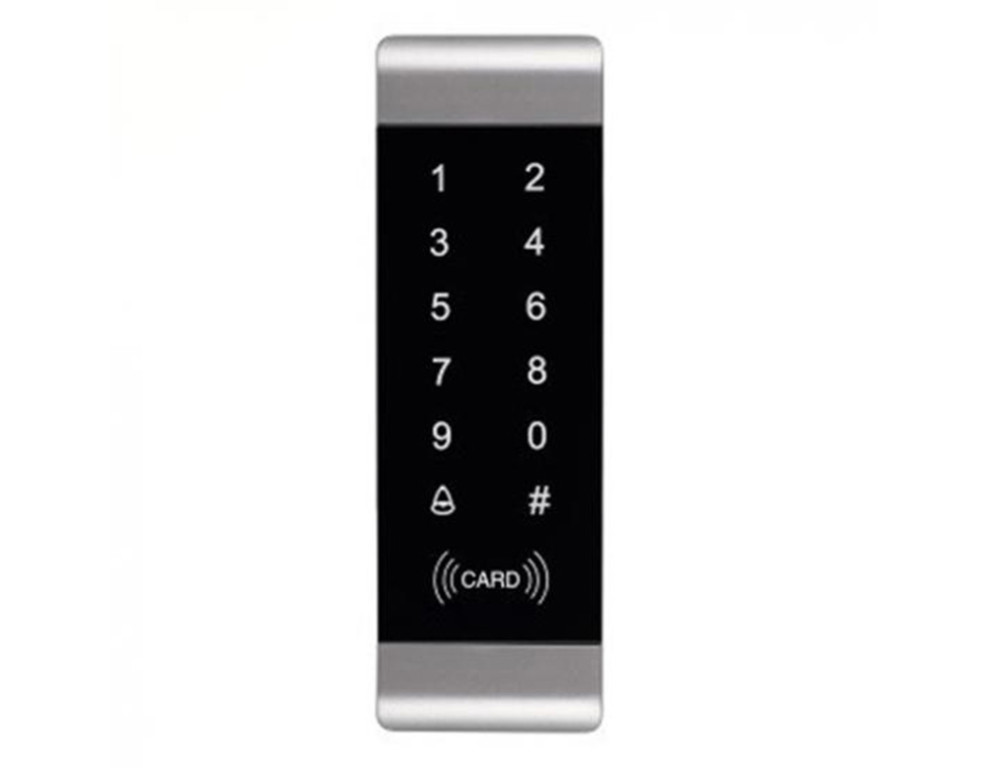

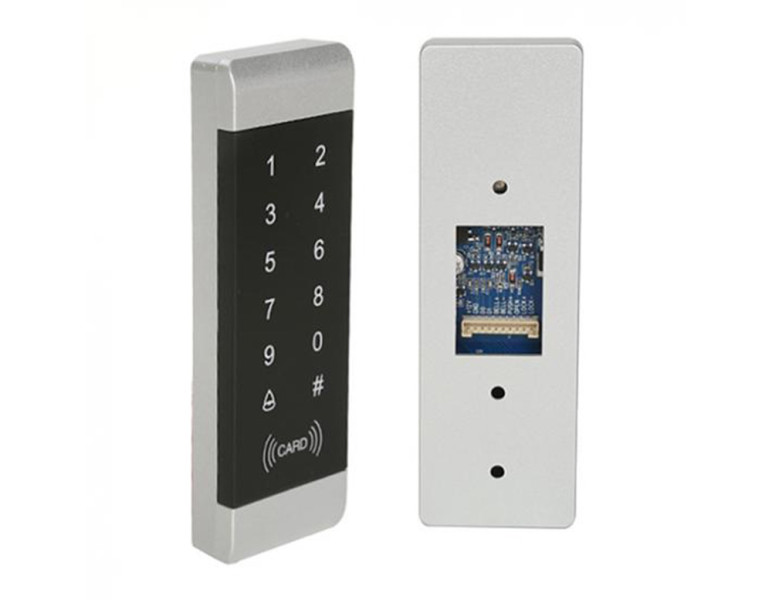

SDC-T2S6 MF Slim Access Control Device with Keypad and 13.56 MHz RFID
(Product ID: 3789)

The SDC-T2S6 MF is a standalone access control device featuring a PIN keypad and an RFID reader for chips operating at 13.56 MHz. Supported chip types include Mifare Classic and compatible 4-byte ID chips.

Key features of this device include:

Slim plastic housing: 45 × 140 × 17 mm, suitable for indoor use
Supports up to 1,000 users
Elegant design with illuminated keypad
12V DC ±10% power supply
User management via administrator cards (Add User, Delete User)
Suitable for Mifare Classic and compatible chips (13.56 MHz, 4-byte ID)
Dry contact relay for connection to electronic locks

For further information or a quote, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your questions.

If you are an integrator or reseller, we offer special discounts.

Price/item: 37,00 EUR (with vat 45,14 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3789

Quantity:

Total:

37,00 EUR

Total with vat:

45,14 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

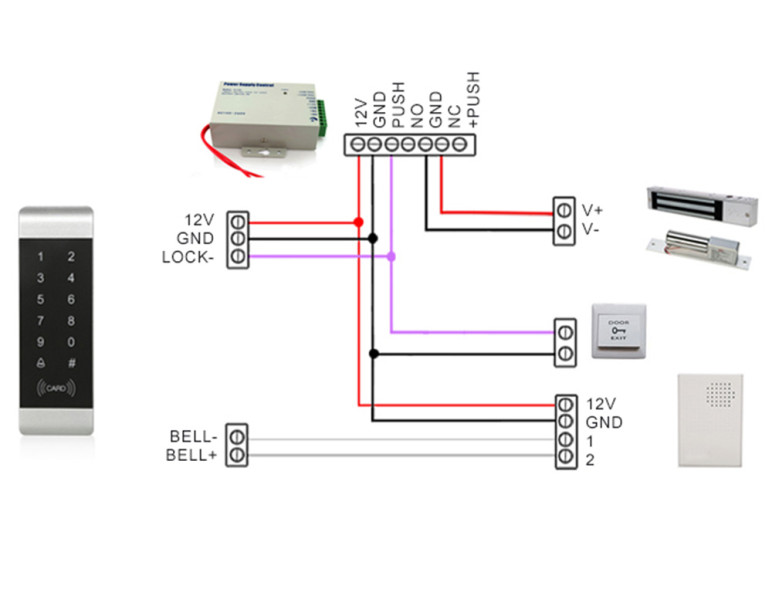

SDC-T2S6 MF is a reliable solution for unlocking electromagnetic locks.

Doors can be unlocked using a PIN code, an RFID chip, or a combination of both.

Upon successful authentication, the relay switch is activated, sending an impulse to the electronic lock, which opens the door and grants access.

The device can also be configured to function as a Wiegand 26 reader, making it compatible with standard controllers that support Wiegand readers.

Technical Specifications

Model: SDC-T2S6 M
Dimensions: 45 × 140 × 17 mm
Power Supply: 12V DC ±10%
Frequency: 13.56 MHz
Supported Chips: Mifare Classic and compatible (4-byte ID, ISO 1443 A)
Housing: Plastic, suitable for indoor use
Maximum Users: 1,000
PIN Code Length: 3–6 digits
Relay Pulse Duration: 0–99 seconds
Max Relay Load: 1A
Indicators: LED, buzzer
Operating Temperature: -10°C to 60°C
Humidity: 20%–80%
Reading Distance: 2–5 cm
Operating Mode: Can be configured as a Wiegand reader
Net Weight: 110 g
Gross Weight: 150 g
