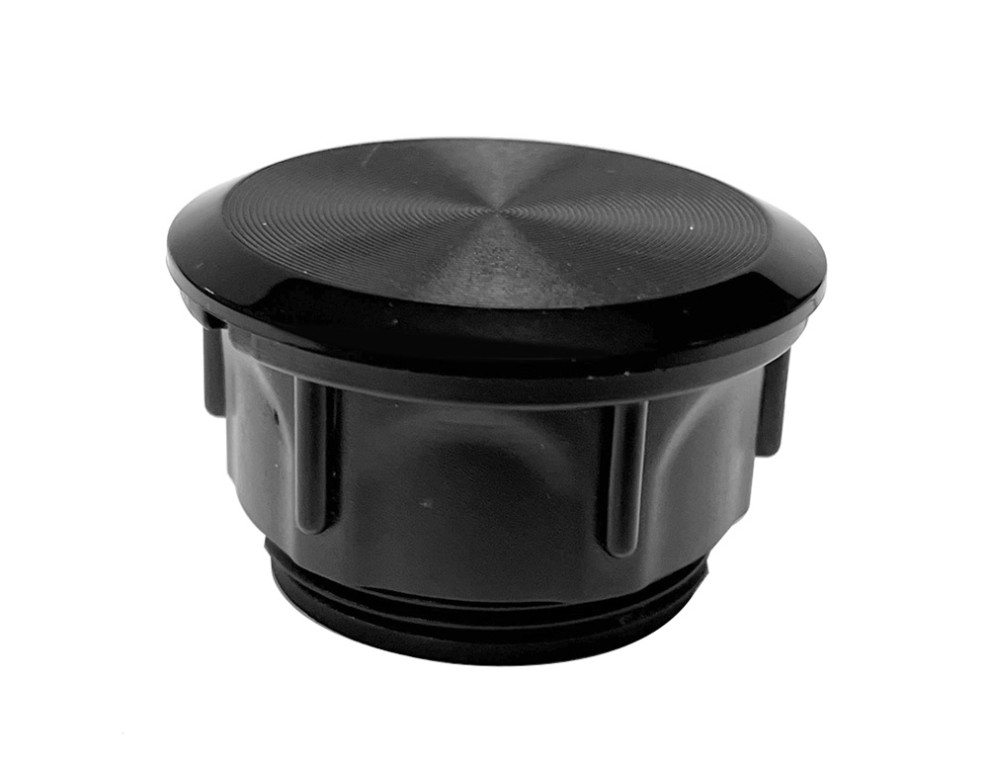

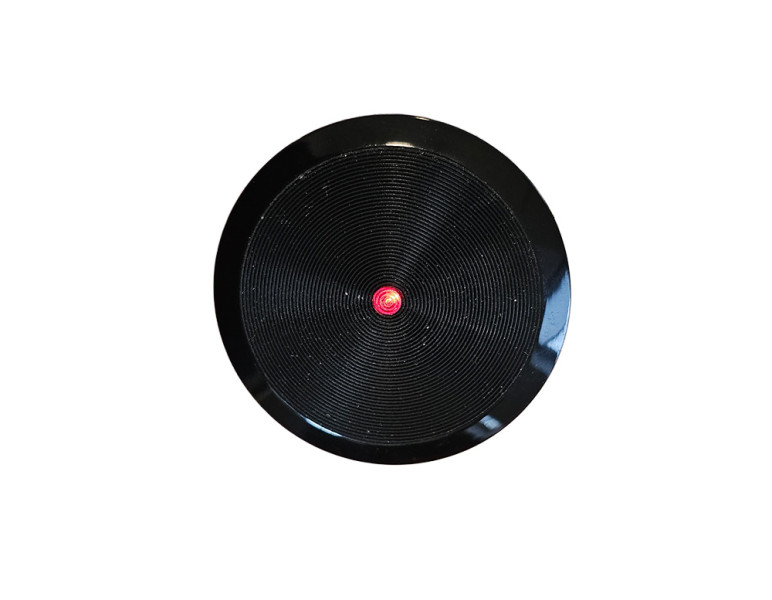

Flush-Mount Access Control Device for Contactless RFID Access

This embedded unit allows access control and door opening using contactless cards or key fobs.

A registered RFID chip triggers the relay for a defined time (1–99 seconds), sending a pulse to the electronic lock, enabling the door to open.

Operating at 125 kHz, it is compatible with EM4200, TK4100, programmed T5577, EM4102, H4100, and other similar chips.

Reading distance is between 3–6 cm. RFID cards, key fobs, wristbands, stickers, and other RFID media can be used for access.

Ideal for residential use, apartment buildings, or office environments.

The system supports up to 15,000 users, with the ability to transfer user data from one device to another.

Technical Specifications

Model: SDC-PRO150

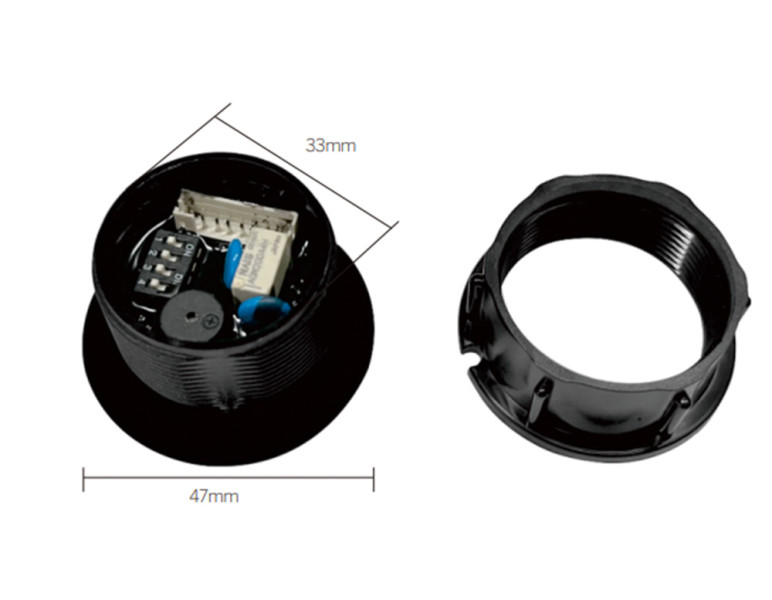

Dimensions: Outer diameter 47 mm, inner diameter 33 mm
Frequency: 125 kHz
Supported chips: EM4200, TK4100, programmed T5577, EM4102, etc.
Housing: Plastic, waterproof

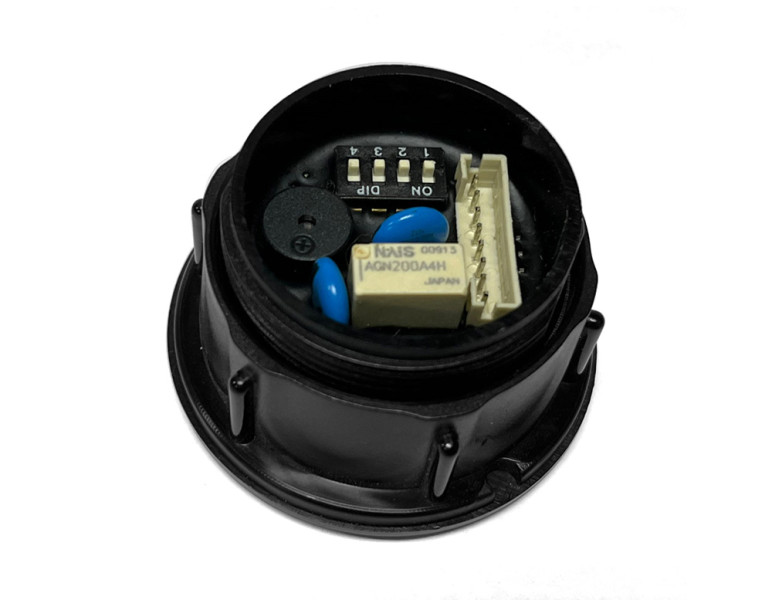

Operating mode: Standalone unit with built-in controller, RFID reader, and relay
Identification method: RFID chips
Maximum number of users: 15,000
Indicators: Buzzer
Operating temperature: -20°C to 60°C
Humidity: 0% to 95%
Reading range: 3–6 cm
