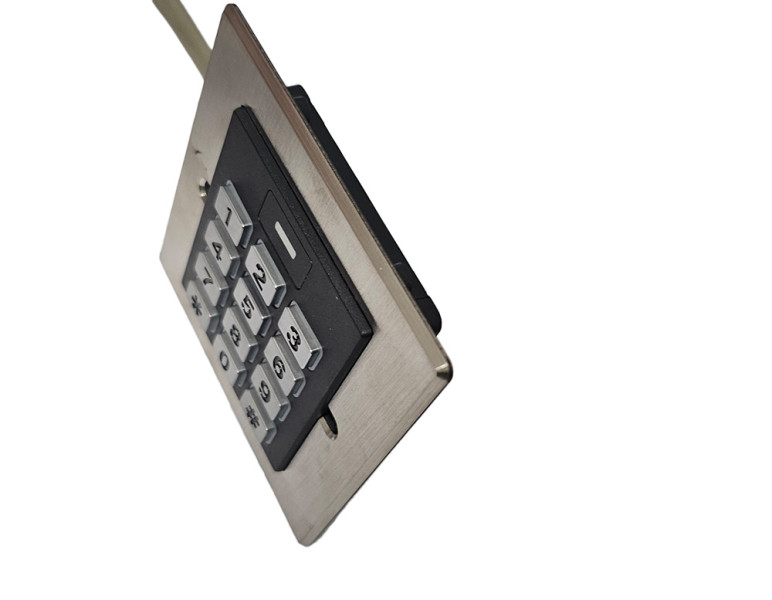

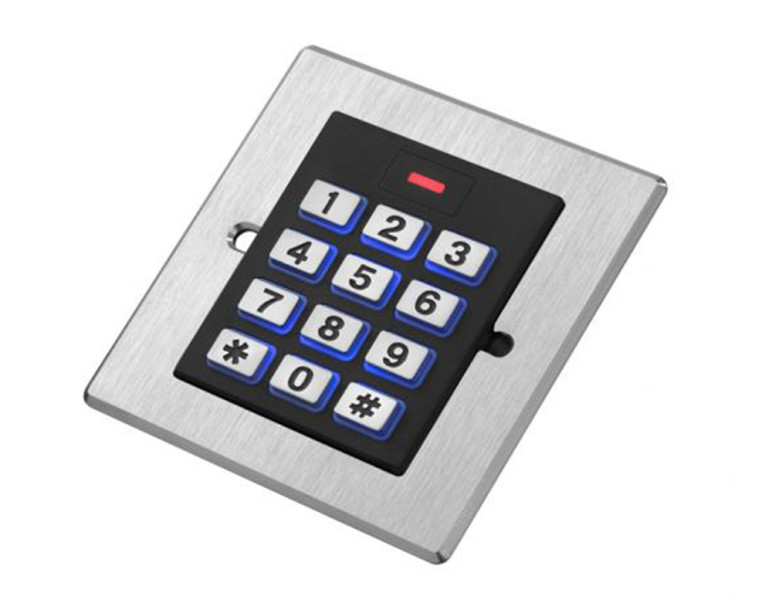

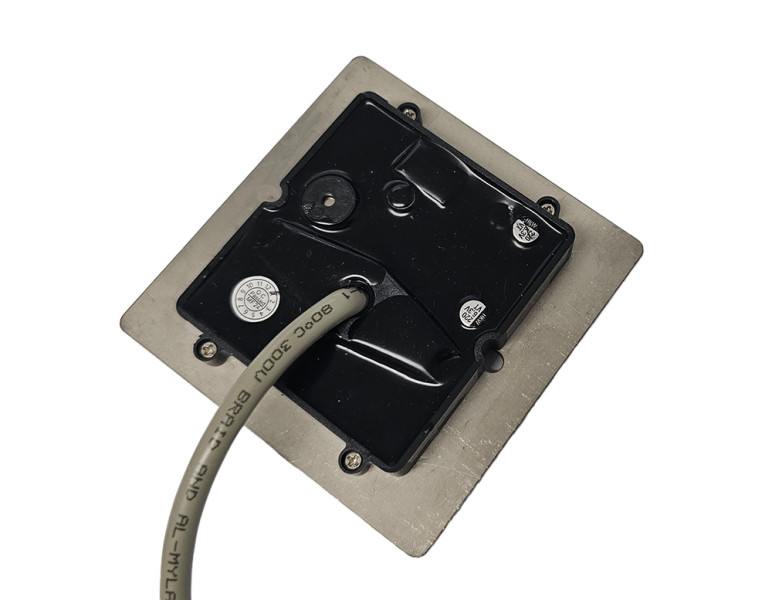

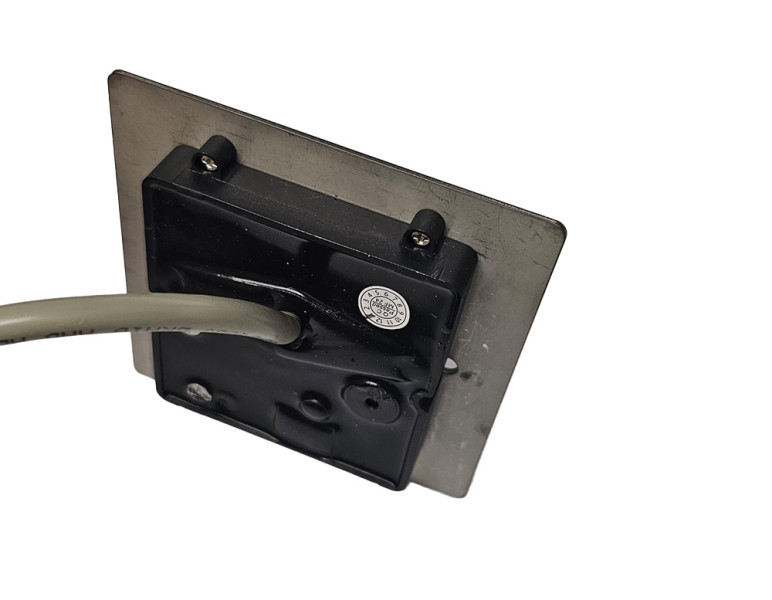

SDC-86EK MF Built-in Access Control with PIN Code and RFID 13.56 MHz
(Product ID: 3798)

The SDC-86EK MF is a built-in standalone device designed for door opening via PIN code and Mifare Classic® RFID chips operating at a frequency of 13.56 MHz.

The device activates a relay and can be used to open various electronic locks.

Key features of this device:

Housing dimensions: 86×86×20 mm, covering standard electrical boxes

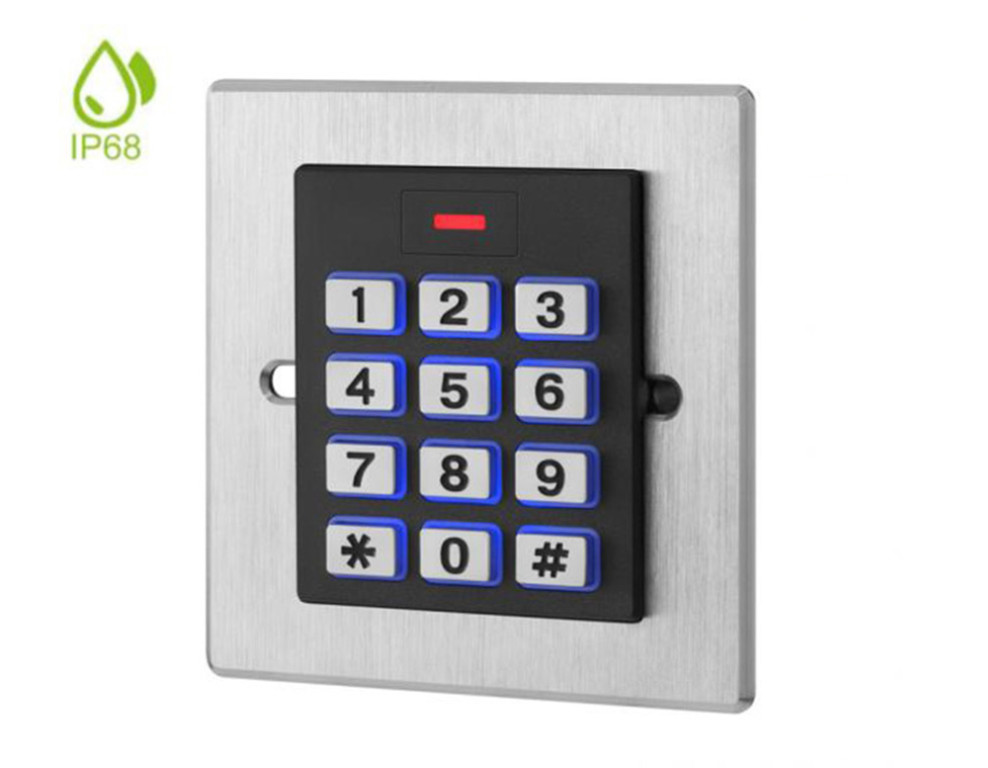

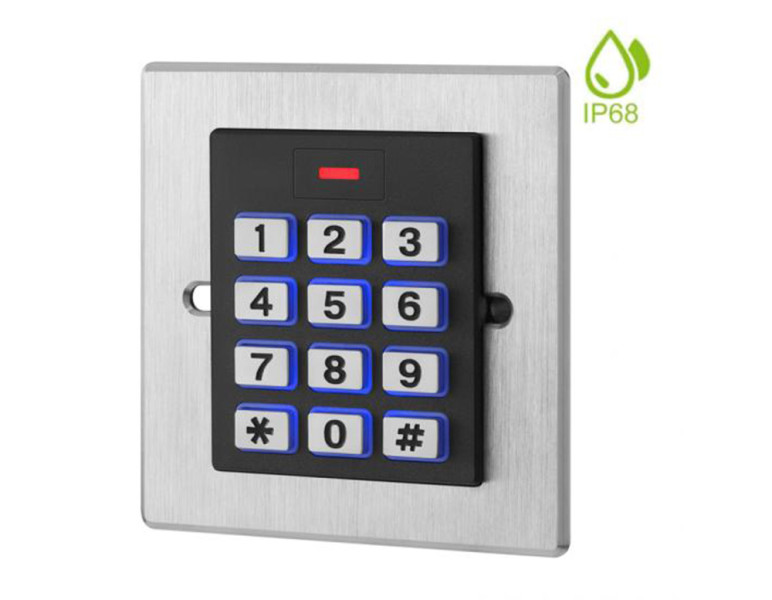

Waterproof metal housing, IP68 rated
Capacity for up to 2,000 users
Door opening via RFID chip or PIN code
12V DC power supply
User management through administrative cards (Add User, Delete User)
Compatible with Mifare Classic RFID chips operating at 13.56 MHz
Voltage-free relay for connecting electronic locks

For further information or offer, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your queries.

If you are an integrator or reseller, we offer special discounts.

Price/item: 51,00 EUR (with vat 62,22 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3798

Quantity:

Total:

51,00 EUR

Total with vat:

62,22 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

The SDC-86EK MF is a high-quality device specifically designed for opening electromagnetic locks and suitable for built-in installation.

Upon successful authentication, the relay switch is activated, sending an impulse to the electronic lock, opening the door and enabling access to the facility.

Technical Specifications:

Model: SDC-86EK MF
Dimensions: 86×86×20 mm
Power Supply: 12V DC
Access Method: PIN code or RFID chip
Frequency: 13.56 MHz
Supported Chips: Mifare Classic® and compatible chips (F08)
Housing: Metal
Maximum Users: 2,000 users
Relay Impulse Duration: 0-99 seconds
Maximum Relay Load: 3A
Indicators: LED, buzzer
Operating Temperature: -10°C to 60°C
Humidity: 0% to 95% (IP68 waterproof housing)
Reader Range: 2-5 cm
Operation Mode: Can be configured to operate as a Wiegand reader
