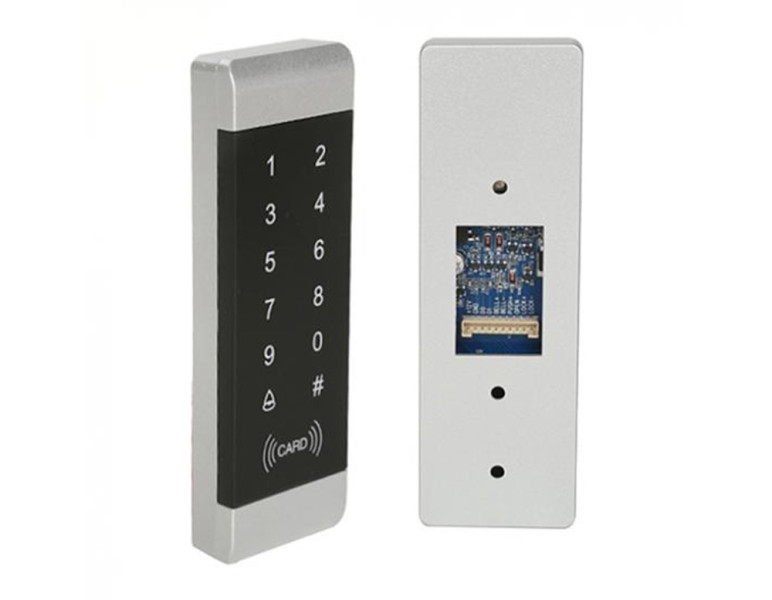

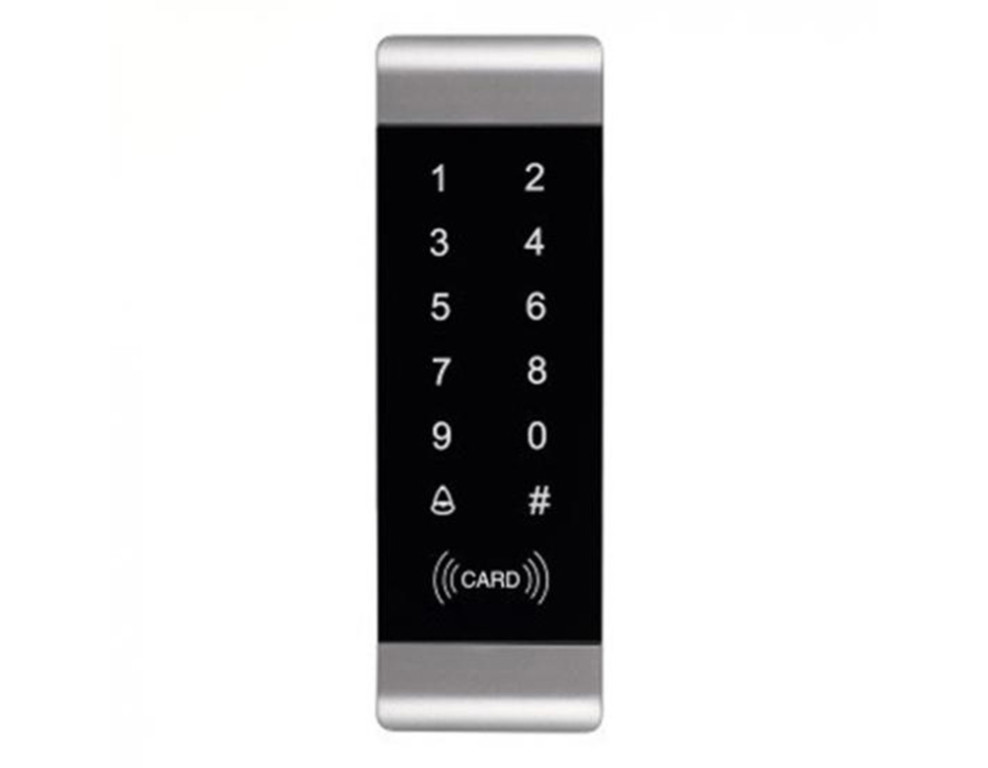

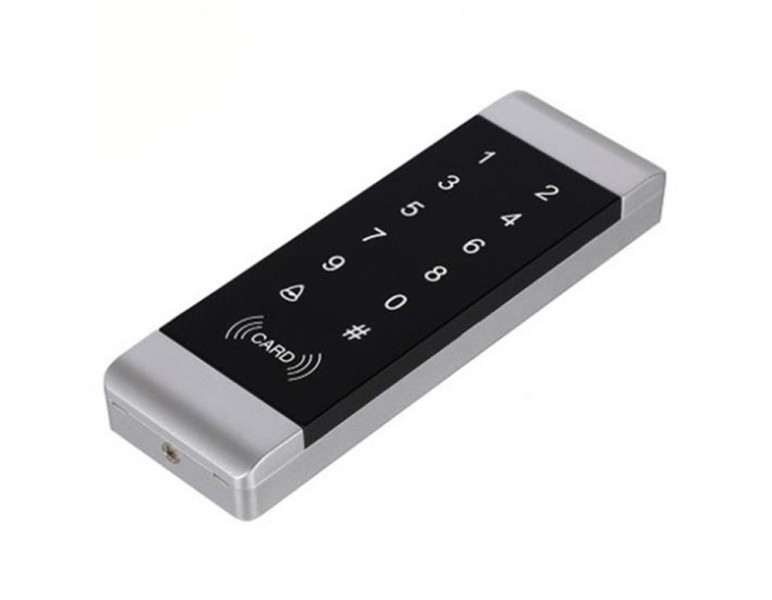

SDC-T2S6 EM Slim Access Control Unit with Keypad and 125 kHz RFID
(Product ID: 3788)

The SDC-T2S6 EM is a standalone access control unit equipped with a PIN keypad and an RFID chip reader operating at a frequency of 125 kHz.
It supports TK4100, EM4200 and compatible legacy chips, as well as encoded T5577 chips.

Key features:

Slim plastic housing, measuring 45x140×17 mm
Supports up to 1,000 users
Elegant design with illuminated keypad
Powered by 12V DC ±10%
User management via administrator cards (Add User, Delete User)
Compatible with RFID chips operating at 125 kHz (TK4100, EM4200, legacy types, and T5577)

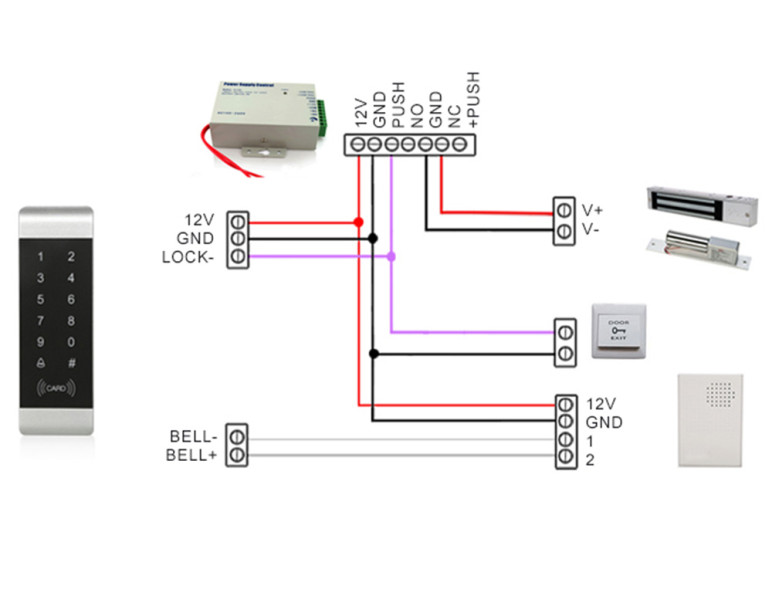

Potential-free relay for connection to electronic locks

For further information or to request an offer, contact us at info@rfidspecialist.eu.
Our team of experts is ready to assist and answer any inquiries.

Are you an integrator or reseller? We offer special pricing tailored for you.

Price/item: 32,00 EUR (with vat 39,04 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3788

Quantity:

Total:

32,00 EUR

Total with vat:

39,04 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

The SDC-T2S6 EM is a high-quality access control solution designed for controlling electromagnetic locks. It is suitable even for premium installations where design and reliability are essential.

Doors can be unlocked via PIN code, RFID chip, or a combination of both.
After successful authentication, the relay contact is triggered, sending an impulse to the lock to unlock the door and grant access.

The device can also be configured to work as a Wiegand 26 reader, compatible with standard controllers that support the Wiegand protocol.

Technical Specifications

Model: SDC-T2S6 EM

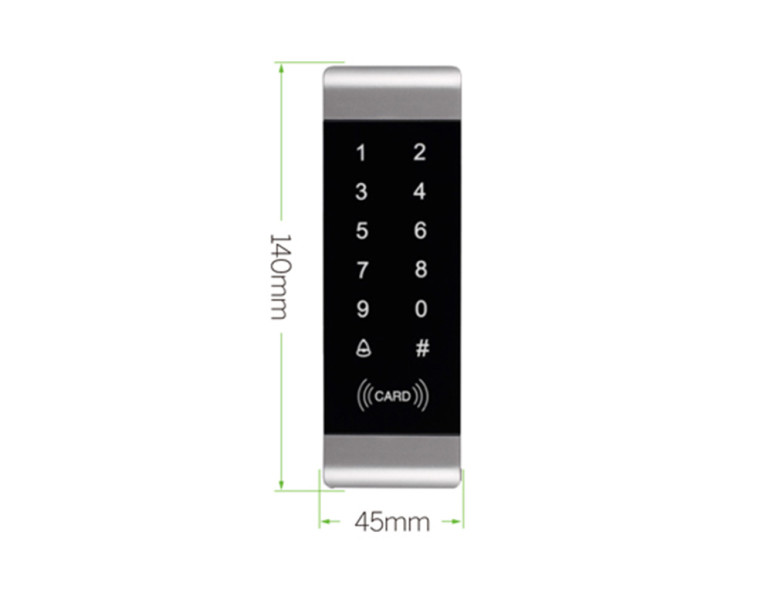

Dimensions: 45×140x17 mm
Power Supply: 12V DC ±10%
Frequency: 125 kHz
Supported RFID Chips: TK4100, EM4200, legacy chips, and encoded T5577
Housing Material: Plastic
Max Number of Users: 1,000
PIN Code Length: 3–6 digits
Relay Pulse Duration: 0–99 seconds
Max Relay Load: 1A
Indicators: LED, Buzzer
Operating Temperature: -10°C to +60°C
Humidity: 20% to 80%
Reading Range: 2–5 cm
Operation Mode: Configurable as a Wiegand reader
Net Weight: 110 g
Gross Weight: 150 g
