Access Control Device with Fingerprint PIN Code or RFID Chip and WiFi Connectivity
(Product ID: 3845)

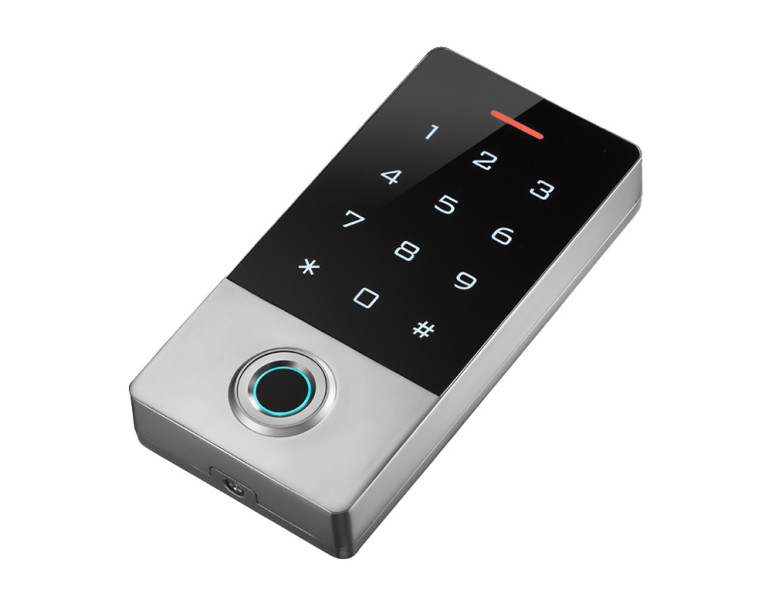

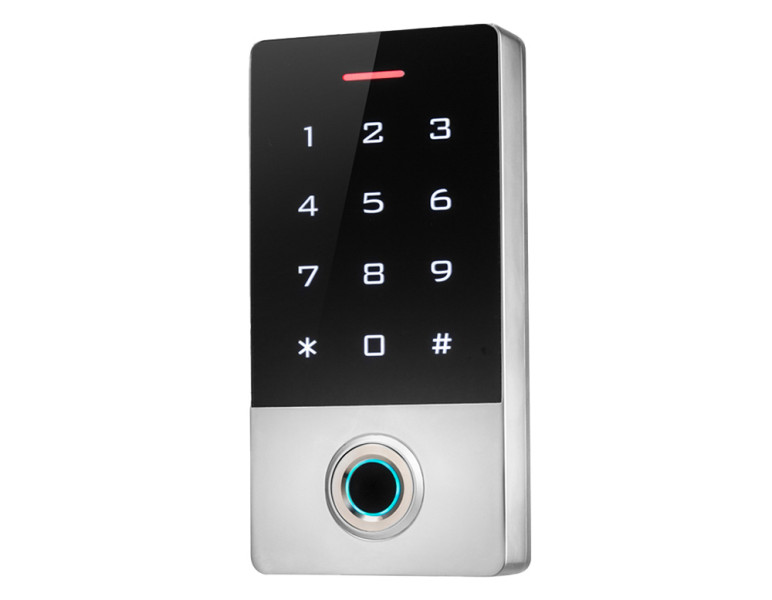

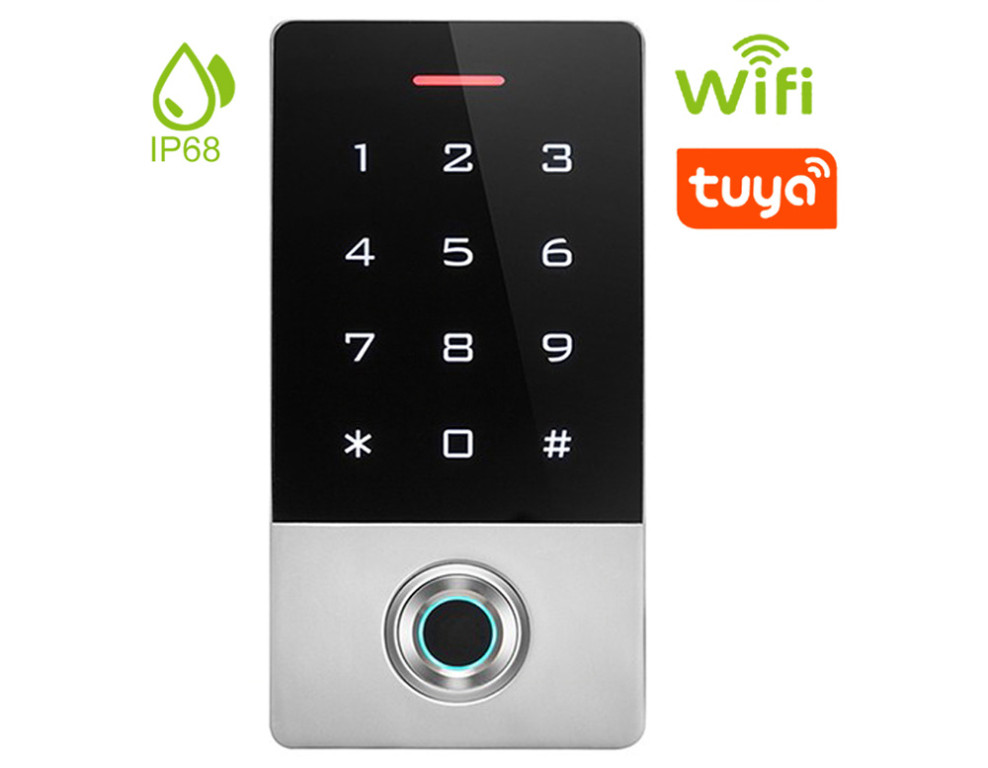

The SDC-T1F-EM-WIFI is a standalone access control device for door entry using fingerprint recognition, PIN code, RFID chip, or via a mobile application over a WiFi network.

Key Features:

Wide and durable housing: 70 × 139 × 20 mm
IP68 waterproof metal enclosure
Door unlocking via Tuya mobile app over WiFi
Supports up to 10,000 users, including 600 fingerprints
Unlock via fingerprint, PIN code, or RFID chip
Elegant design with illuminated keypad
12–24V DC power supply
User management via administrator cards (Add User, Delete User)
Compatible with RFID chip types: TK4100, EM4200, EM4100

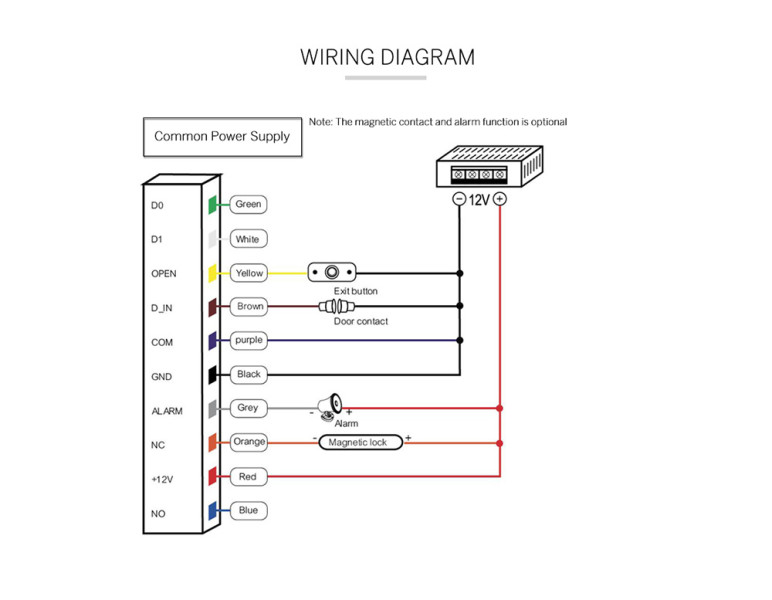

Voltage-free relay for connecting to an electronic lock

For further information or to request a quote, contact us at info@rfidspecialist.eu.
Our expert team is ready to help with any questions you may have.

If you are an integrator or reseller, we offer special discount packages.

Price/item: 99,00 EUR (with vat 120,78 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3845

Quantity:

Total:

99,00 EUR

Total with vat:

120,78 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

The SDC-T1F-EM-WIFI is a high-quality device for controlling electromagnetic locks, making it suitable even for high-end and prestigious installations.

Upon successful authentication, a signal is sent via the relay switch, triggering the electronic lock to open the door and grant access.

Doors can be unlocked using a fingerprint, PIN code, RFID chip, or mobile app.

The device can also be configured to operate as a reader only, using the Wiegand 26 protocol, making it compatible with standard controllers that support Wiegand readers.

Technical Specifications

Model: SDC-T1F-EM-WIFI

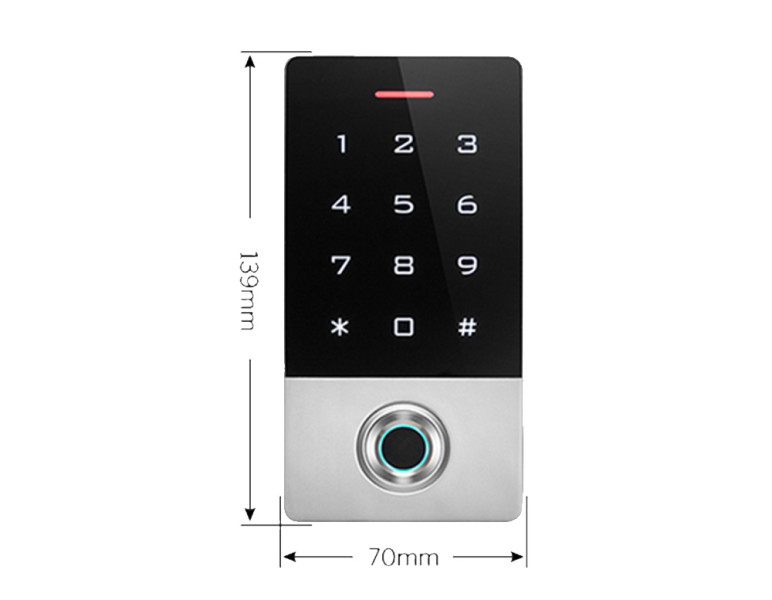

Dimensions: 70 × 139 × 20 mm
Power Supply: 12–24V DC
Frequency: 125 kHz
Supported RFID Chips: TK4100, EM4200
Housing: Metal (IP68 Waterproof)
Max Users: 10,000 (including 600 fingerprints)
PIN Code Length: 3–6 digits
Relay Pulse Time: 0–99 seconds
Max Relay Load: 1A
Indicators: LED & Buzzer
Operating Temperature: -40°C to 60°C
Humidity: 0% to 95% (non-condensing)
Reading Range: 2–5 cm
Reader Mode: Configurable as Wiegand 26 reader
Net Weight: 472 g
Gross Weight: 581 g
