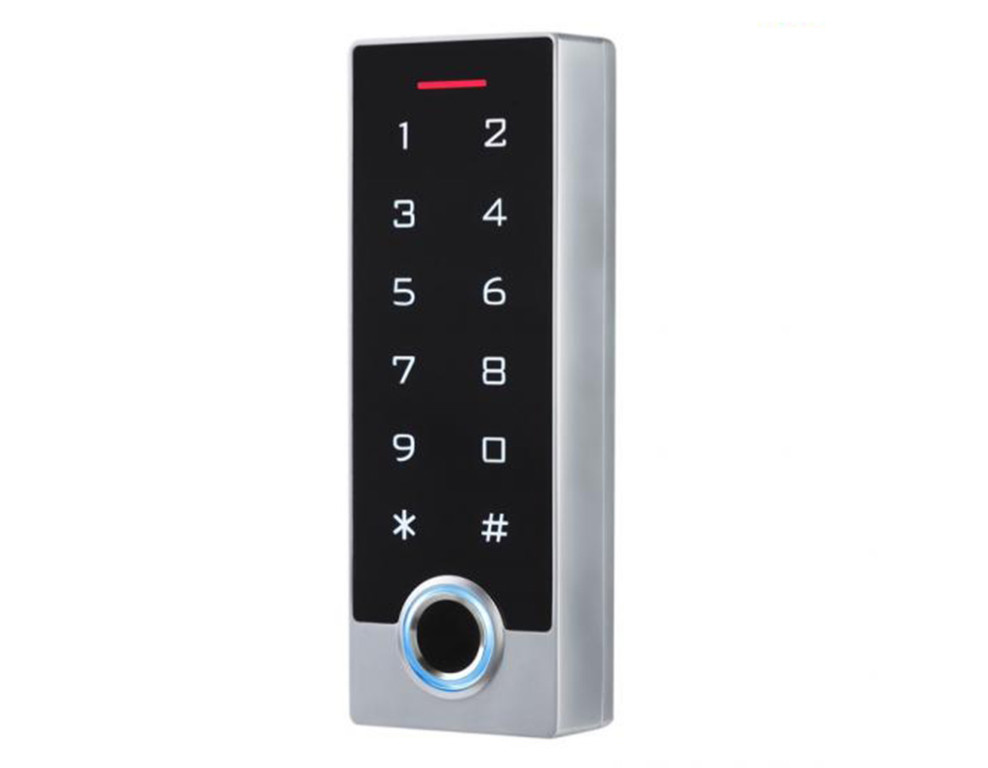

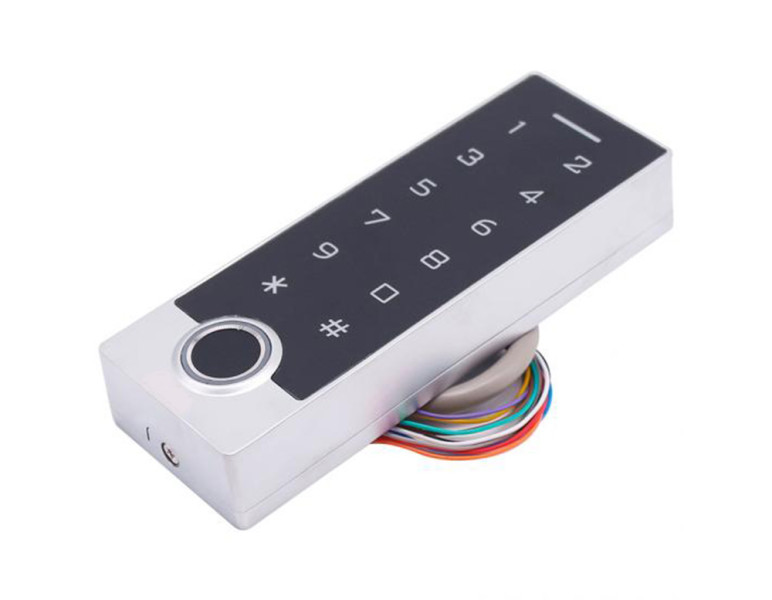

SDC-T2F EM Slim Access Control Device with Fingerprint, PIN Code or RFID Chip
(Product ID: 3791)

The SDC-T2F EM is a standalone door access control device that supports authentication via fingerprint, PIN code, or RFID chip.

Key features of this device include:

Slim housing dimensions: 47 × 135 × 23 mm
Waterproof metal casing, rated IP68
Supports up to 10,000 users and 600 fingerprints
Door unlocking via fingerprint, PIN code, or RFID chip
Elegant design with illuminated keypad
12–24V DC power supply
User management via administrator cards (Add User, Delete User)
Compatible with TK4100, EM4200, and encoded T5577 RFID chips (125 kHz)
Dry contact relay for connection to an electronic lock

For further information or a quote, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your questions.

If you are an integrator or reseller, we offer special discounts.

Price/item: 80,00 EUR (with vat 97,60 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3791

Quantity:

Total:

80,00 EUR

Total with vat:

97,60 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

SDC-T2F EM is a high-quality device suitable for unlocking electromagnetic locks and is ideal for use in even the most prestigious buildings.

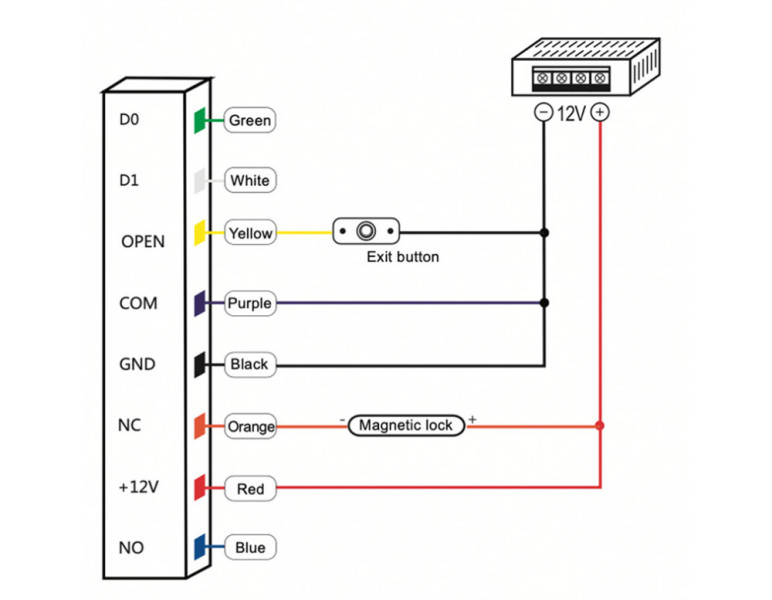

Upon successful authentication, the relay switch is triggered, sending an impulse to the electronic lock to open the door and grant access.

You can unlock the door using your fingerprint, PIN code, or RFID chip.

The device can also be configured to operate as a Wiegand reader (26-bit protocol), making it compatible with standard access controllers that support Wiegand input.

Technical Specifications

Model: SDC-T2F EM
Dimensions: 47 × 135 × 23 mm
Power Supply: 12V DC
Frequency: 125 kHz
Supported Chips: TK4100, EM4200, encoded T5577
Housing: Metal
Max Users: 10,000
Fingerprint Capacity: 600 fingerprints
PIN Code Length: 3–6 digits
Relay Pulse Duration: 0–99 seconds
Max Relay Load: 1A
Indicators: LED, buzzer
Operating Temperature: -40°C to 60°C
Humidity: 0%–95% (IP68 waterproof)
Reading Distance: 2–5 cm
Function Mode: Can be configured to work as a Wiegand reader
Net Weight: 110 g
Gross Weight: 150 g
