SDC-86E MF Flush-Mount Standalone Access Control Device for Mifare Classic Chips
(Product ID: 3794)

SDC-86E MF – Flush-Mount Standalone Access Control Device for Mifare Classic® Chips

The SDC-86E MF is a flush-mount standalone device for door access control using Mifare Classic® RFID chips operating at 13.56 MHz.

The device triggers a dry-contact relay and can be used to control various electronic locks or elevator access systems.

Key features of this device include:

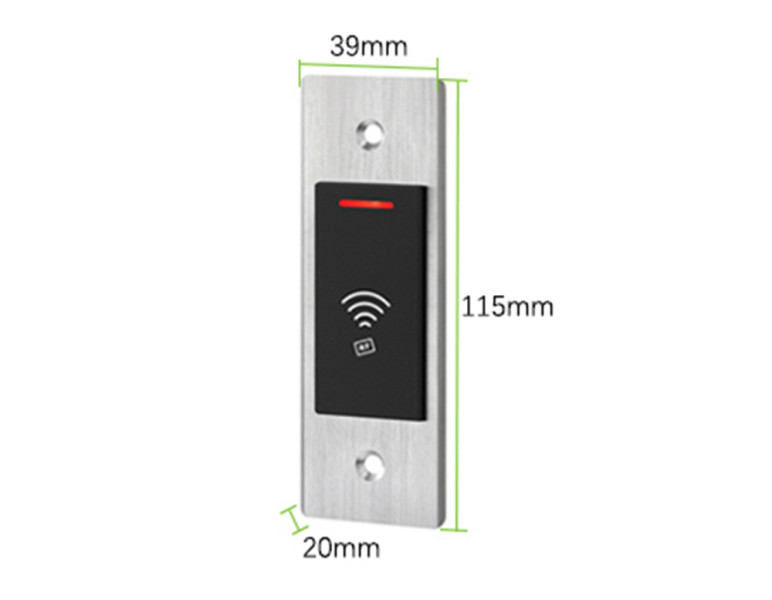

Slim housing: 39 × 115 × 20 mm

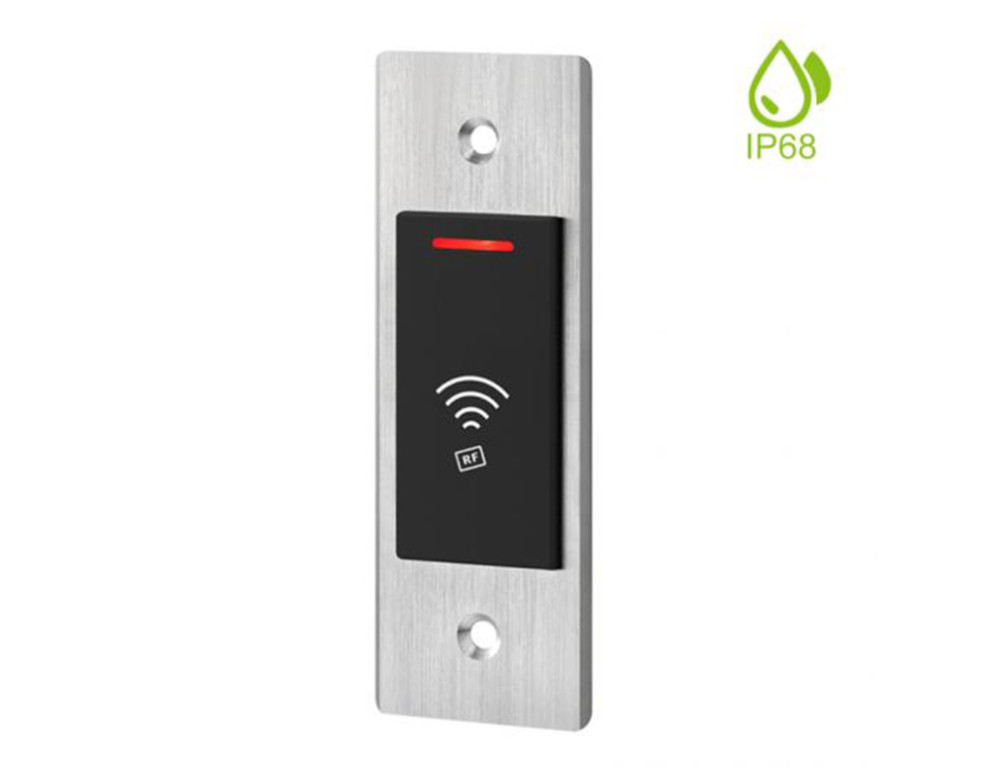

Waterproof metal casing, rated IP68
Supports up to 10,000 users
Unlocking via RFID chip
Elegant design with illuminated keypad
12V ± 2V DC power supply
User management with administrator cards (Add User, Delete User)
Compatible with Mifare Classic® chips operating at 13.56 MHz
Dry contact relay for connecting to electronic locks

For further information or a quote, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your questions.

If you are an integrator or reseller, we offer special discounts.

Price/item: 41,00 EUR (with vat 50,02 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3794

Quantity:

Total:

41,00 EUR

Total with vat:

50,02 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

SDC-86E MF is a high-quality device for unlocking electromagnetic locks and is designed for flush mounting.

Upon successful authentication, the relay switch is activated, sending a pulse to the electronic lock, which opens the door and allows access.

Technical Specifications

Model: SDC-86E MF
Dimensions: 39 × 115 × 20 mm
Power Supply: 12V ± 2V DC
Frequency: 13.56 MHz
Supported Chips: Mifare Classic® and compatible chips (e.g., F08)
Housing: Metal
Maximum Users: 10,000
Relay Pulse Duration: 0–99 seconds
Max Relay Load: 1A
Indicators: LED, buzzer
Operating Temperature: -20°C to 60°C
