Secure Bluetooth NFC Reader SDK Kit with ACR1255U-J1
(Product ID: 3297)

NFC KIT FOR
DEVELOPERS
Development tools for NFC Bluetooth® reader ACR1255U-J1. Collection of PC/SC compliant sample codes for Java, MS Visual Basic .NET 2013, MS Visual C# .NET 2013 and MS Visual C++ .NET. The SDK is designed to help software developers create NFC applications and it supports different OS systems like Windows, Linux, Mac, Android.
Price/item: 212,00 EUR (with vat 258,64 EUR)
Status: In stock
Dispatching time: 1-3 days
Product ID: 3297

Quantity:

Total:
212,00 EUR

Total with vat:
258,64 EUR
Add to cart
Do you need print or other specific requirements?
Send inquiry



INFO

ACR1255U-J1 NFC Secure Bluetooth® NFC Reader complies with ISO 14443 Type A and B, MIFARE®, FeliCa®, and most NFC media and devices, including ISO 18092.

The Bluetooth RFID ACR1255U-J1 is ideal for use in many NFC / RFID solutions.

The ACR1255U-J1 comes with two interfaces: Bluetooth Smart (also known as Bluetooth Low Energy or BLE) for wireless connection to a PC, mobile phone, tablet or other device, and a USB port for cable connection. This NFC reader writes and reads up to 424 Kbps.

ACR1255U-J1 connects securely and wirelessly to any device running Android ™ 4.3 and higher, iOS 5.0 and higher, Windows® 7 and higher, and Mac OS® 10.7 and higher via Bluetooth technology (protected by AES-128 encryption) .

If ACR1255U-J1 is connected to a PC, drivers must be installed (works as PC / SC and CCID device). Windows®, Linux®, and Mac OS® supported.

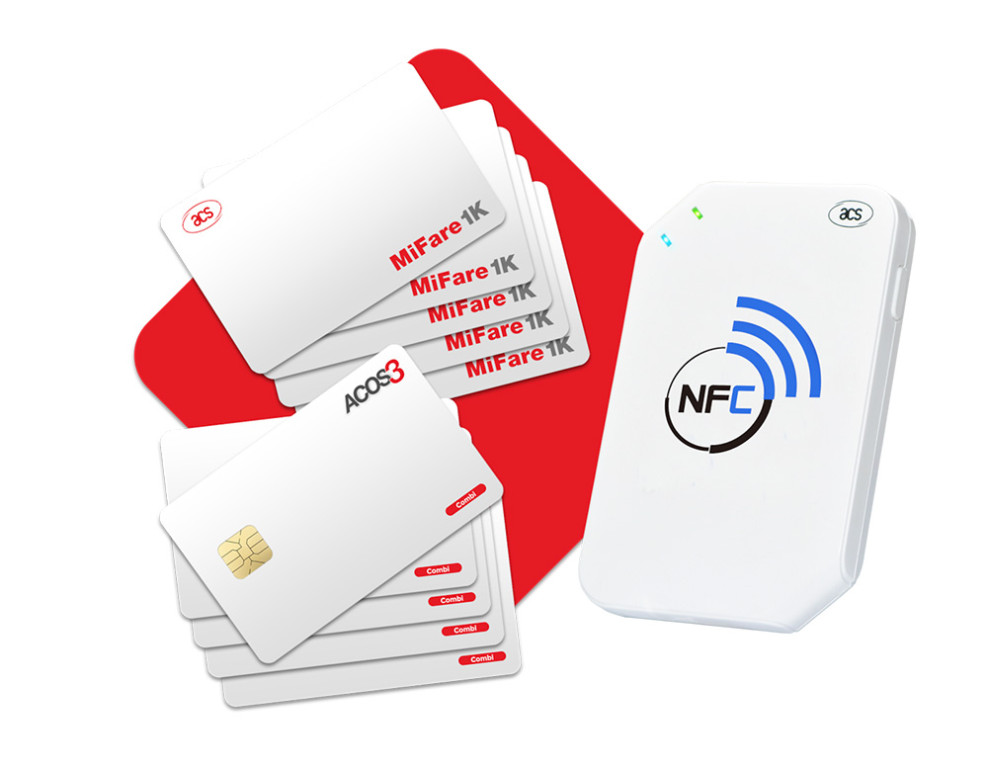

ACS Secure Bluetooth® NFC Reader Software Development Kit contains:

1 x ACR1255U-J1 ACS Secure Bluetooth® NFC Reader

Test Card(s)/ Token(s)
5 x ACOS3 Full-Sized Contactless Cards
5 x MIFARE® 1K Cards

Software Installer
ACS Smart Card and Reader Tool
Enables the user to perform smart card reader and card-related commands
Tools & Utilities
QuickView
Checks for proper driver installation
PCSC Learning Tool
Shows the use of the PC/SC API's step-by-step and the parameters that need to be used
Script Tool 5
Allows the user to communicate with a smart card by using script command files
Sample codes
Demonstrates basic commands used to communicate with the cards and readers
Available in the following programming languages:
Java (x86 / x64)
MS Visual Basic .NET 2013
MS Visual C# .NET 2013
MS Visual C++ .NET 2013 (x86 / x64)
ACS Smart Card Reader Driver
Reference Manuals
SDK Operating System Support
Windows® 7*
Windows® 8.1*
Windows® 10

(*)Need to purchase a Bluetooth® dongle separately
