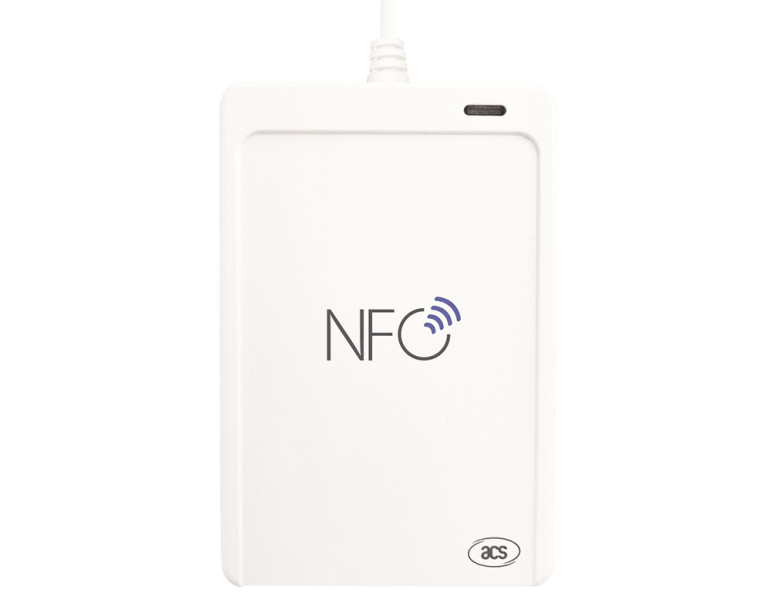

The ACR1552U reader is a successor to the ACR1252U and differs from its predecessor by also supporting the ISO 15693 protocol, making it suitable for use with chips like the ICODE SLIX 2.
The ACR1552U can operate in three modes:

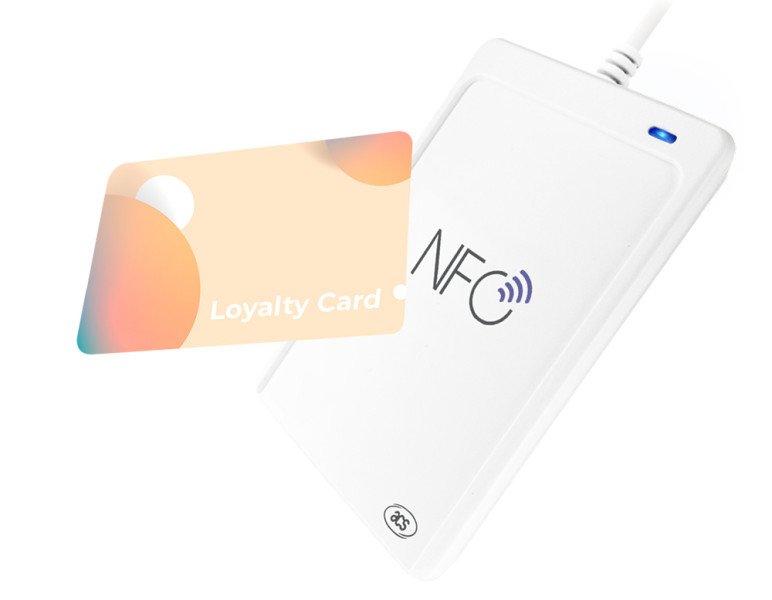

- as a contactless chip card reader/writer, compatible with generic third-party applications (GoToTags, NFC Tools…),
- as a card emulator, meaning that the reader can behave like a standard contactless NFC card,

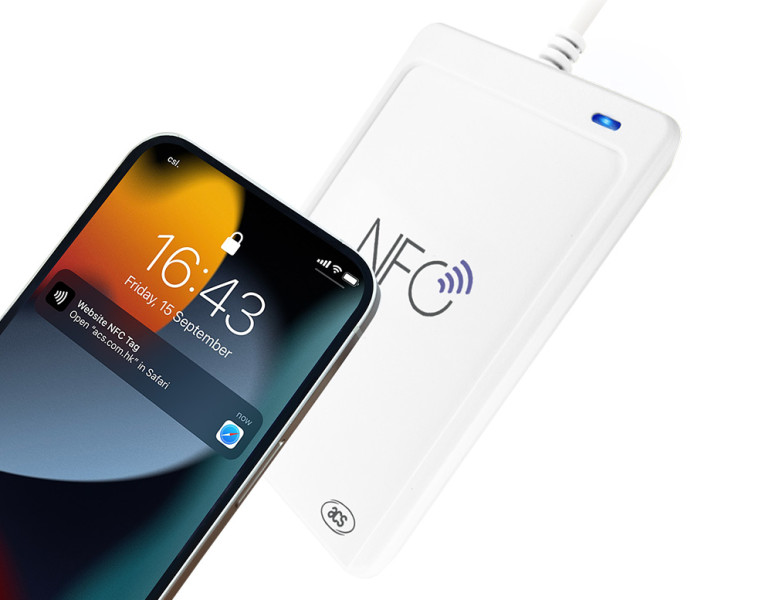

- as a peer-to-peer device, allowing communication with other devices, such as mobile phones, NFC tablets, etc.
This NFC reader can also be used to read the ID code of NFC chips, and the software is available here:
https://www.acs.com.hk/download-driver-unified/13504/Keyboard-Configuration-Tool-V100-signed-20231115.zip
The reader includes the option to insert a SAM card, which encrypts communication and enhances the security of contactless transactions.
The ACR1552U USB NFC Reader IV is compatible with major operating systems such as Windows®, Linux®, macOS, and Android™.
FIDO Support (Fast IDentity Online)
The ACR1552U USB NFC Reader III also supports FIDO (Fast IDentity Online) authentication protocols, enabling compatibility with FIDO-supported devices like PocketKey and YubiKey. This feature allows secure, passwordless login and strong two-factor authentication for online services. Users can authenticate by simply tapping their FIDO-enabled NFC device on the reader. Integrating FIDO support enhances the security of online transactions and access control systems, making the ACR1552U an ideal choice for e-Government, banking, e-healthcare, network security, and other applications requiring a high level of security.
Technical Specifications
Manufacturer: Advanced Card Systems Ltd.
Product Name: ACR1552U
Operating Frequency: 13.56 MHz
RF Protocol: ISO 14443 Type A and B, MIFARE® cards, FeliCa, ISO 18092 NFC, and ISO 15693
Reader Type: Desktop
Reading Distance: up to 7 cm
Built-in two-color LED and audible buzzer
Interface: USB or USB-C
Reader Dimensions: 98.0 mm (L) x 65.0 mm (W) x 12.8 mm (H)
Package Dimensions: 205 mm (L) x 93 mm (W) x 26 mm (H)
Reader Weight: 81 g
Package Weight: 106 g
Customs Tariff Code (H.S.): 8471 90 00 00
Operating Temperature: 0°C to 60°C, 90% RH
Power Supply: Standard USB power (5V 500mA)
Software: not included (documentation and drivers), official information available here:
https://www.acs.com.hk/en/products/575/acr1552u-usb-nfc-reader-iv/
