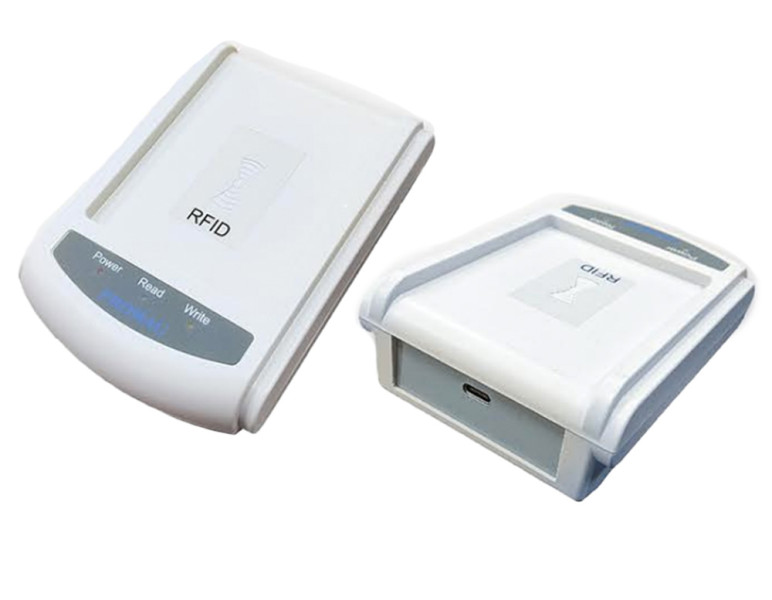

Promag PCR340-51E Dual Frequency RFID reader with serial connection and power supply
(Product ID: 3654)

Promag PCR340-51E is a dual-frequency RFID reader for reading chips operating at 125 kHz or 13.56 MHz frequencies and it comes with additional 5V Power supply.

It is suitable for reading RFID chips of the types MIFARE Classic® 1K/4K, MIFARE Ultralight®, MIFARE® DESFire®, F08, as well as 125 kHz chips such as TK4100, EM4200, and programmed T5577 chips.

The reader functions as a serial reader and it supports RS232 protocol.

If you need larger quantities send an email to info@rfidspecialist.eu or call +386 41 884 124 and we will be happy to help you.

If you are an integrator or reseller, we offer special discounts.

Price/item: 159,00 EUR (with vat 193,98 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3654

Quantity:

Total:

159,00 EUR

Total with vat:

193,98 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

PCR340 reads UID number of either 125 kHz or 13.56 MHz frequency RFID cards. It supports the ISO14443A, MIFARE Classic®, MIFARE Ultralight®, MIFARE® DESFire® and EM compatible cards.

Under optimal conditions, the reading distance is up to 80 mm for 125 kHz and up to 40 mm for 13.56 MHz frequency cards. PCR340 is suitable for use in access control systems, as login key etc.

Manufacturer:	Promag
Name:	PCR-340-51E
RF protocol:	ISO14443A, MIFARE®, EM/TK4100
Frequency:	125 kHz and 13.56 MHz
Interface:	serial connection
Reading distance:	125 kHz: 80 mm; 13.56 MHz: 40 mm
Dimensions:	86 x 120 x 42 mm

Configuration tool available on the manufacturer's website:
https://ftp.gigatms.com.tw/public/disks/disk5274/

The Promag PCR340 reader is available in 3 versions:

PCR340-50: USB connection
PCR340-51: Serial connection
PCR340-51E: Serial connection with a 5V power adapter included
