Promag PCR340-50 USB Dual Frequency RFID reader for 125kHz and 13.56 MHz chips
(Product ID: 1380)

Documents:

PCR-340

Promag PCR340 is a dual-frequency RFID reader for reading chips operating at 125 kHz or 13.56 MHz frequencies.

It is suitable for reading RFID chips of the types MIFARE Classic® 1K/4K, MIFARE Ultralight®, MIFARE® DESFire®, F08, as well as 125 kHz chips such as TK4100, EM4200, and programmed T5577 chips.

The reader functions as a keyboard simulator, typing the chip's ID code onto the screen. It connects via USB.

If you need larger quantities send an email to info@rfidspecialist.eu or call +386 41 884 124 and we will be happy to help you.

If you are an integrator or reseller, we offer special discounts.

Price/item: 125,00 EUR (with vat 152,50 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 1380

Quantity:

Total:

125,00 EUR

Total with vat:

152,50 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

PCR340 reads UID number of either 125 kHz or 13.56 MHz frequency RFID cards. It supports the ISO14443A, MIFARE Classic®, MIFARE Ultralight®, MIFARE® DESFire® and EM compatible cards.

Under optimal conditions, the reading distance is up to 80 mm for 125 kHz and up to 40 mm for 13.56 MHz frequency cards. PCR340 is suitable for use in access control systems, as login key etc.

Manufacturer:	Promag
Name:	PCR-340-50
RF protocol:	ISO14443A, MIFARE®, EM/TK4100
Frequency:	125 kHz and 13.56 MHz
Interface:	USB, keyboard emulation
Reading distance:	125 kHz: 80 mm; 13.56 MHz: 40 mm
Dimensions:	86 x 120 x 42 mm

By default, the reader operates in HEX format, but the reading mode can be customized using a configuration tool available on the manufacturer's website:
https://ftp.gigatms.com.tw/public/disks/disk5274/

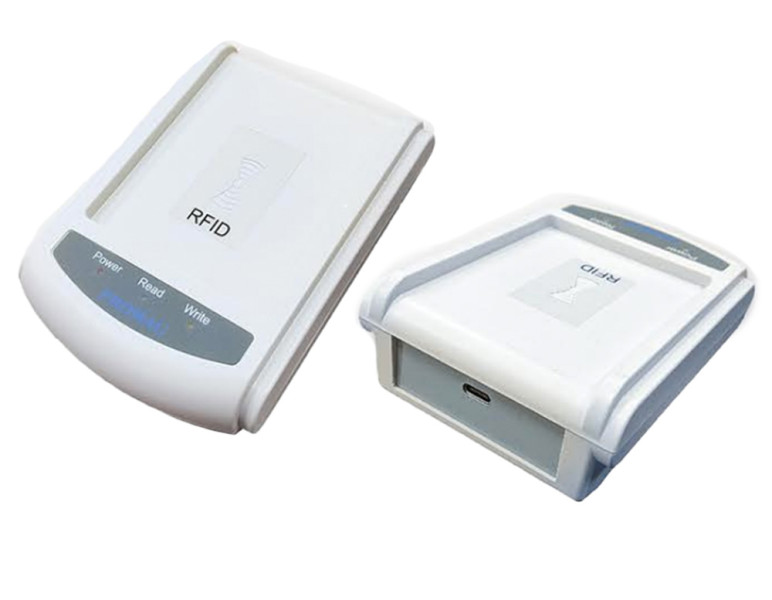

The Promag PCR340 reader is available in 3 versions:

PCR340-50: USB connection
PCR340-51: Serial connection
PCR340-51E: Serial connection with a 5V power adapter included
