Promag UR110-00 125 kHz Wiegand reader
(Product ID: 1617)

Documents:
The Promag UR110-00 is a compact and rugged RFID reader that operates at 125 kHz and can read EM4100-compatible transponders.

It is commonly used in access control, time and attendance, and inventory management applications.

It has multiple interfaces: Wiegand, MSR ABA Track2 or RS232.

The Promag UR110-00 RFID reader can be used in various applications that require reading EM4100-compatible transponders. Some common uses for the UR110-00 include access control access to buildings, rooms, or other secure areas, it can be used to track employee attendandance and inventory management.

Overall, the Promag UR110-00 is a versatile RFID reader that can be used in a wide range of applications that require reliable and cost-effective 125kHz tag reading.

If you need larger quantities send an email to info@rfidspecialist.eu or call +38641 884 124 and we will be happy to help you.

If you are an integrator or reseller, we offer special discounts.
Price/item: 85,00 EUR (with vat 103,70 EUR)
Status: In stock
Dispatching time: 1-3 days
Product ID: 1617

Quantity:

Total:
85,00 EUR

Total with vat:
103,70 EUR
Add to cart
Do you need print or other specific requirements?
Send inquiry



INFO

The Promag UR110-00 is an RFID reader that operates at a frequency of 125 kHz. It is designed to read EM4100-compatible transponders, which are commonly used in access control, time and attendance, and inventory management applications.

It is a compact and rugged reader that can be easily installed and integrated into various systems. It has a read range of up to 9 cm and supports multiple interfaces, including Wiegand, MSR ABA Track2 or RS232.

The reader also has an LED indicator that shows the status of the reader, such as when a tag is detected.

Promag UR110-00 RFID reader can be used in various applications that require reading EM4100-compatible transponders. Some common uses for the UR110-00 include:

Access control: The UR110-00 can be used to control access to buildings, rooms, or other secure areas by reading RFID tags attached to keycards or other access cards.

Time and attendance: The UR110-00 can be used to track employee attendance by reading RFID tags attached to employee ID cards or badges.

Inventory management: The UR110-00 can be used to track inventory by reading RFID tags attached to products or items in a warehouse or retail store.

Asset tracking: The UR110-00 can be used to track the location and movement of valuable assets, such as equipment or tools, by reading RFID tags attached to them.

Overall, the Promag UR110-00 is a reliable and cost-effective RFID reader that is suitable for a wide range of applications that require reading EM4100-compatible transponders.

Technical specifications for the Promag UR110-00 RFID reader

Frequency: 125 kHz
Compatible transponder: EM4100, EM4200, TK4100 and compatible
Read range: up to 9 cm (usually 3-5 cm)

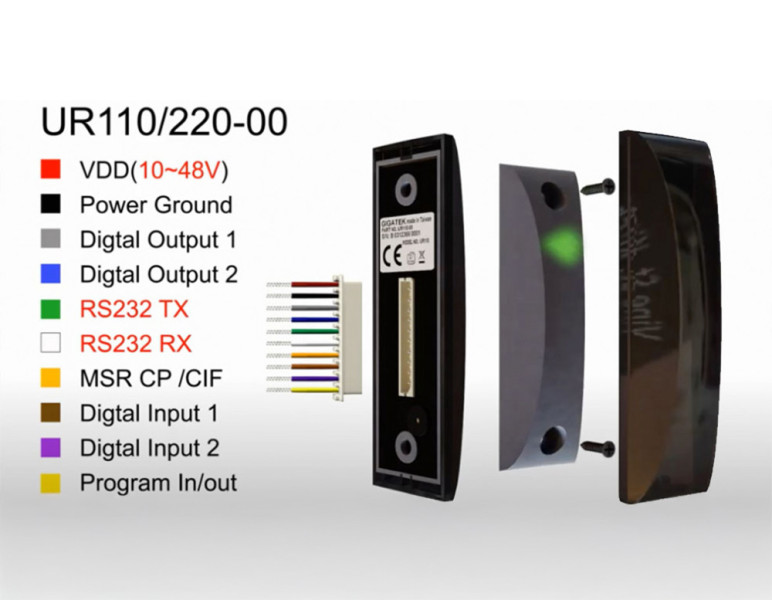

Interface: Wiegand, MSR ABA Track2 or RS232
LED indicator for tag detection
Power supply: 7,5 -12 VDC
Power consumption: 90mA @12VDC
Output format: HEX
Watchdog timer and over-voltage protection
Operating temperature: -10°C to +60°C

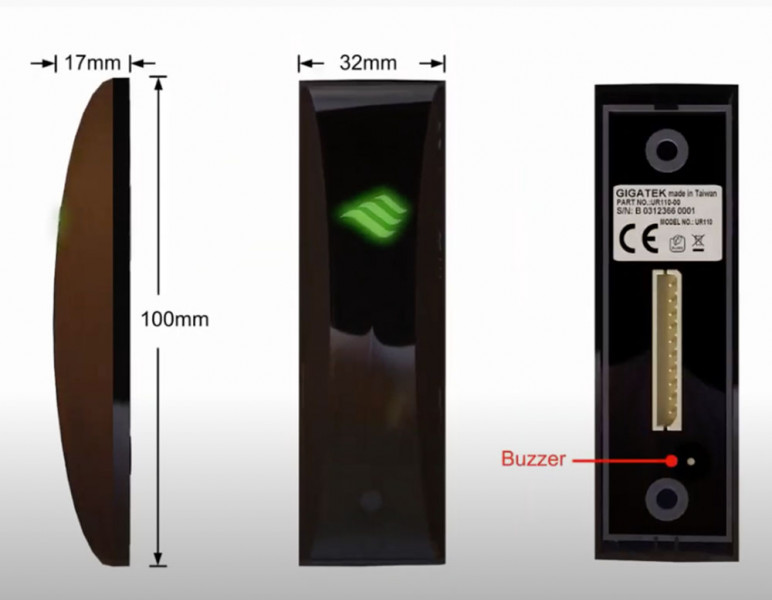

Dimensions: Lenght: 100 mm, Width 32mm, Height:16,5 mm
Weight: 50g

Technical documentation:
http://ftp.gigatms.com.tw/disks/common/Documents/TM951264-05.pdf

Other models:
Promag UR110-20 RS485 Wall-mount 125 kHz reader
