Promag UR110-20 RS485 Wall-mount 125 kHz reader
(Product ID: 1710)

The Promag UR110-20 is a stylish and reliable proximity RFID reader for contactless smart cards and tags that operate at a frequency of 125 kHz and can be used in various applications that require reading EM4100-compatible transponders.

It has an RS485 interface and it reads the chip ID number form chips EM4100, EM4200, TK4100 and compatible.

If you need larger quantities send an email to info@rfidspecialist.eu or call +386 41 884 124 and we will be happy to help you.

If you are an integrator or reseller, we offer special discounts.
Price/item: 100,00 EUR (with vat 122,00 EUR)
Status: In stock
Dispatching time: 1-3 days
Product ID: 1710

Quantity:

Total:
100,00 EUR

Total with vat:
122,00 EUR
Add to cart
Do you need print or other specific requirements?
Send inquiry



INFO

The Promag UR110-20 RFID reader can be used in various applications that require reading EM4100-compatible transponders and a RS485 interface.

Some common uses for the UR110-20 include access control access to buildings, rooms, or other secure areas, it can be used to track employee attendandance and inventory management.

Technical specifications for the Promag UR110-20 RFID reader

Frequency: 125 kHz
Compatible transponder: EM4100, EM4200, TK4100 and compatible
Read range: up to 9 cm (usually 3-5 cm)
Interface: RS485
LED indicator for tag detection
Power supply: 7,5 -12 VDC
Power consumption: 90mA @12VDC
Model No.: UR110
Part no.: UR110-20
Output format: HEX
Operating temperature: -10°C to +60°C

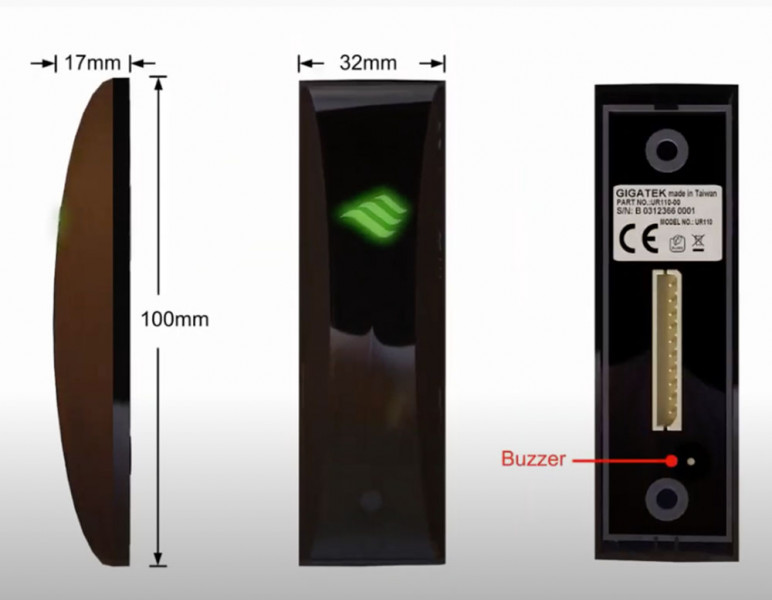

Dimensions: Lenght: 100 mm, Width 32mm, Height:16,5 mm
Weight: 50g

Technical documentation:
http://ftp.gigatms.com.tw/doc/UR110/

If you need larger quantities send an email to info@rfidspecialist.eu or call +386 41 884 124 and we will be happy to help you.

If you are an integrator or reseller, we offer special discounts.
