INFO
The ACR1552U NFC reader supports the following protocols: ISO 14443 Type A and B, MIFARE®, FeliCa, NFC tags compliant with ISO 18092, ISO 15693.
It can operate in three different modes:
- Card reader/writer mode – Ideal for reading and writing contactless chips. It is also compatible with various third-party applications (e.g., GoToTags, NFC Tools).
- Card emulation mode – The reader can simulate the behavior of a standard NFC card.

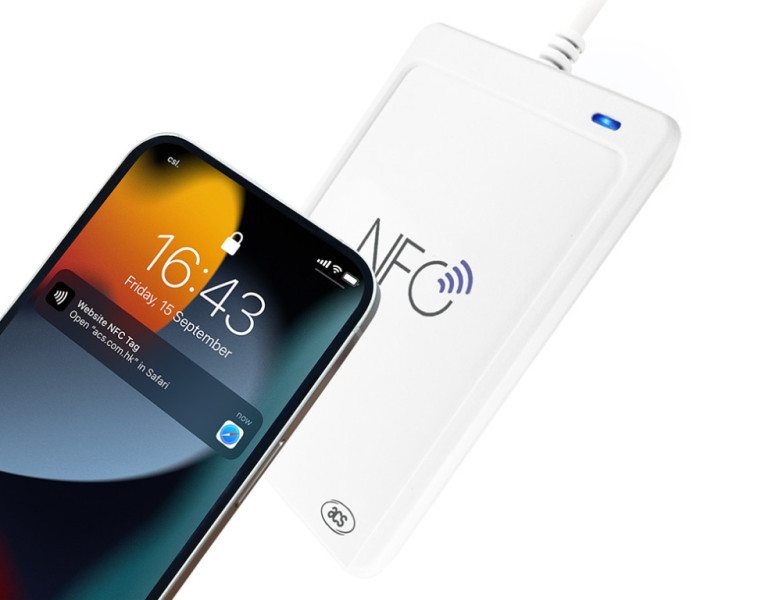

- Peer-to-peer mode – Enables communication with other NFC-enabled devices such as smartphones, tablets, etc.

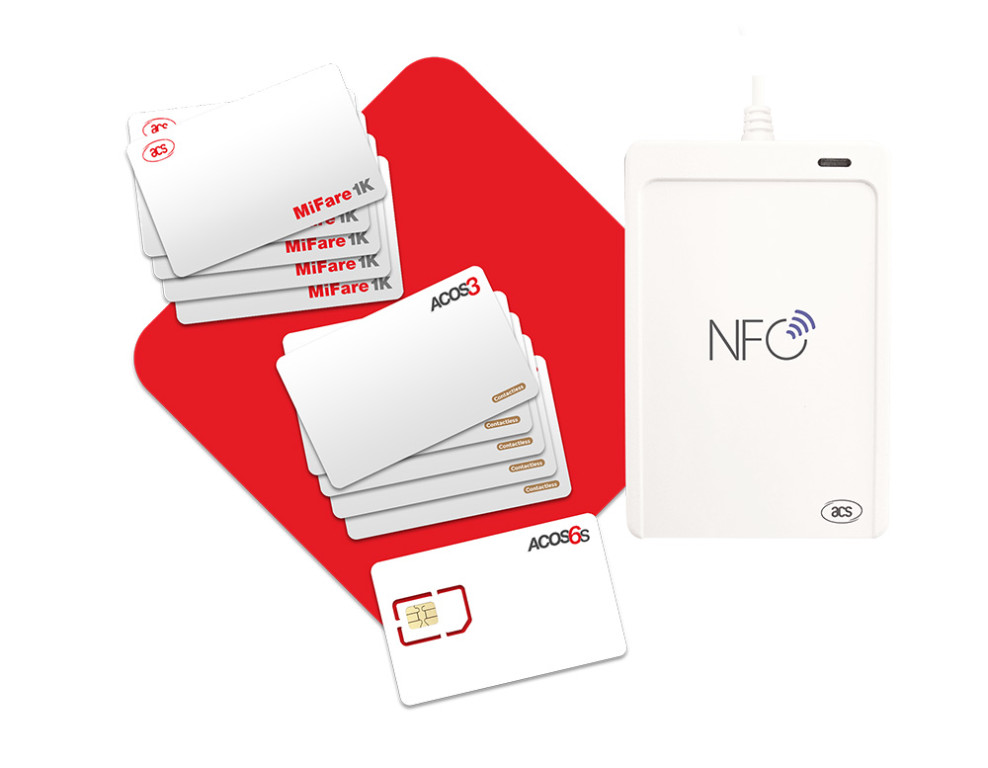

SDK Kit Includes:

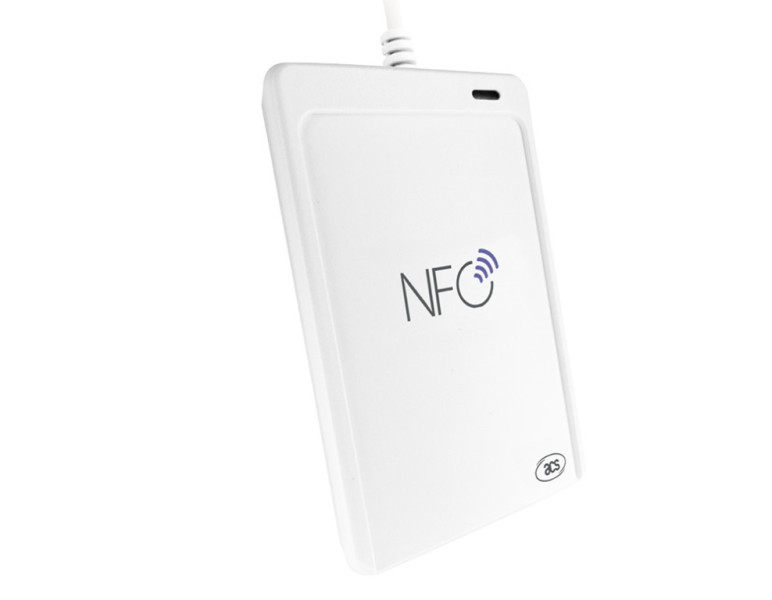

NFC Reader: ACR1552U USB NFC Reader IV
Test Cards:
5 × MIFARE 1K Cards
5 × ACOS3 Contactless Smart Cards
1 × ACOS6-SAM Secure Access Module Card
Software Installer
User Manual
Software Tools and Utilities:
QuickView 2.13
Script Tool 5.02
Smart Card and Reader Tool
Keyboard Configuration Tool V100
ACS CCID PC/SC Driver
Sample Code Available In:
Java (JDK8)
MS Visual Basic (.NET Framework 4.7.2)
MS Visual C# (.NET Framework 4.7.2)
MS Visual C++ (.NET Framework 4.7.2)
Supported Operating Systems:
Windows® 10
Windows® 11
If you only need the ACR1552U reader, please visit:
https://rfidspecialist.eu/readers/acr1552u-m1-sam-usb-nfc-chip-reader-and-writer.html
Drivers and API libraries are also available on the manufacturer’s website:
https://www.acs.com.hk/en/products/575/acr1552u-usb-nfc-reader-iv/
