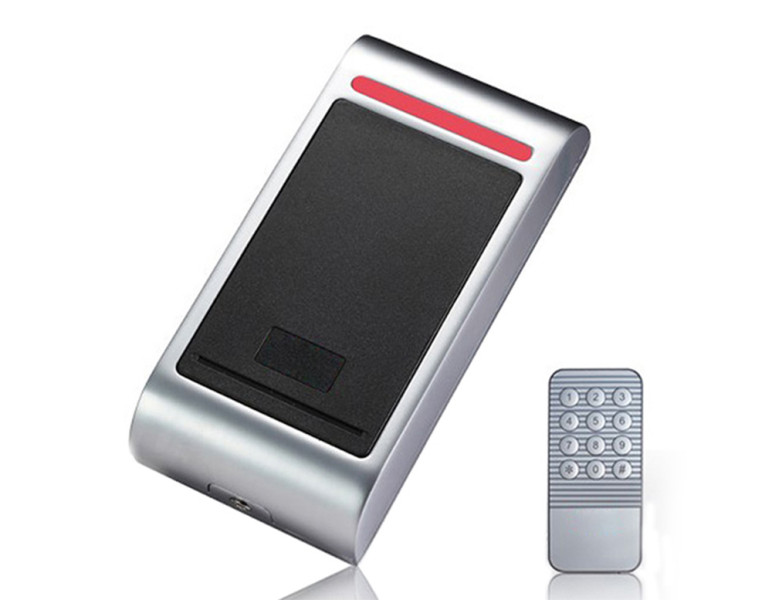

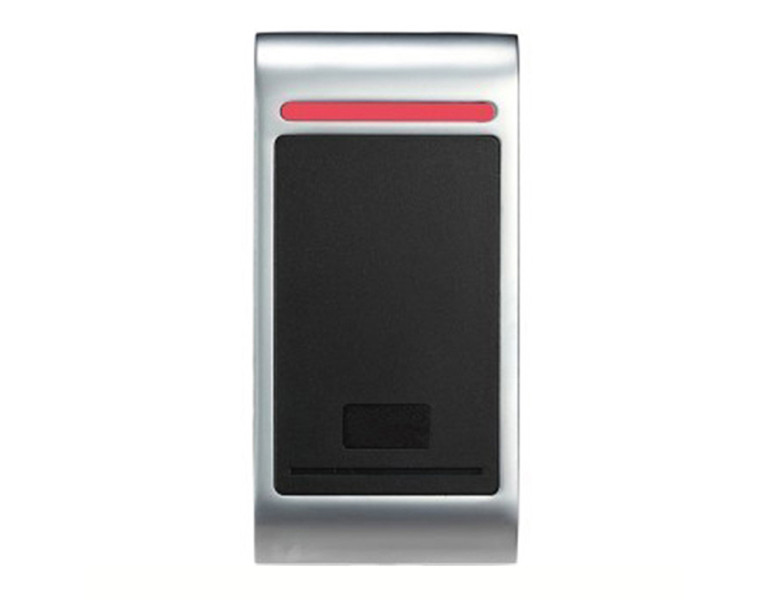

SDC-2MEM Standalone Access Control with IP68 Metal Housing
(Product ID: 3857)

The SDC-2MEM is a standalone access control device for unlocking doors using RFID chips operating at 125 kHz, including TK4100, EM4200, and programmed T5577 types. It supports the registration of up to 10,000 users.

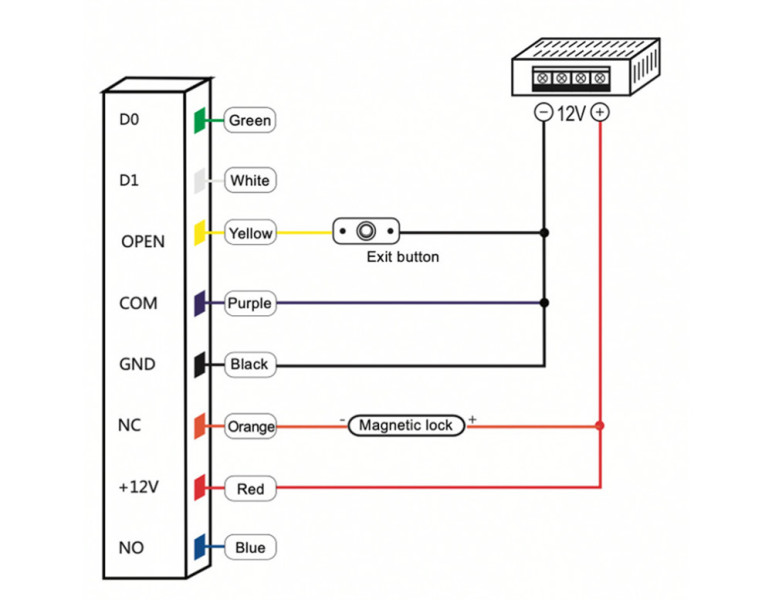

The device includes a voltage-free relay for activating an electric lock or electromagnetic strike, enabling secure access to a building.

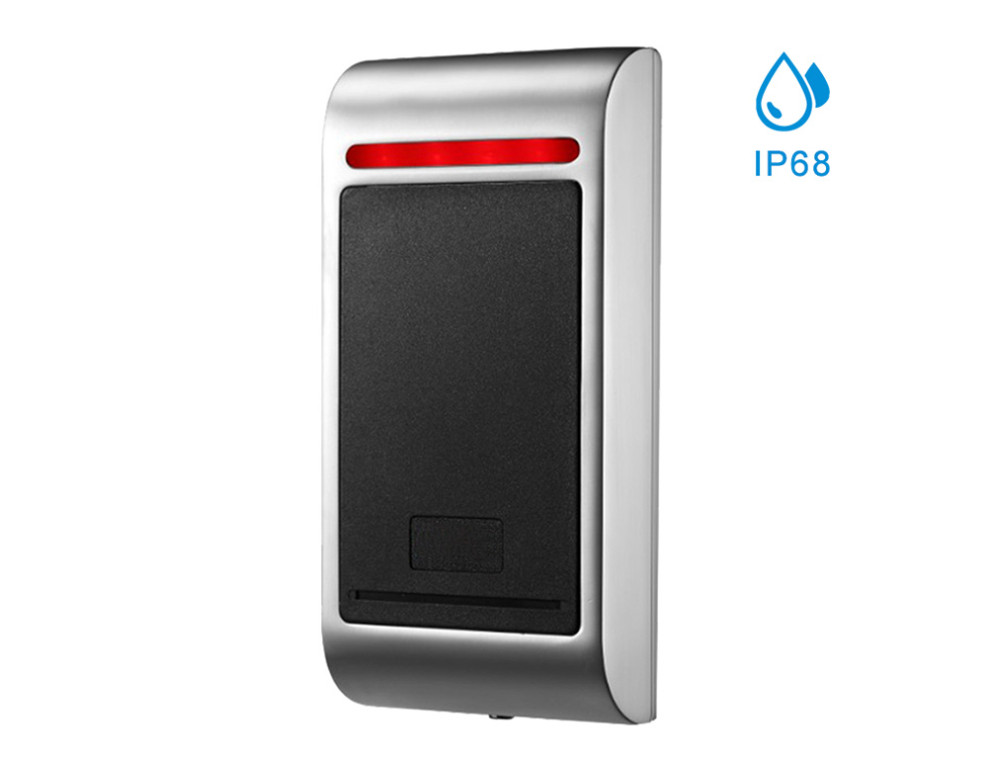

Its compact IP68-rated housing measures 56 × 115 × 22 mm, offering resistance to both dust and water, making it ideal for outdoor installation and demanding environments such as industrial sites.

For further information or to request a quote, contact us at info@rfidspecialist.eu.
Our team of experts is ready to assist you with any inquiries.

If you are an integrator or reseller, we offer special discounts.

Price/item: 92,00 EUR (with vat 112,24 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3857

Quantity:

Total:

92,00 EUR

Total with vat:

112,24 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

This ruggedly built access control unit features a metal housing (dimensions: 56 x 115 × 22 mm) and is designed for door access using 125 kHz RFID chips.

User enrollment is performed using administrator cards ("Add User" and "Delete User") or via a remote control.

The device features a vandal-resistant, IP68-rated enclosure, making it resistant to harsh weather and external damage—perfect for industrial facilities, apartment buildings, and similar environments.

Technical Specifications

Model: SDC-2MEM
Dimensions: 56 × 115 × 22 mm
Power Supply: 12–24V DC
Frequency: 125 kHz
Supported RFID Chips: TK4100, EM4200, programmed T5577
Housing: Metal body with a plastic interface area for chip contact
Max Users: 10,000
Relay Pulse Duration: 0–99 seconds
Max Relay Load: 3A
Indicators: LED & Buzzer
Operating Temperature: -45°C to 60°C
Humidity Tolerance: 10% to 90%
Reading Range: 2–5 cm
Optional Functionality: Can operate as a Wiegand 26 reader
Net Weight: 300 g
Gross Weight: 412 g

For further information or to request a quote, contact us at info@rfidspecialist.eu.
Our team of experts is here to assist and answer all your questions.

If you are an integrator or reseller, we offer special discounts.
