INFO

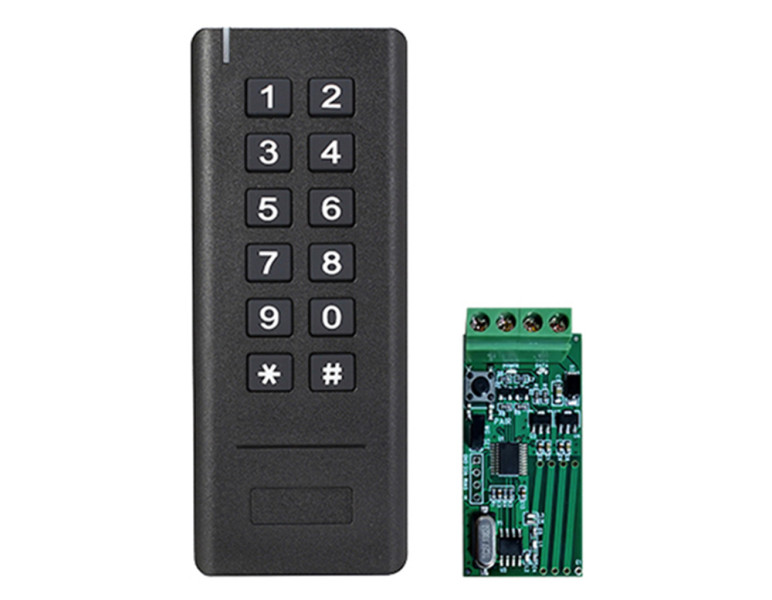

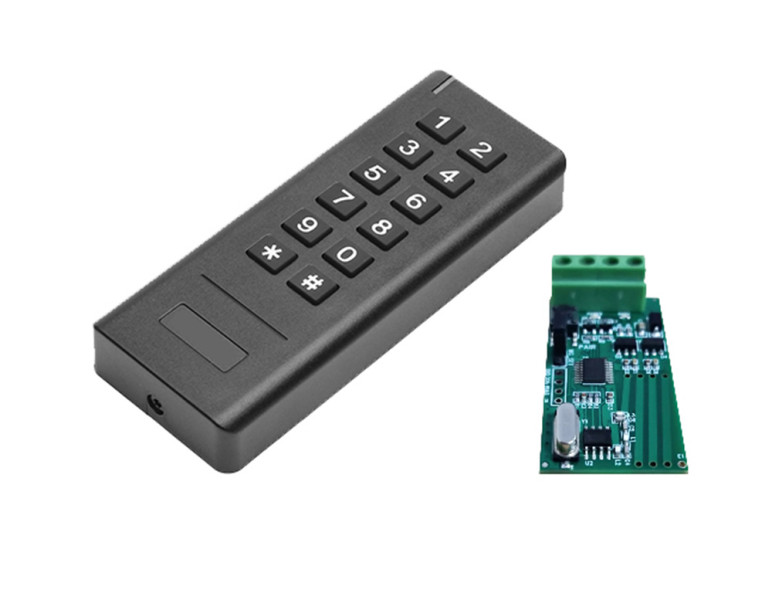

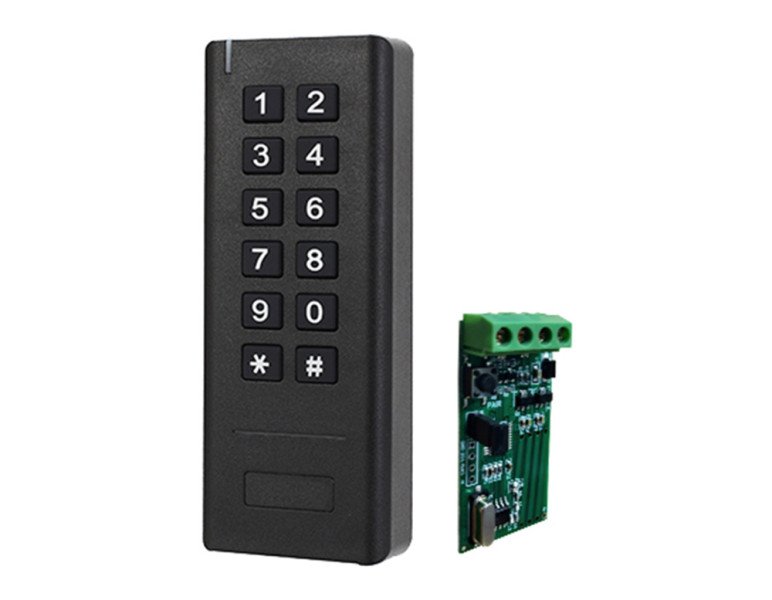

This wireless reader is commonly used in access control systems where cabling between the reader and the controller is not available or should be avoided.

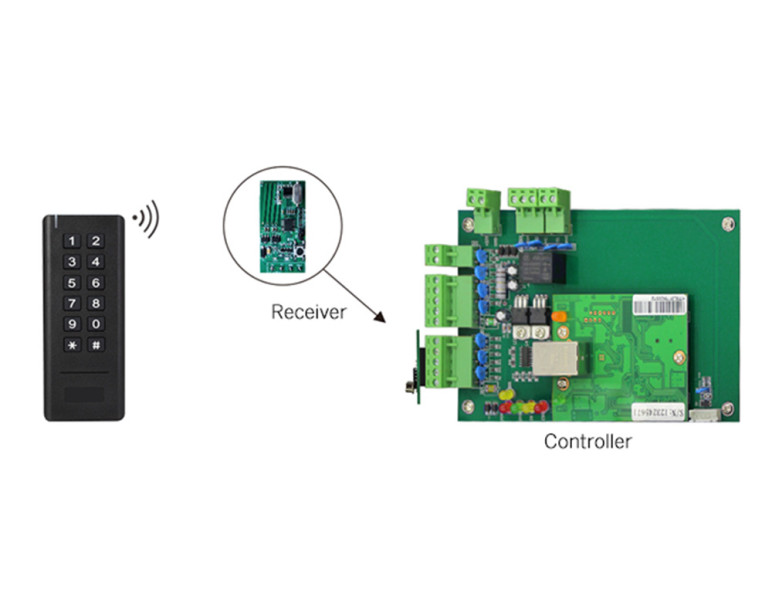

The reader reads either the RFID chip ID or the entered PIN code and transmits the data to the receiver, which forwards it to the controller.

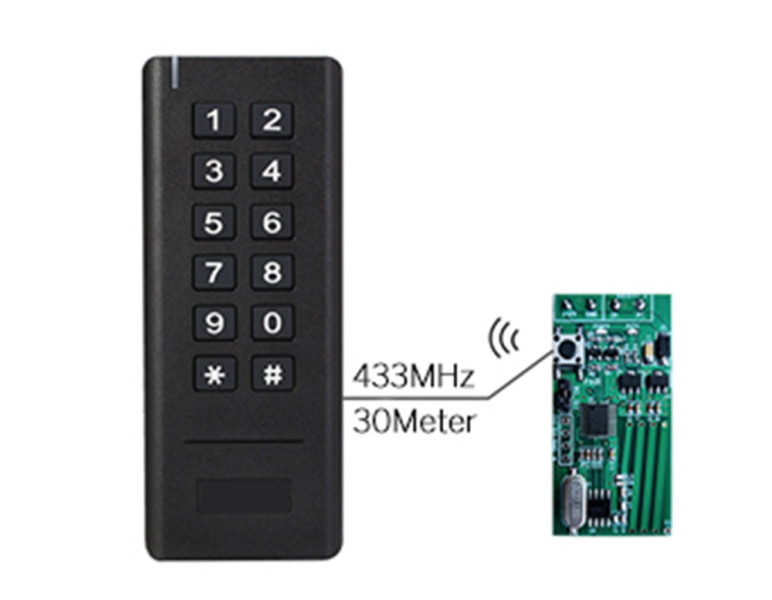

Communication between the reader and the receiver takes place at 433 MHz and is secured with Rolling Code encryption.

Communication between the receiver and the controller uses the Wiegand protocol (26 or 34 bit).

Technical Specifications

Model: SDC-KW1 MF
Frequency: 13.56 MHz
Compatible RFID Chips: Mifare Classic, F08, and compatible
Reader Dimensions: 134 x 55 x 20 mm
Material: ABS plastic
Reading Protocol: Wiegand 26/34
PIN Code: 4 to 6 digits
Reading Distance: up to 3 cm

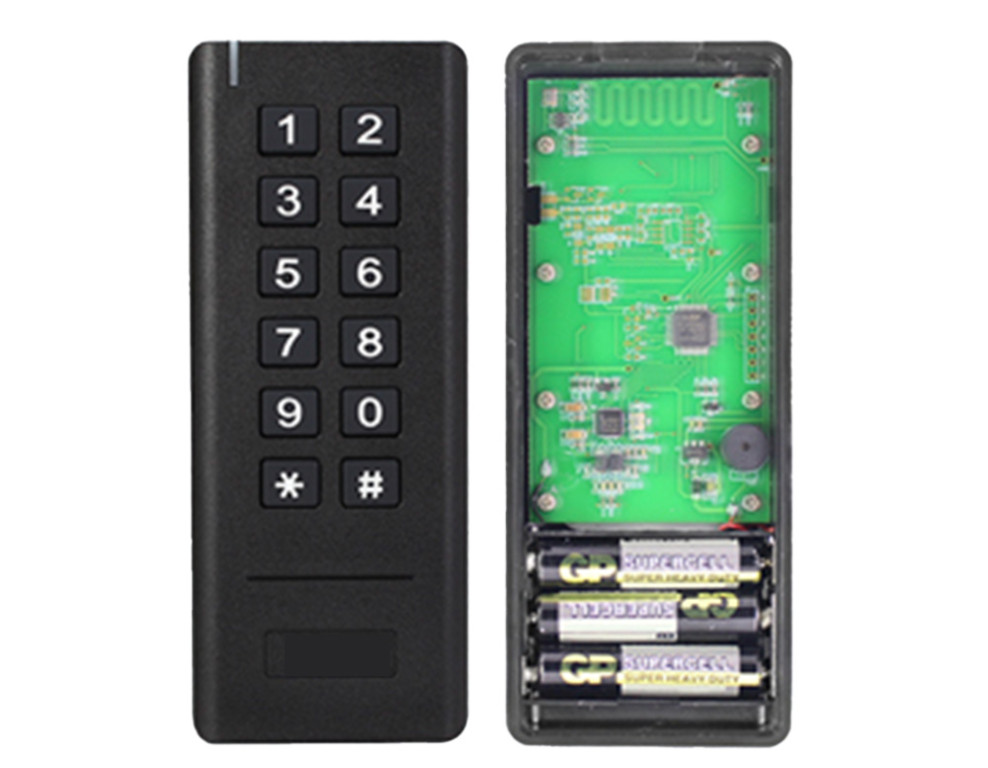

Reader Power Supply: 3 × AAA batteries
Current Consumption (idle): up to 5 μA
Current Consumption (active): 45 mA
Operating Temperature: -20°C to 60°C
Humidity Range: 10%–86%
Reader Weight: 100 g
Receiver Power Supply: 12V DC
Receiver Dimensions: 25 x 50 mm
Distance Between Reader and Receiver: up to 30 m
Receiver Weight: 10 g
