The Syris RD300-DES1 desktop reader is a device that is designed to read and write on contactless smart cards based on the DESFire technology.

 It is commonly used in access control systems, electronic payments, and other applications that require secure and convenient identification.

The DESFire technology is a type of smart card technology that is known for its high level of security and versatility. It uses advanced encryption algorithms and supports multiple applications and data files, making it suitable for a wide range of applications.

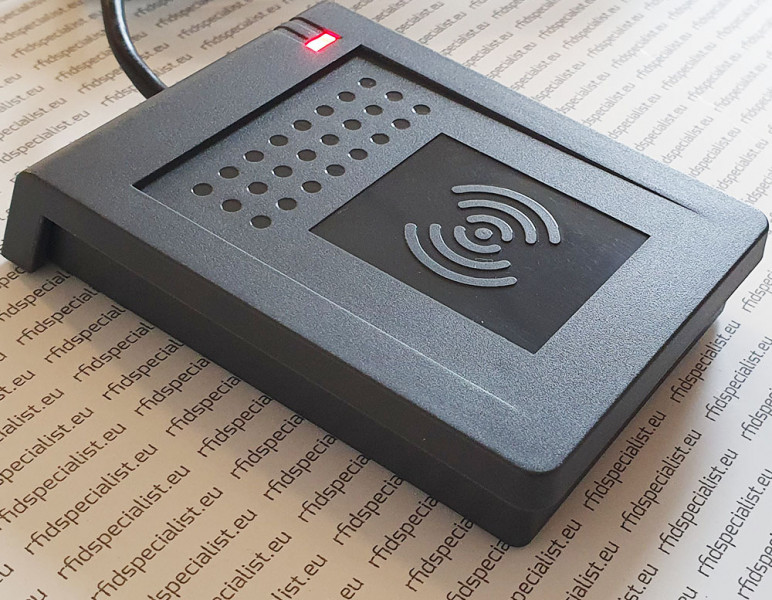

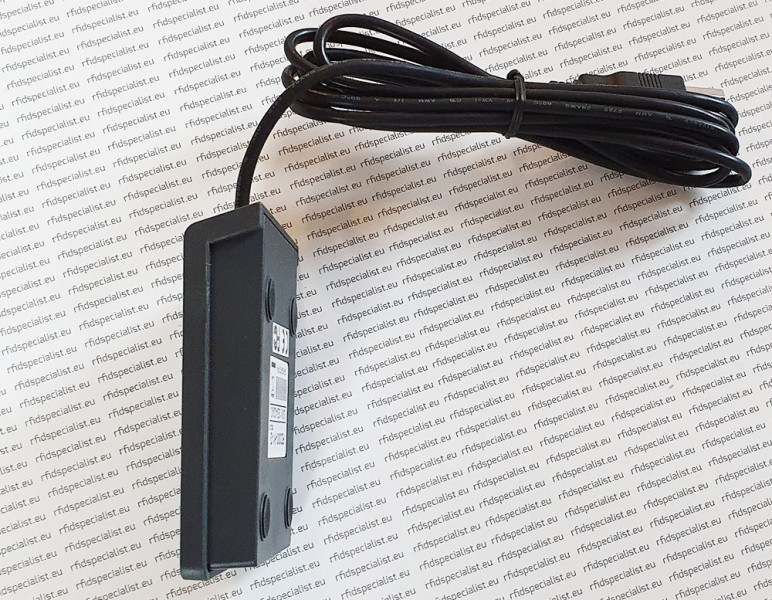

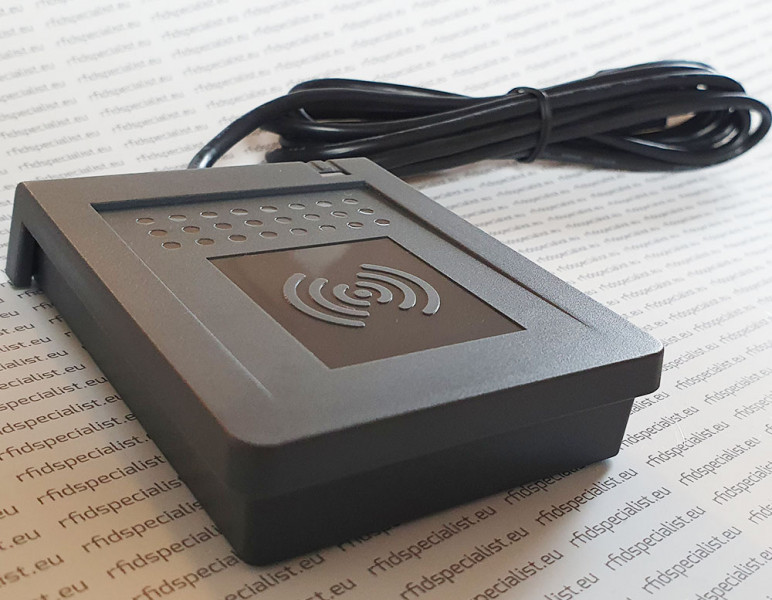

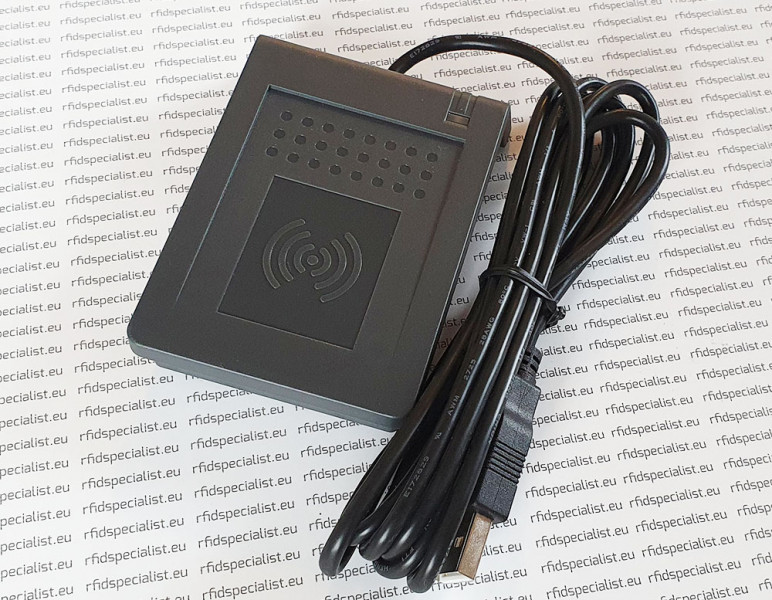

The RD300-DES1 Syris DESFire desktop reader is a compact and easy-to-use device that connects to a computer via USB port.

It is designed for use with DESFire cards and supports a variety of communication protocols, including ISO 14443A/B.

The reader can be used with a variety of software applications to enable secure access control, time and attendance tracking, cashless payments, and other functions. It is often used in corporate and government environments, as well as in healthcare, education, and retail settings.


Function:

• Support NXP Mifare,DESFire EVl /EV2 read/write.
• Support format DESFire tag.
• Support auto read DESFire UID/block.
• Built-in two colors LED and buzzer alert.
• Provide Protocol and API development tool.
• Support decimal, hexadecimal and ASCII ID formats.
• Powered by USB connection to notebook or desktop PC USB Keyboard Emulation.
• Unique serial number for identification.

Environment:

• Operating temperature: -20°C to 65°C
• Storage temperature: -30°C to 85°C

Applications:

- PC Autentication
- Print Control
- Program Development
- ID Identification
- Access Control
- Password Login

Technical specification:

Frequency: 13,56 MHz
Interface:  USB 2.0 compliant
Card compatibility: Mifare (ISO-14443A), NXP DES Fire EVl /EV2 read/write.
Read range: 0-5 cm
Indicator: two colors LED and buzzer
Input voltage: Standard USB power - 5V 500 mA
Operating temperature: - 20°C to 65°C, 5 to 95% RH
Storage temperature : -30°C to 85°C, 5 to 95% RH
Dimensions: 62.3 W x 87.7 H x 18.4 D (mm)
