Wall-Mounted Wiegand Reader for Mifare Classic Chips and PIN Code
(Product ID: 3826)

This wall-mounted Wiegand reader is used for access control using contactless RFID chips of the Mifare Classic type (13.56 MHz) or via a 4-digit PIN code.

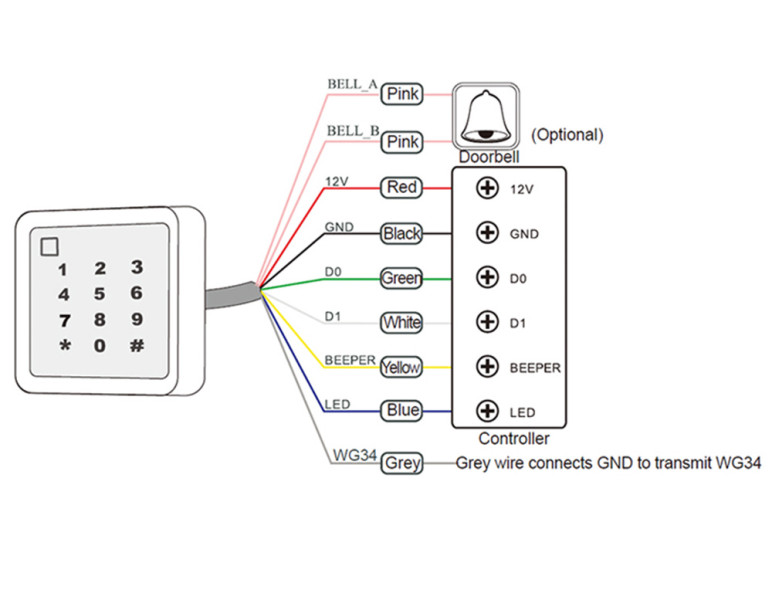

Communication between the reader and the controller is based on the Wiegand 26 or 34 protocol.

This is not a standalone access control device - it is intended for connection to a controller.

For further information or offer, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your queries.

If you are an integrator or reseller, we offer special discounts.

Price/item: 49,00 EUR (with vat 59,78 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3826

Quantity:

Total:

49,00 EUR

Total with vat:

59,78 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

This reader is widely used in access control systems for office buildings, residential complexes, industrial facilities, and other secured areas.

Users gain access by presenting their RFID card or key fob to the reader, which transmits the data to the controller for door unlocking.

The reader also features a touch keypad for PIN code entry.

Technical Specifications

Model: SDC-8TR MF Mifare
Frequency: 13.56 MHz
Compatible RFID Chips: Mifare Classic and compatible
Dimensions: 86 × 86 × 20 mm
Material: ABS plastic and metal
Reading Protocol: Wiegand 26/34
IP Rating: IP68
Reading Distance: 30–80 mm (depending on environment and media)
Voltage: 9–12V DC
Current Consumption (idle): up to 30 mA
Operating Temperature: -45°C to 60°C
Humidity Range: 10%–90%
Indicators: LED and buzzer
Weight: 400 g
