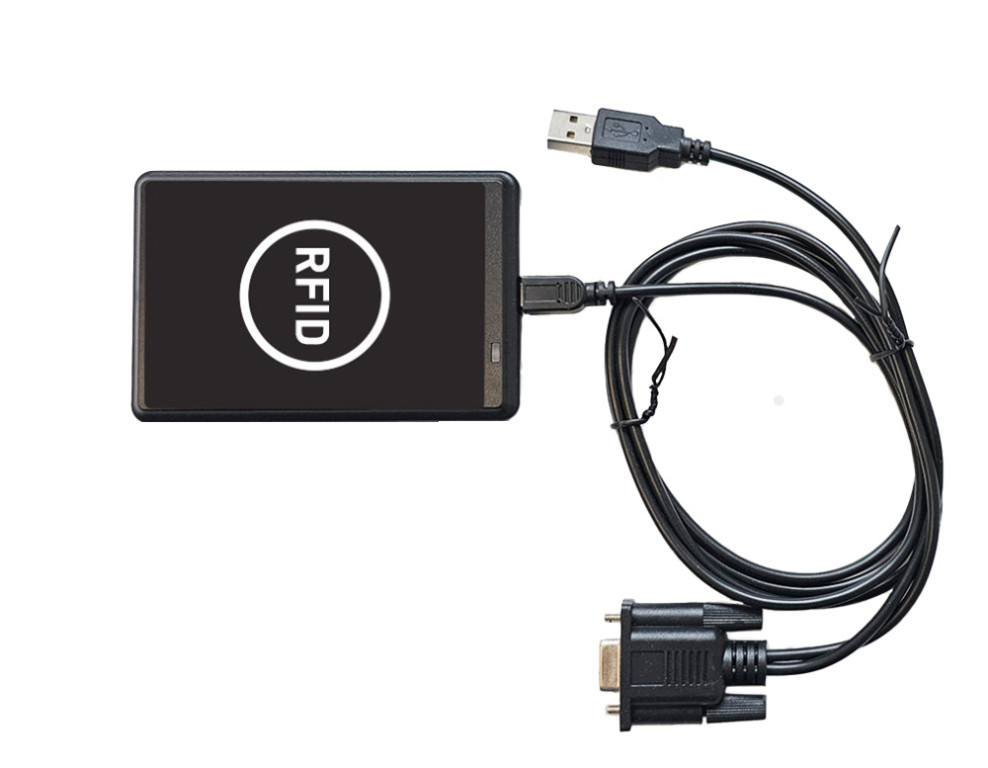

SDC-R12D Serial RFID Reader for 125 kHz Chips
(Product ID: 3685)

These RFID readers are suitable for reading the 5-byte ID code from read-only chips that operate at a frequency of 125kHz (such as TK4100, EM4200, EM4xx, etc.).

The default reading format is in 10 HEX, but they can be reprogrammed and customized for different output formats if necessary.

The connection is serial, with a female DE-9 connector, and the reader is powered via a USB connector from a computer or a USB power supply.

These serial readers are suitable for connection to devices with serial ports that support the RS232 protocol.

For an offer, contact us at info@rfidspecialist.eu or call +386 41 884 124.
If you are an integrator or reseller, we offer special discounts.
Price/item: 45,00 EUR (with vat 54,90 EUR)
Status: In stock
Dispatching time: 1-3 days
Product ID: 3685

Quantity:

Total:
45,00 EUR

Total with vat:
54,90 EUR
Add to cart
Do you need print or other specific requirements?
Send inquiry



INFO

The serial RFID reader for 125kHz chips can be connected to a controller, computer, or other device with a serial connection and communication via RS232.

The communication connector is a DE-9 female type, and the power is supplied via a USB connector.

The reader reads the 5-byte ID code of 125kHz read-only chips, such as EM4200, TK4100, and similar.

The default reading mode is 10 HEX, but the readers can be reprogrammed and customized for different output formats if necessary.

Technical Specification for Serial RFID Reader for 125 kHz Chips

Model: SDC-R12D
Dimensions: 105×70×14 mm
Frequency: 125 kHz
Supported Chips: TK4100, EM4200
Housing: Plastic, desktop
Connection: Serial DE-9 female connector
Power Supply: 5 V (via USB connector)
Protocol: RS232

To test reading on a personal computer, you need to install the PuTTY application (https://www.putty.org/), open serial communication, and the ID number will be displayed on the screen.

For an offer, contact us at info@rfidspecialist.eu or call +386 41 884 124.
If you are an integrator or reseller, we offer special discounts.
