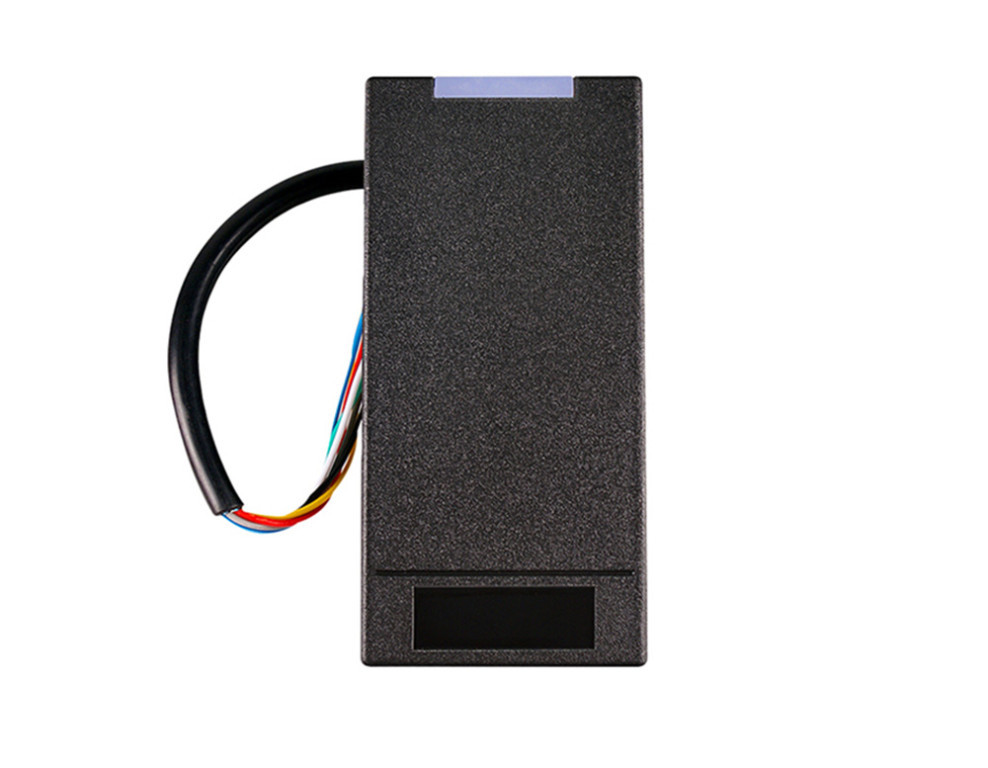

Wall-Mounted Wiegand Reader for 13.56 MHz Mifare Classic Chips
(Product ID: 3957)

Wall-mounted 13.56 MHz reader designed to connect to a controller and communicate using the Wiegand protocol.

It is suitable for chips with a 4-byte ID code operating at 13.56 MHz (such as Mifare Classic, F08, etc.).

This reader is not a standalone device for door unlocking—it is intended to be connected to a controller.

Communication between the reader and the controller uses the Wiegand 34 protocol, which can be converted into an 8-digit HEX code.

For further information or a quote, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your questions.

If you are an integrator or reseller, we offer special discounts.
Price/item: 37,00 EUR (with vat 45,14 EUR)
Status: In stock
Dispatching time: 1-3 days
Product ID: 3957

Quantity:

Total:
37,00 EUR

Total with vat:
45,14 EUR
Add to cart
Do you need print or other specific requirements?
Send inquiry



INFO

Wall-Mounted Reader for 13.56 MHz Chips with 4-Byte ID Code (Mifare Classic or Compatible)

Ideal for connection to a controller or other hardware capable of communicating via the Wiegand protocol.

This reader is commonly used in access control systems for office buildings, residential complexes, industrial facilities, and other secured areas.

Communication with the controller is based on the Wiegand 34 protocol, which can be converted into an 8-digit HEX code.

Technical Specifications

Model: SDC-94-PCD-13.56 MHz
Frequency: 13.56 MHz
Compatible with: Mifare Classic and F08 RFID chips

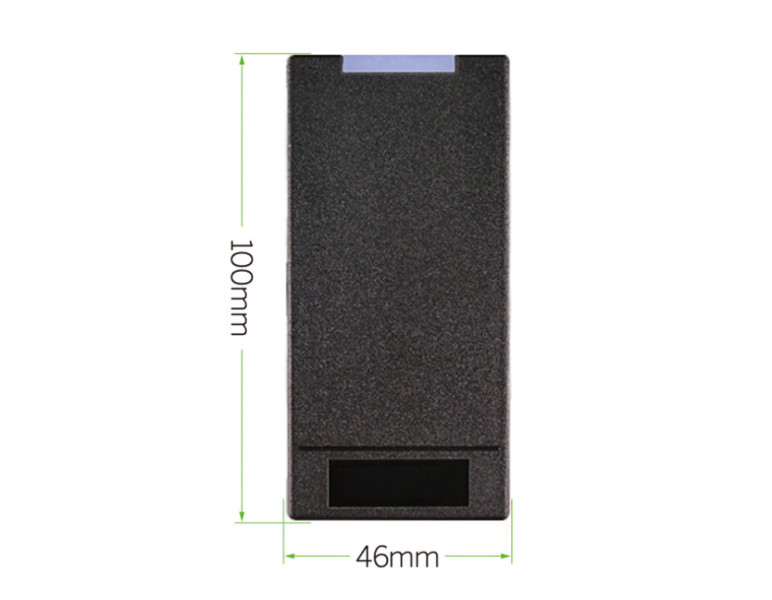

Dimensions: 46 x 100 x 20 mm
Material: ABS plastic
Reading Protocol: Wiegand 34, ISO 14443 A
IP Rating: IP65
Reading Distance: 30–50 mm (depending on environment and media)
Voltage: 9–14V DC
Current Consumption (idle): up to 30 mA
Operating Temperature: -20°C to 65°C
Humidity Range: 10%–90%
Indicators: LED and buzzer
Weight: 50 g
