Wall-Mounted NFC Reader with Wiegand 66 Interface
(Product ID: 3917)

Wall-mounted NFC reader designed to connect to a controller and communicate using the Wiegand protocol.

It is compatible with chips operating at 13.56 MHz, supporting the ISO 14443 protocol and containing a 7-byte ID code (e.g., NTAGxx, Mifare Desfire, Ultralight, Classic, etc.).

Communication between the reader and the controller is based on the Wiegand 66 protocol and it reads the whole ID in the format 14 HEX.

This reader is not a standalone door access device - it is intended to be connected to a controller.

For further information or a quote, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your questions.

If you are an integrator or reseller, we offer special discounts.

Price/item: 42,00 EUR (with vat 51,24 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3917

Quantity:

Total:

42,00 EUR

Total with vat:

51,24 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

This type of reader is commonly used in access control systems in office buildings, residential complexes, industrial facilities, and other secured areas.

Users can access specific zones by presenting their NFC card or key fob to the reader, which then transmits the information to the controller for door unlocking.

Technical Specifications

Model: SDC-94-PCD-WG66
Frequency: 13.56 MHz
Compatible with: RFID and NFC chips supporting ISO 14443 A

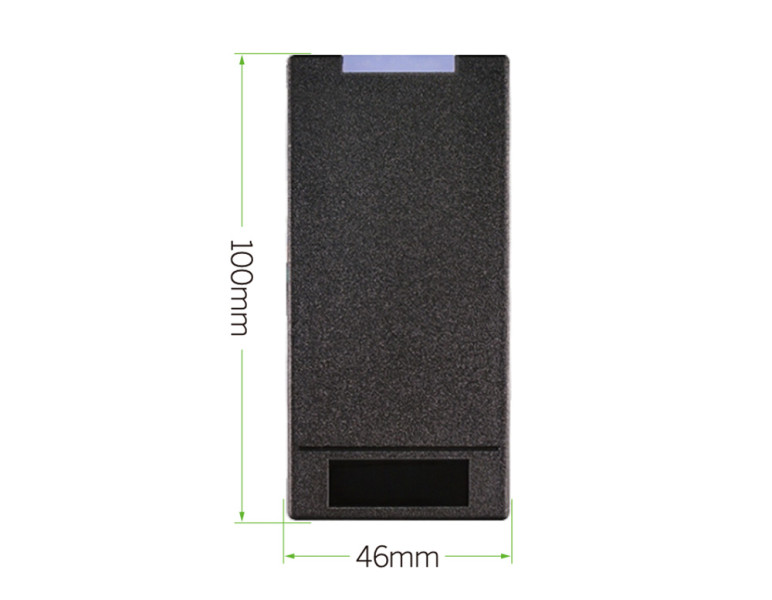

Dimensions: 46 x 100 x 20 mm
Material: ABS plastic
Reading Protocol: Wiegand 66
IP Rating: IP65
Reading Distance: 30–50 mm (depending on environment and media)
Voltage: 9–14V DC
Current Consumption (idle): up to 30 mA
Operating Temperature: -20°C to 65°C
Humidity Range: 10%–90%
Indicators: LED and buzzer
Weight: 50 g
