Waterproof Wall-Mounted Wiegand Reader for 125 kHz Chips
(Product ID: 3823)

The wall-mounted Wiegand reader for 125 kHz RFID chips is a device used for access control through contactless RFID technology.

It is installed on the wall near entry points and allows users to unlock doors by presenting their RFID cards or key fobs to the reader.

Designed for outdoor use, it features a durable and waterproof housing.

The reader scans the chip’s ID code and sends the data to the controller via the Wiegand protocol.

It is compatible with read-only chip types such as EM4200, TK4100, and encoded chips like T5577.

For further information or a quote, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your questions.

If you are an integrator or reseller, we offer special discounts.

Price/item: 45,00 EUR (with vat 54,90 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3823

Quantity:

Total:

45,00 EUR

Total with vat:

54,90 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

This type of reader is commonly used in access control systems for office buildings, residential complexes, industrial facilities, and other secured areas.

Users gain access to specific zones by presenting their RFID card or key fob to the reader, which then communicates the data to the controller for door unlocking.

Technical Specifications

Model: SDC-M200U EM 125kHz
Frequency: 125 kHz
Compatible RFID Chips: EM4200, TK4100, etc.

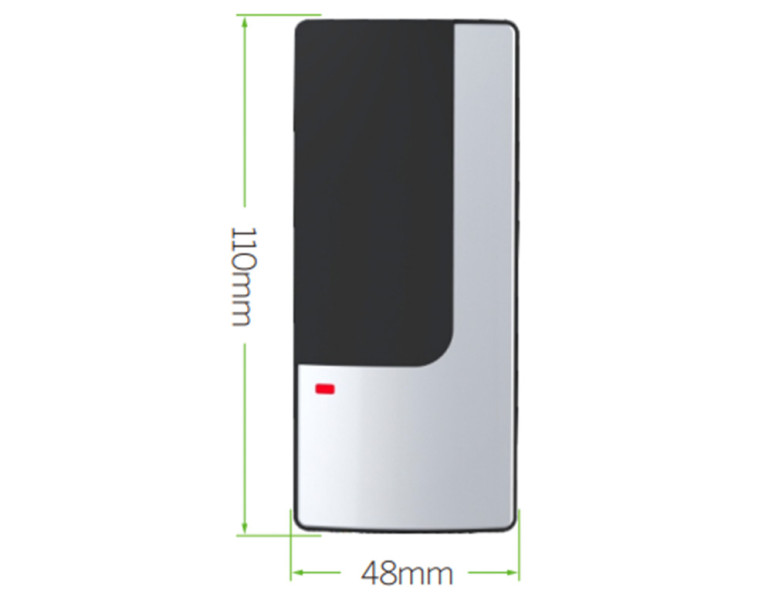

Dimensions: 110 x 48 x 20 mm
Material: ABS plastic and metal
Reading Protocol: Wiegand 26
IP Rating: IP68
Reading Distance: 30–80 mm (depending on environment and media)
Voltage: 9–12V DC
Current Consumption (idle): up to 30 mA
Operating Temperature: -45°C to 60°C
Humidity Range: 10%–90%
Indicators: LED and buzzer

For further information or a quote, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your questions.

If you are an integrator or reseller, we offer special discounts.
