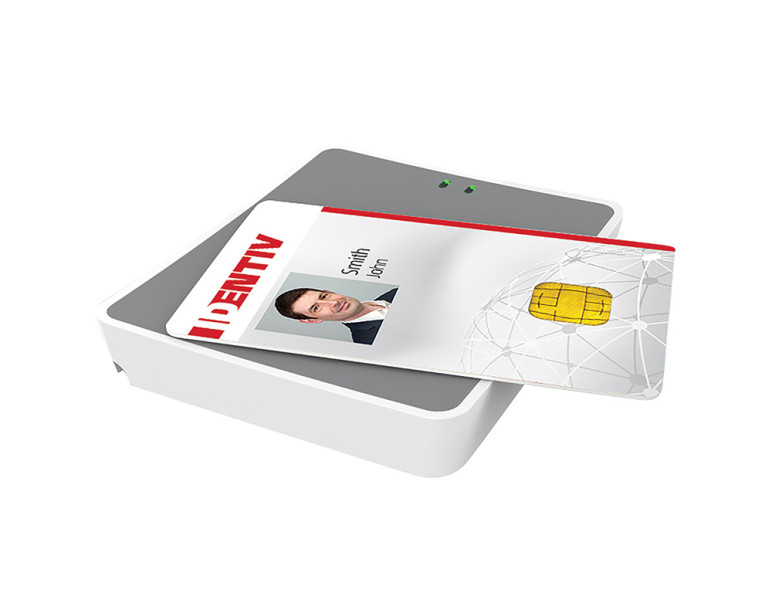

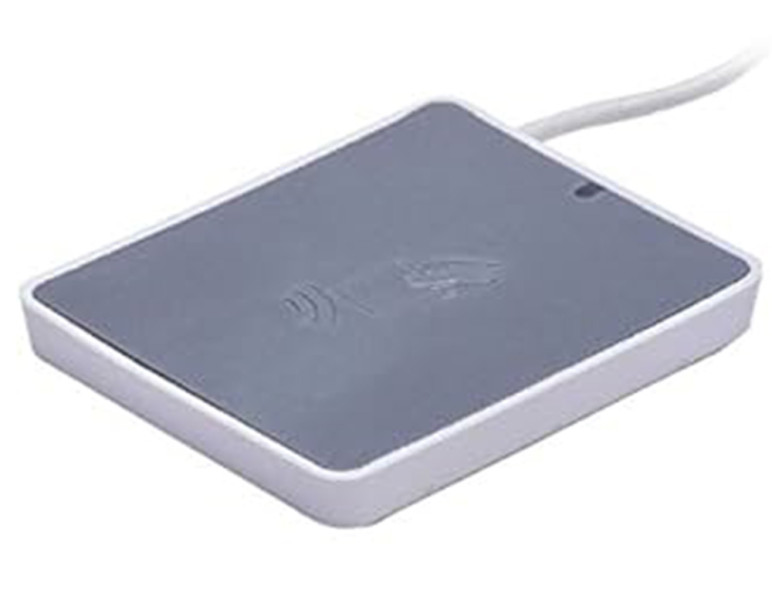

The uTrust 3700 F is an NFC device for reading and writing chips operating under the ISO/IEC 14443 protocol.
It is compatible with applications supporting PC/SC readers and can be integrated into custom applications using API libraries.
Technical documentation is available on the manufacturer’s website:
https://support.identiv.com/3700f/
The reader is compatible with major operating systems, including Windows®, Linux®, macOS, and Android™.
Technical Specifications
Manufacturer: Identiv
Product Name: uTrust 3700 F
Operating Frequency: 13.56 MHz
RF Protocol: ISO 14443 types A and B
Supported Chips: MIFARE Classic®, MIFARE Ultralight, MIFARE Plus, MIFARE DESFire, FeliCa™, Calypso, CD21, and other NFC chip types 1/2/3/4.
Reader Type: Desktop
Reading Distance: up to 5 cm
Built-in dual-color LED and audible alert
Interface: USB
Reader Dimensions: 91.0 mm (L) x 75.0 mm (W) x 12 mm (H)
Reader Weight: 44 g
Cable Length: 1.5 m
Customs Code H.S.: 8471 90 00 00
Operating Temperature: 0°C to 50°C, 90% RH
Power Supply: Standard USB power (5V 500mA)
Software: Not included (documentation and drivers available here):
https://support.identiv.com/3700f/
For a quote, please contact us via the online form, send an email to info@rfidspecialist.eu or call us at +386 41 884 124. If you are an integrator or reseller, we offer special discounts.
