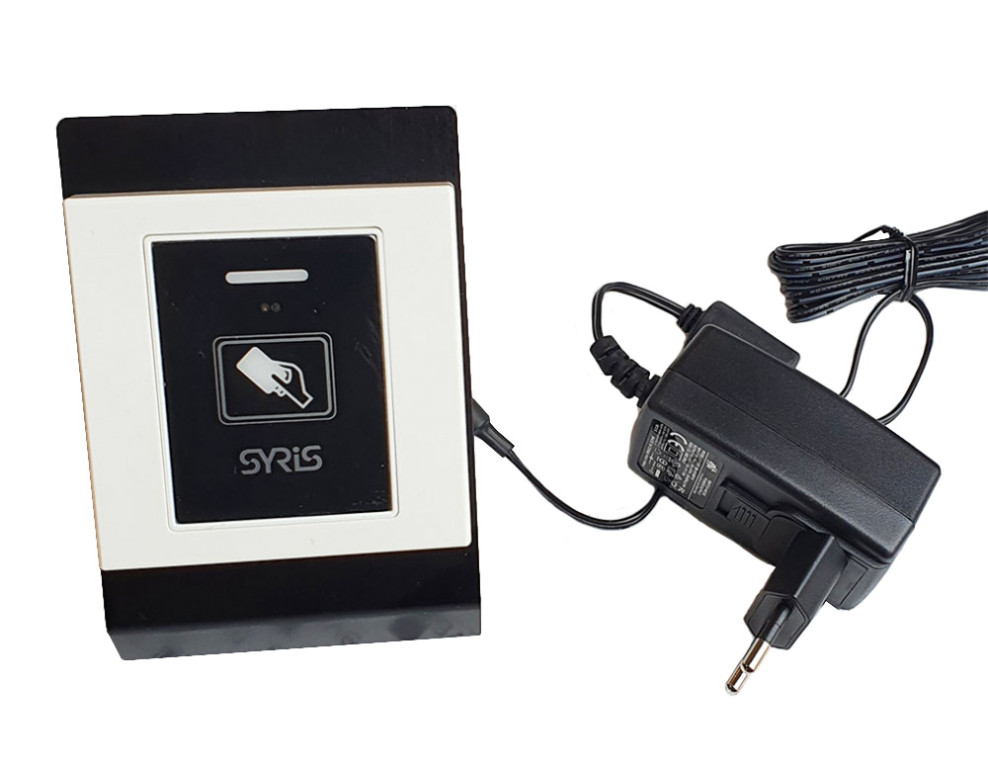

Syris SYUR86N-HU3 is a versatile RFID reader that allows you to read UHF and HF RFID cards and open the door with the help of two built-in relays.

Connection is possible via Ethernet port, Wi-Fi or Micro USB. Knowledge of programming and working with databases is required to establish a solution with this equipment. The reader comes with reader management software and sample programming code.

The maximum reading distance is up to 20 cm for UHF chips and up to 5 cm for HF chips.



Manufacturer:	Syris
Name:	Syris SYUR86N-HU3
Operating frequency:	840 ~ 960MHz & 13,56 MHz
UHF protocol:	EPC CLass 1 Gen2, ISO18000-6C
UHF reading distance:	up to 20 cm (depending on chip and antenna)
HF protocol:	ISO15693, ISO14443A, ISO14443B, Mifare
HF reading distance:	up to 5 cm
Status indicator:	RGB LED, buzzer
Interface:	Micro USB, Ethernet, Wi-Fi
Output:	2x realay
Power supply:	12 VDC
Energy consumption	1~6W
Operating temperature:	-10°C - 60°C
Size:	125 x 86 x89 mm

If you need larger quantities send an email to info@rfidspecialist.eu or call +38641 884 124 and we will be happy to help you.

If you are an integrator or reseller, we offer special discounts.
