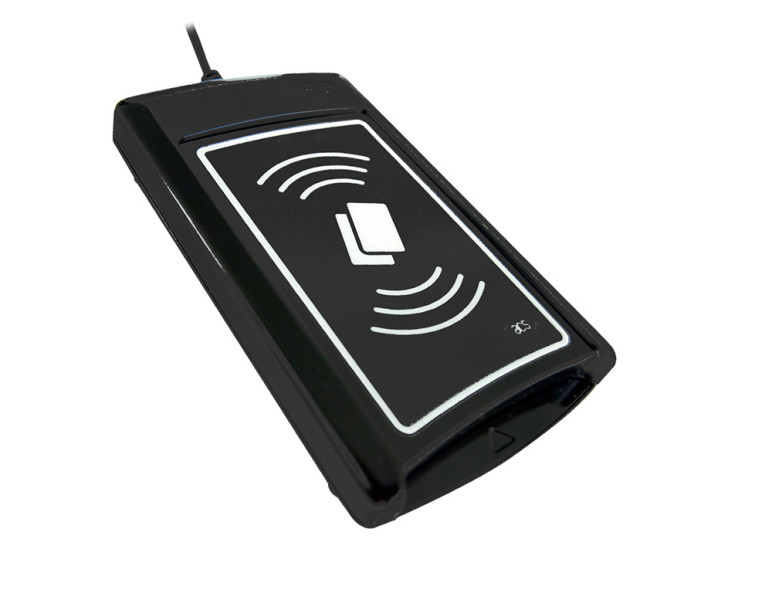

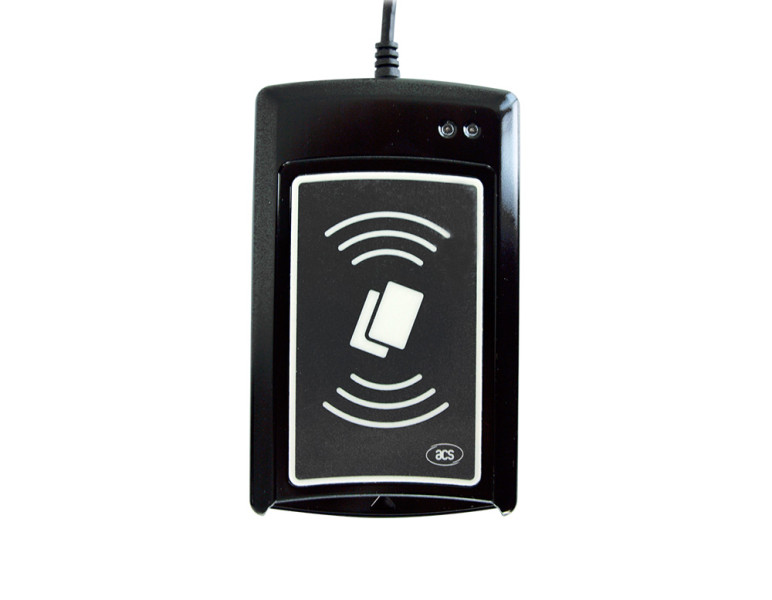

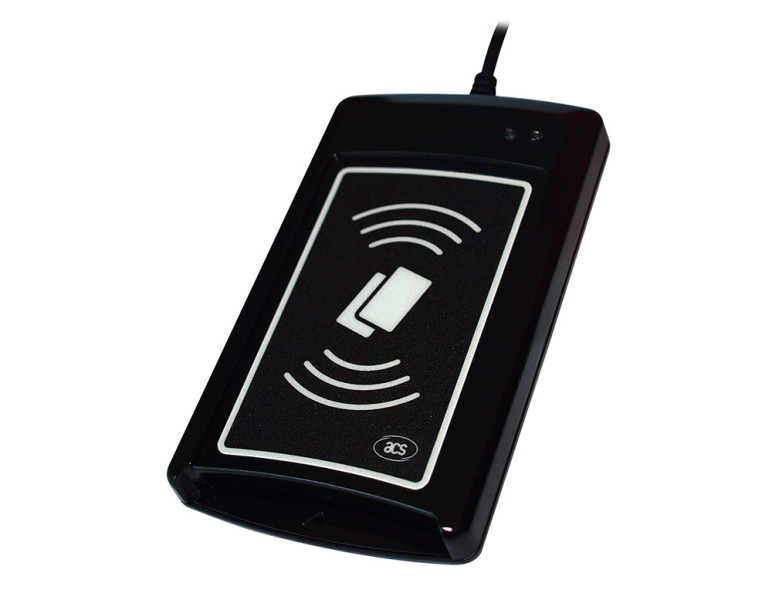

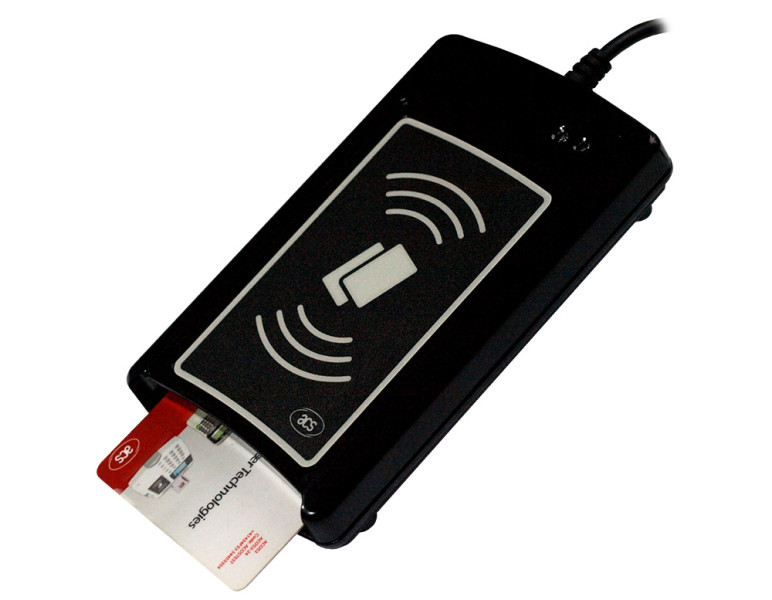

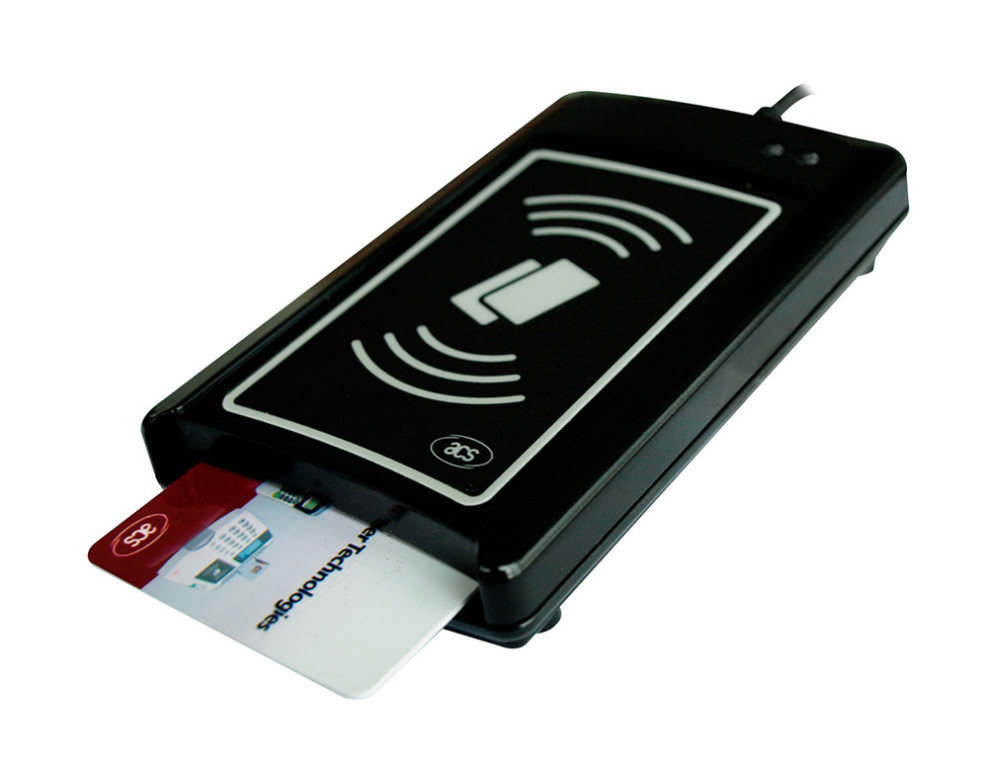

ACR1281U-C1 Card Reader for Contactless and Contact Chips
(Product ID: 1330)

Documents:
The ACR1281U-C1 DualBoost II is an advanced dual-interface smart card reader, capable of reading both contact and contactless smart cards.

It combines functionalities that typically require separate devices, enabling the use of a single reader for various applications.

The reader supports PC/SC protocols and is suitable for applications compatible with this device, as well as for developers capable of managing the device via API commands.

The contactless interface operates at a frequency of 13.56 MHz and is suitable for use with chips supporting the ISO 14443 Part 4 Type A and B protocols, as well as the MIFARE® series.

The contact interface supports memory cards and microprocessor cards compliant with ISO 7816 Class A, B, and C.

For further information or offer, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your queries.

If you are an integrator or reseller, we offer special discounts.
Article order inquiry
Send us your inquiry and we will answer you as soon as possible.
You message has been sent!
< Backward

Name and Surname:
Company:
Vat number:
Country:
E-mail:
Phone:

Articles, quantity, deadline:



INFO

The ACR1281U-C1 reader is designed for reading both contactless and contact chip cards.

It supports PC/SC protocols and can be managed using API commands.

API command lists and technical documentation are available on the manufacturer’s website:
https://www.acs.com.hk/en/products/159/acr1281u-c1-dualboost-ii-usb-dual-interface-reader

The contactless interface operates at a frequency of 13.56 MHz and is compatible with chips supporting ISO 14443 Type A protocols.

Technical Specifications:

USB 2.0 Full Speed Interface
CCID Compliant

Contactless Smart Card Reader:
  • Read/write speed up to 848 kbps
  • Built-in antenna for contactless tags with reading distance up to 50 mm (depending on tag type)
  • Supports ISO 14443 Part 4 Type A and B cards, and MIFARE® series
  • Built-in anti-collision feature (only one card accessed at a time)
  • Supports extended APDU commands (up to 64 kB)

Contact Smart Card Reader:
  • Supports ISO 7816 Class A, B, and C (5 V, 3 V, and 1.8 V)
  • Supports CAC (Common Access Card)
  • Supports PIV (Personal Identity Verification Card)
  • Supports microprocessor cards with T=0 or T=1 protocol
  • Supports memory cards
  • ISO 7816-compliant SAM slot

Application Programming Interface:
  • Supports PC/SC
  • Supports CT-API (via wrapper over PC/SC)

Built-in Peripherals:
  • Two user-controllable LED indicators
  • User-controllable buzzer
  • Firmware upgradeable via USB
