INFO

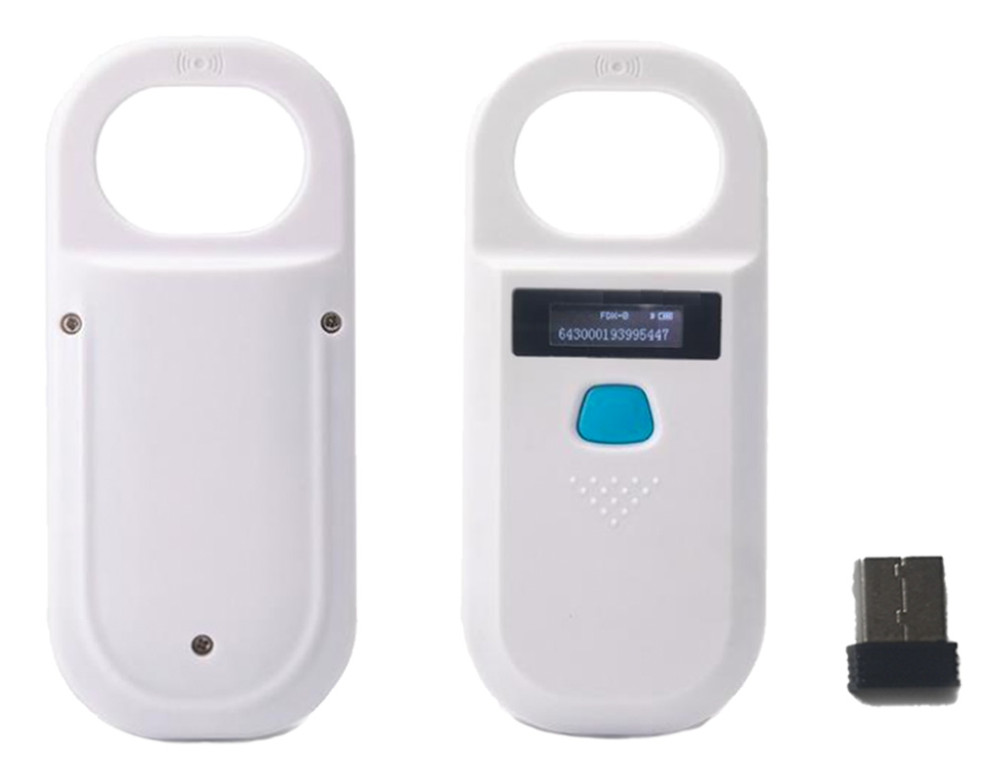

Handheld animal tag scanner that supports reading of FDX-B chips (ISO11784/85), EM4200 chips and other RFID chips which are operating on a frequency of 125 kHz.

This reader is very simple to use and is widely used for little animal identification and management.

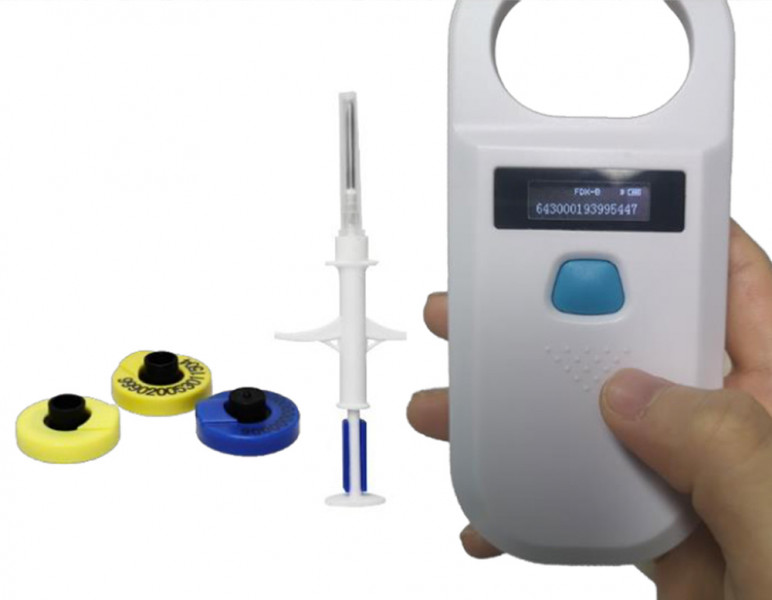

After scanning the animal ID chip, the ID code of the microchip is displayed on the screen and it is stored in the reader's memory.

Transferring the ID codes to your computer is very simple. When inserting the included USB Bluetooth dongle into the computer with the Windows operating system, the necessary drivers will be loaded automatically. After opening the Notepad or Excel table and pressing the blue button on the reader, the ID codes will be shown on screen automatically.

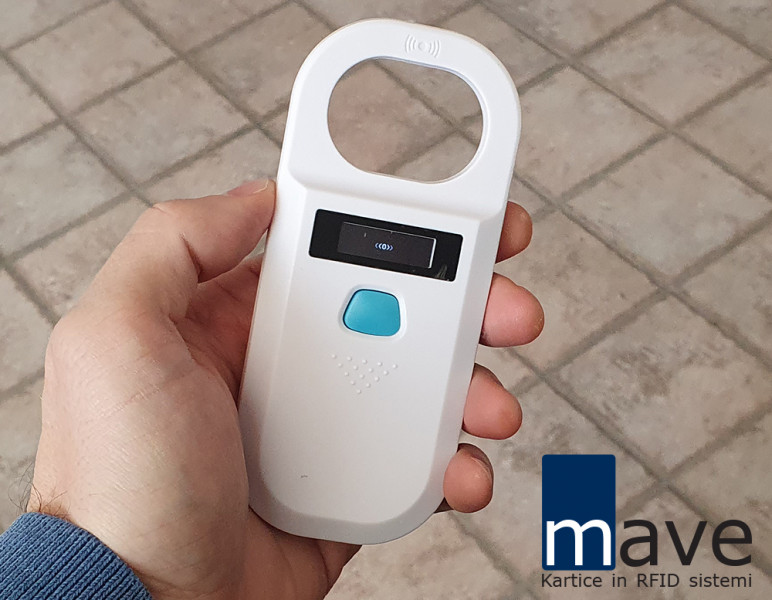

This scanner uses a high brightness OLED display which can be seen clearly in a bright light environment.

The reader contains a rechargeable battery and is charged via a USB port.

Brief instructions for use

Power on - To power on, press the blue button and the screen reading function will automatically start, it will say (((((0))))) After a successful reading, the animal chip ID code will be displayed on the screen.

Shutdown - The device shuts down automatically after 120 seconds of inactivity.

PC connection - To connect the reader to a computer, insert the included USB dongle into the computer. Open any program where you want to transfer the readings (Excel, Notepad...). Press the blue button on the scanner and hold it for 3 seconds. The download will be done automatically. Each code will be entered on its own line.

Data deletion - When we exceed 128 readings, the reader automatically excludes old readings - they are overrun with new ones.

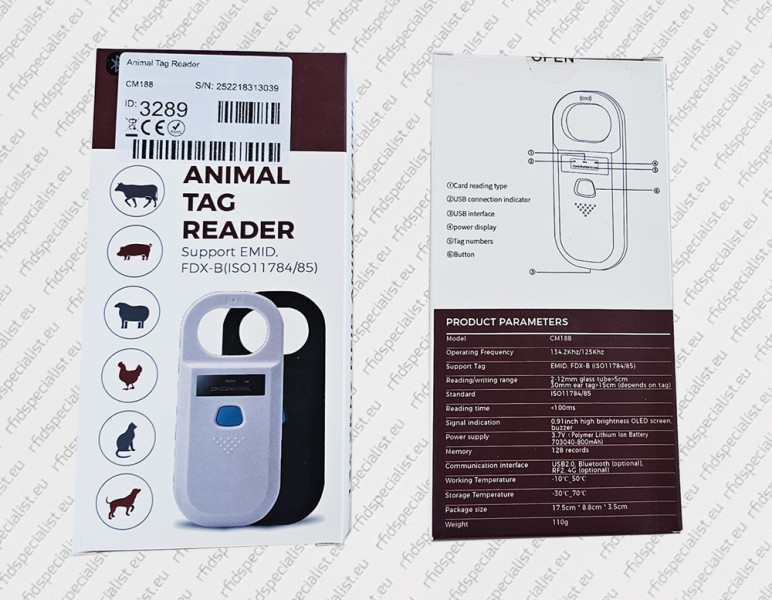

Technical specification

Model: CM188
Size: 135 x 60 x 15 mm (length, width, thickness)
Frequency: 134.2 kHz and 125 kHz
Modulation: FDX-B (ISO11784-85) and EM4200, TK4100
Reading distance: approx. 5-10 cm (depending on the type of microchip)
Reading speed: <100ms
Reader memory: 128 codes, then run over old entries
Interface: USB 2.0, Bluetooth
Weight 110 g
Language: English
Battery: rechargeable 3.7 V (charging via micro USB)
Operating temperature: -10°C to 50°C
