Wireless Doorbell with Button
(Product ID: 3863)

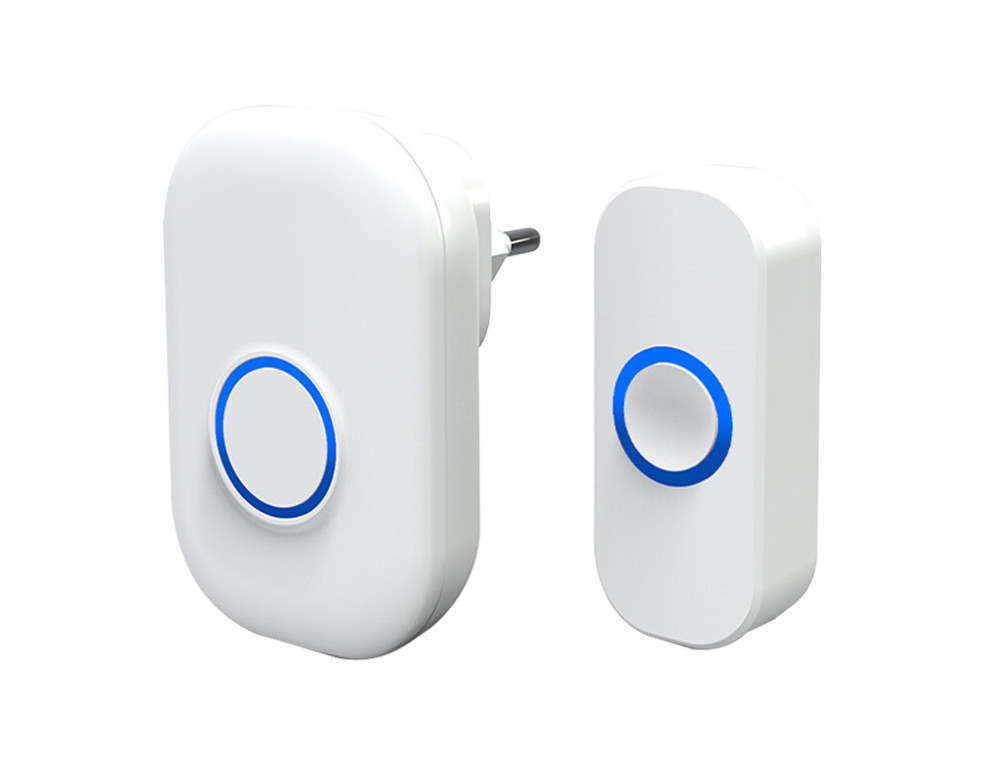

This wireless doorbell set consists of a transmitter button and a chime receiver.

The transmitter (button) is powered by a CR2032 battery and can be mounted outside the entrance using adhesive tape or screws.

The chime receiver plugs directly into a 220V wall socket inside the building.

Communication between the transmitter and receiver is wireless, with a maximum range of up to 180 meters in open space. Please note that walls and other interference sources can significantly reduce the effective range. We recommend testing the range and functionality before final installation.

The system uses a Self-Learning Code protocol, and the chime receiver can be paired with multiple buttons.

For further information or a quote, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer any of your questions.

If you are an integrator or reseller, we offer special discounts.

Price/item: 17,14 EUR (with vat 20,91 EUR)

Status: In stock

Dispatching time: 1-3 days

Colour:

Product ID: 3863

Quantity:

Total:

17,14 EUR

Total with vat:

20,91 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

Features:

Complete set with wireless transmitter button and chime receiver
No wiring or drilling required
Range up to 180 m (in open space); range is reduced by walls and other obstacles
Up to 32 selectable chime melodies
4 adjustable volume levels (25–85 dB)
Self-learning code protocol supports pairing with multiple transmitters
Button is suitable for outdoor use (IP44 – water protection recommended)
4 LED indicator modes: (Sound + Flash, Sound only, Flash only, Always Sound + Flash)
Settings are retained after power-off

Technical Specifications:

Receiver power supply: 110–240V AC, 50–60Hz
Sound volume: 25–85 dB
Communication frequency: 433 MHz (Self-Learning Code)
Receiver standby power consumption: <0.5W
Transmitter power supply: 1 × CR2032 battery
Transmitter output power: <10mW

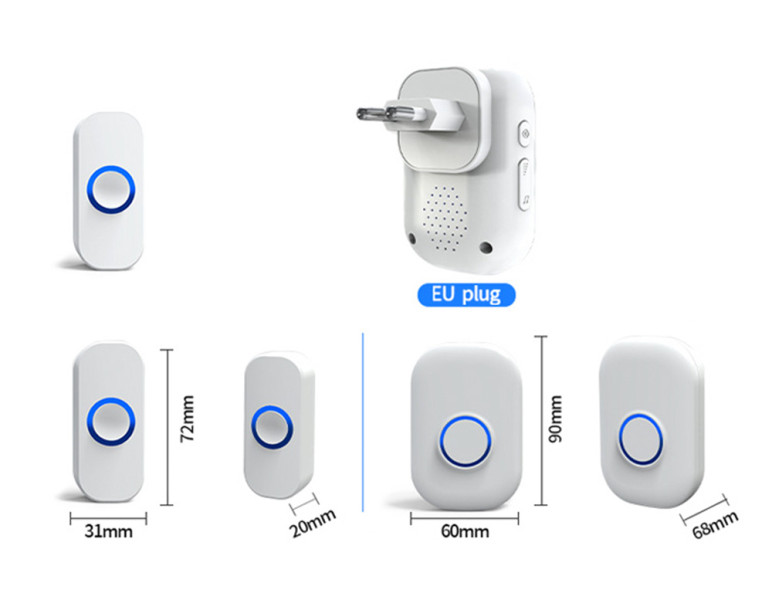

Transmitter dimensions: standard button size
Receiver installation: plugs directly into a wall socket

Installation Instructions:

Remove the battery insulation tab from the transmitter.
Test the connection at the desired locations before final mounting.
Peel off one side of the double-sided adhesive tape and attach it to the back of the transmitter.
Peel off the second side of the tape and press the transmitter firmly onto the surface. Alternatively, mount it with screws.
Plug the receiver into a wall socket within range.
Use the chime and volume buttons to select the preferred melody and volume.
Use the Melody & Light button to cycle through LED indicator modes. Confirm your selection by pressing the transmitter button.

Pairing Additional Transmitters (Self-Learning Code):

The button and chime are factory-paired.

To add a new button:

Press and hold the “Melody & Light” button on the receiver for 5 seconds until a bird sound is heard (pairing mode).
Press the new button twice within 30 seconds. If the chime rings, pairing is successful.
Repeat the process for each additional button.
To Remove All Pairings:
Press and hold the “Melody & Light” button for about 10 seconds until the chime plays two ‘dingdong’ tones. All buttons will be unpaired.

For further information or a quote, contact us at info@rfidspecialist.eu.
Our team of experts is here to assist and answer any of your questions.

If you are an integrator or reseller, we offer special discounts.
