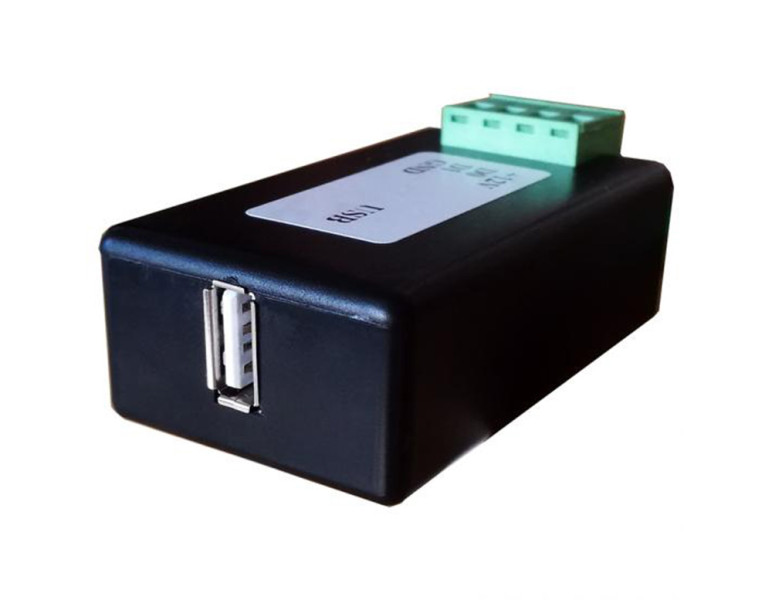

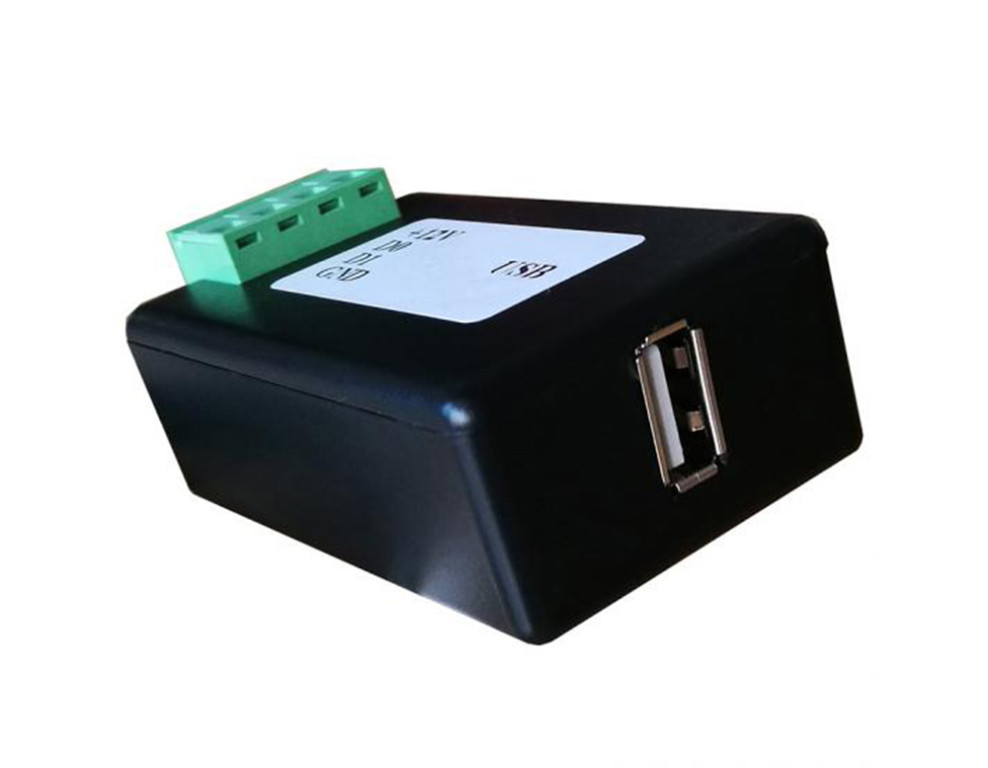

USB-WG Converter for Connecting USB Readers to Controllers via Wiegand Protocol
(Product ID: 3807)

The USB-WG is a communication converter that allows you to connect a USB reader to an access control controller via the Wiegand interface.

With this converter, you can connect virtually any USB reader to an access control system and use existing RFID cards, barcodes, QR codes, or magnetic stripe cards to open doors.

For further information or a quote, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer any of your questions.

If you are an integrator or reseller, we offer special discounts.

Price/item: 79,50 EUR (with vat 96,99 EUR)

Status: In stock

Dispatching time: 1-3 days

Product ID: 3807

Quantity:

Total:

79,50 EUR

Total with vat:

96,99 EUR

Add to cart

Do you need print or other specific requirements?

Send inquiry

INFO

Example Use Case of the USB-WG Converter

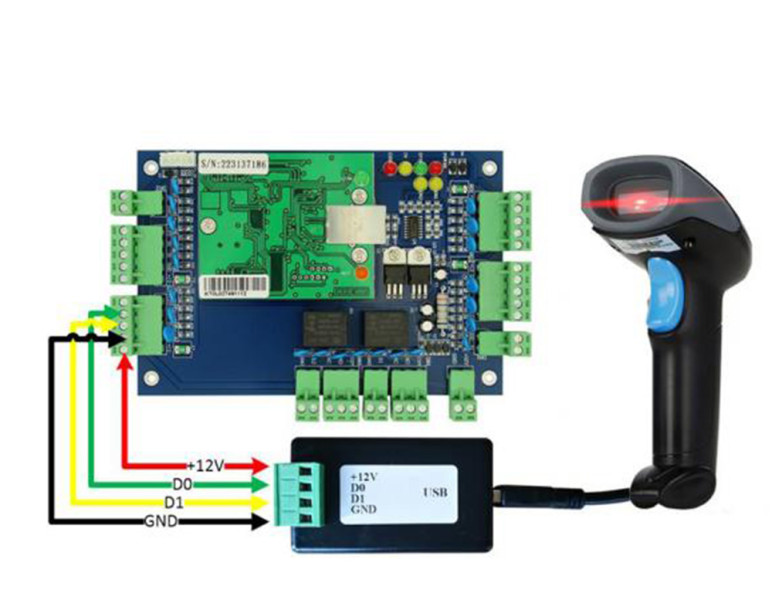

If a company already has a time and attendance system that uses specific RFID cards, the USB-WG converter can be used to connect a USB reader (acting as a keyboard emulator) to an access control controller. This allows the same cards to also be used for door access.

Example of converting a 10-digit decimal code to Wiegand 26-bit or Wiegand 34-bit format:

4-byte ID code: 1010795316 (10 DEC) = (hex) 3C3F8334

WG26 input (hex): 3F8334 (last 6 digits)

WG34 input (hex): 3C3F8334 (all 8 digits)

Application:
Used to connect any USB reader to a controller via the Wiegand protocol.
