INFO

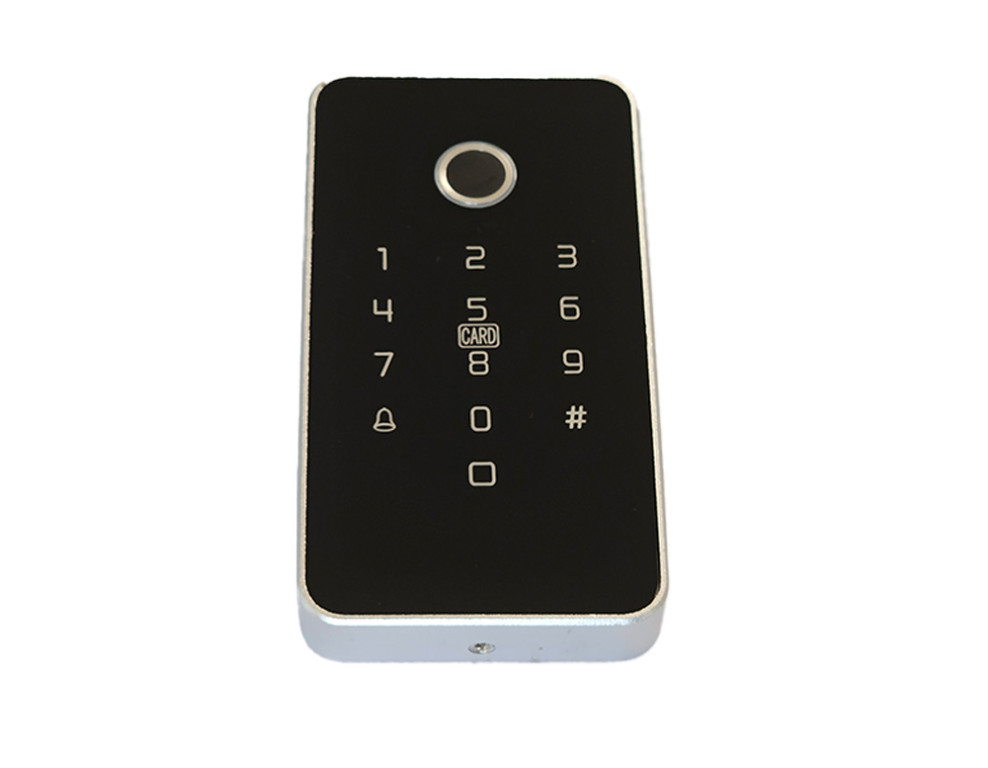

SDC-FT1000 is a security system designed to control access to a door or entrance. This type of device allows authorized individuals to gain entry to a secure area through the use of a fingerprint scan, a PIN code, or an RFID chip.

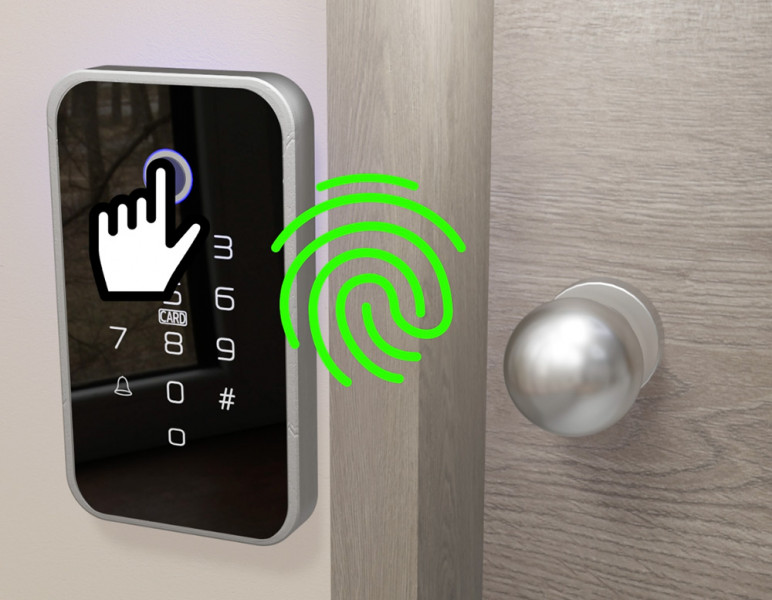

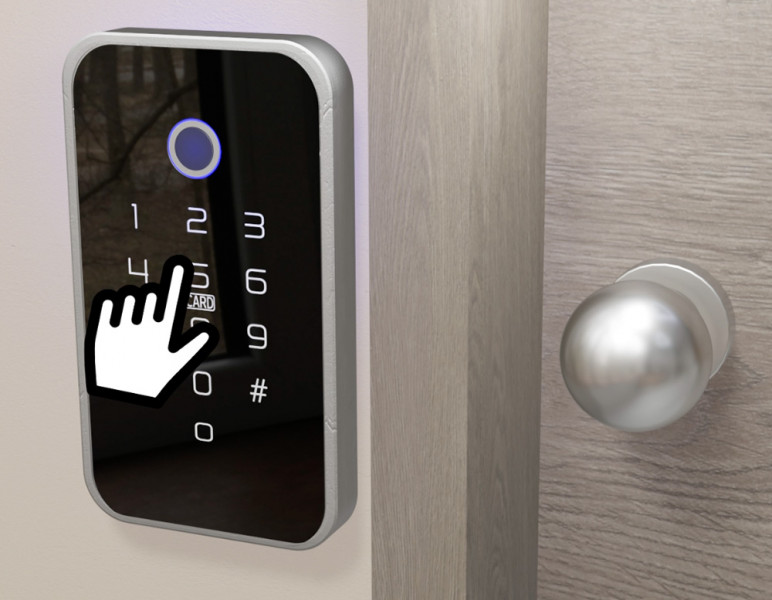

When a person approaches the door, they can enter their unique PIN code on the keypad, present their RFID chip to the reader, or place their finger on the fingerprint scanner. If the information matches what is stored in the system's database, the door will unlock and allow entry.

One of the main advantages of an access control device with multiple authentication methods is that it provides a high level of security. If one method fails, there are still other methods that can be used to gain access. In addition, the device can be programmed to require multiple forms of authentication for added security.

Access control devices with fingerprint, PIN code, or RFID chip are commonly used in medium to large businesses, government facilities, and other high-security areas. They can also be used in residential settings for added security.


Technical specification

Model: SDC-FT1000
Dimension: 145 x 78 x 18.50 mm
Power supply: 12 V DC (the device does not contain a power supply)
Frequency: 125 kHz or 13.56 MHz (we recommend using RFID chips with a frequency of 125 kHz, because the reading distance is 3-5 cm)
Housing: Metal, waterproof, IP65
Mode of operation: Independent access control system with fingerprints, PIN code or RFID chips
Number of users: 1000
Indicators: Ice, beeping
Operating temperature: -10°C to 60°C
Humidity: 20% to 90%
Reading range of the reader: 3-6 cm

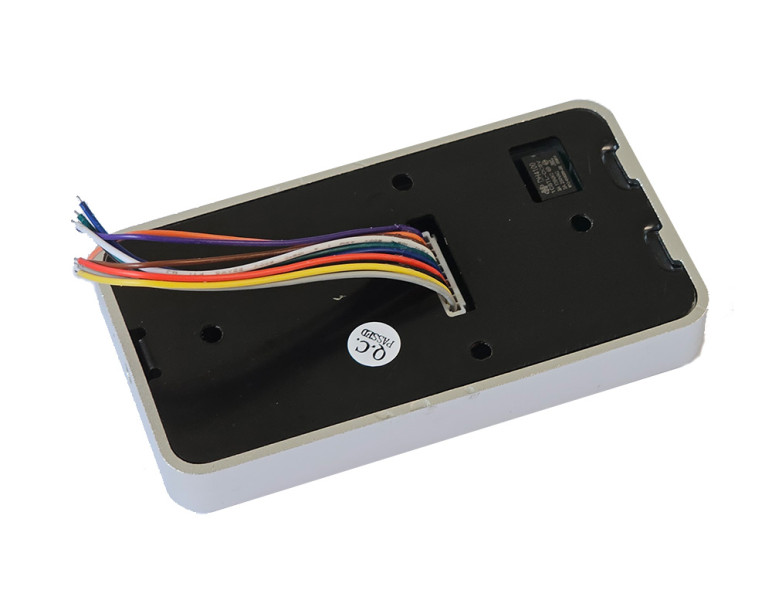

Additional: Enables the connection of an exit button, enables the connection of a doorbell, enables the transfer of users to a new device via data transmission lines D0 and D1.


If you need larger quantities send an email to info@rfidspecialist.eu or call +386 41 884 124 and we will be happy to help you.

If you are an integrator or reseller, we offer special discounts.
