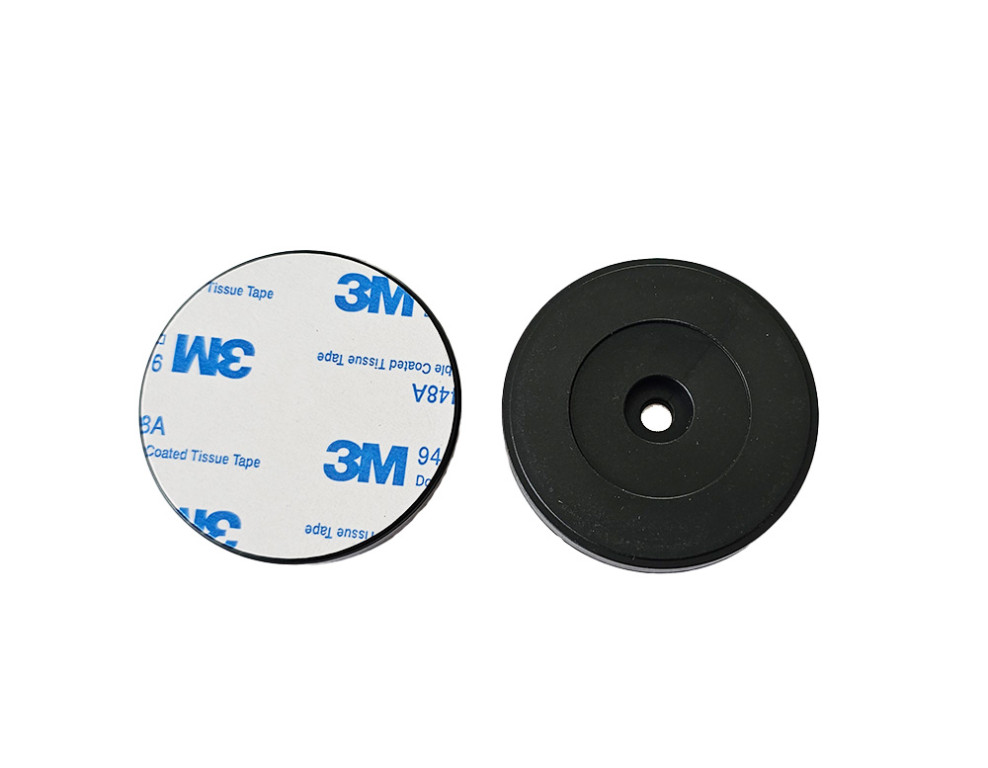

Robust NFC tags with the NTAG213 chip are NFC tags with a solid housing made of ABS material. They have a 5 mm hole for a screw or nail in the middle, and a strong 3M adhesive. They can be used even on metallic surfaces.
These stickers contain the NTAG213 NFC chip, which is one of the most commonly used NFC chips, and contains a unique 7-byte ID number that is programmed at the factory and cannot be changed, and 144 bytes of memory for entering a url address or other information.
The NTAG213 chip works in accordance with the ISO/IEC 14443 Type A protocol.
Using robust NFC tags with the NTAG213 chip
- for promotional purposes
- for product identification
- to identify the location
- for personal use
Reading distance for robust NFC tags with the NTAG213 chip
We tested these labels with different types of readers and measured the reading distances. This is not an official test, but was made to inform you of the reading distances you can expect with your app.
NFC sticker reading test with a diameter of 30 mm
Reading distance is affected by many different factors, such as antenna size and chip quality, metal interference and electromagnetic signals, etc.
Technical specification
NFC chip: NTAG213 (NFC Type 2)
Chip manufacturer: NXP Semiconductors
Protocol: ISO/IEC 14443 Type A.
Data retention time: 10 years
Frequency: 13.56 MHz
Reading distance: up to 10 cm (usually up to 5 cm)
Dimensions:
- round, diameter 30 mm, thickness 5 mm
Material: ABS
For further information or offer, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your queries.
