INFO

NFC Stickers with MIFARE DESFire EV3 4K chips operate at a frequency of 13.56 MHz and are compatible with the RFID ISO/IEC 14443-4A/B and ISO/IEC 7816 standards. The chip contains a 7-byte long unique ID number (UID) and 4 kilobytes of memory.

The security of the MIFARE DESFire EV3 chip is ensured by multiple hardware and software cryptographic mechanisms (DES and AES). The data retention period for these chips is 25 years.

MIFARE DESFire EV3 chips are typically used for NFC applications that require the highest level of security: access control, public transportation, cashless vending, etc.

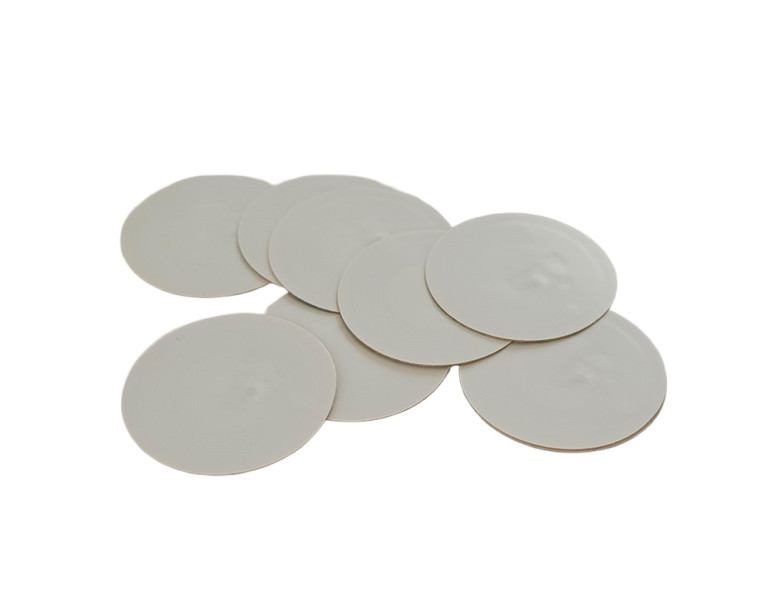

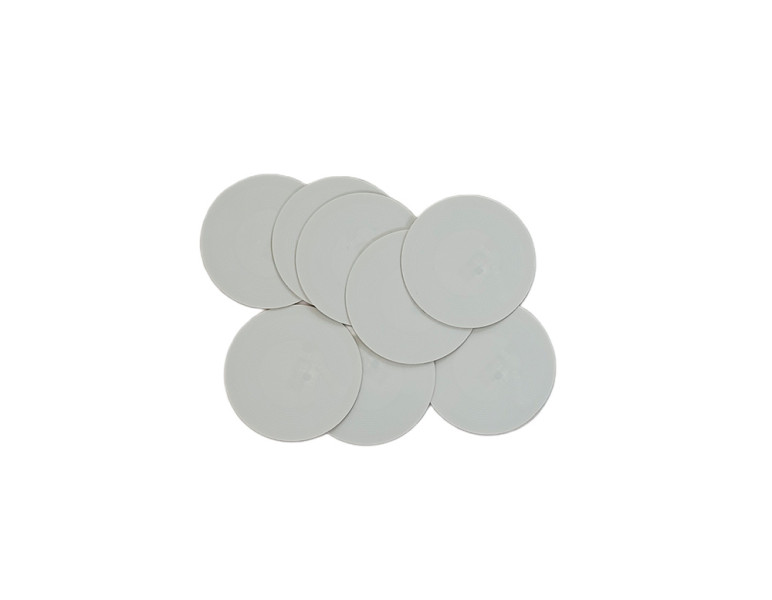

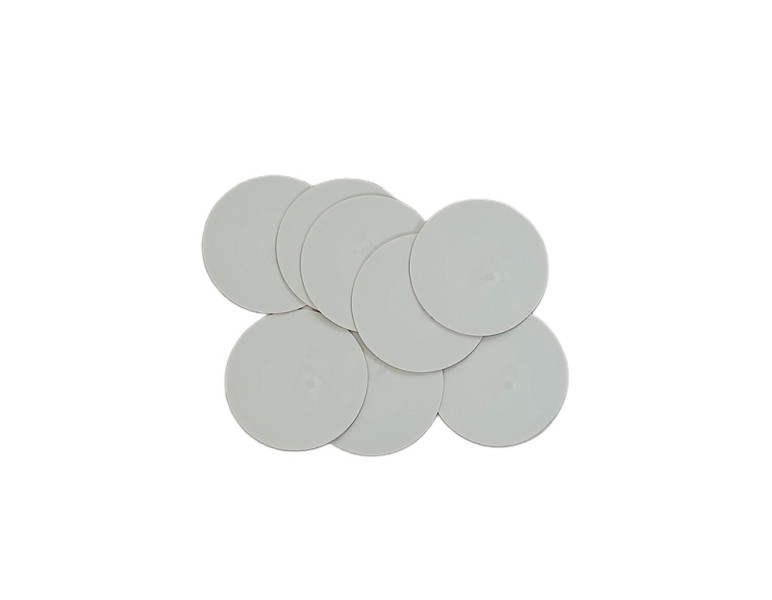

Our plastic stickers with MIFARE DESFire EV3 4K chip have a memory capacity of 4 KB, are waterproof, have a diameter of 30 mm, and are approximately 0.3 mm thick. The stickers are white, without numbers or other printed elements.

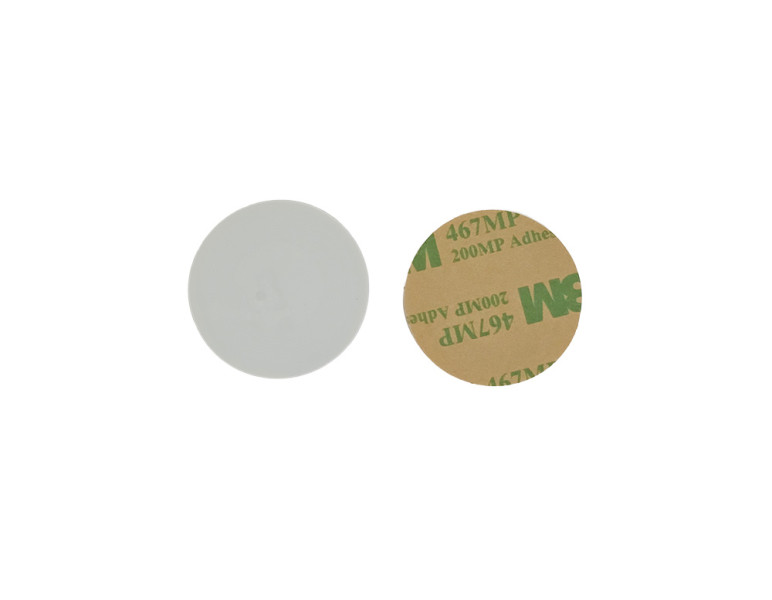

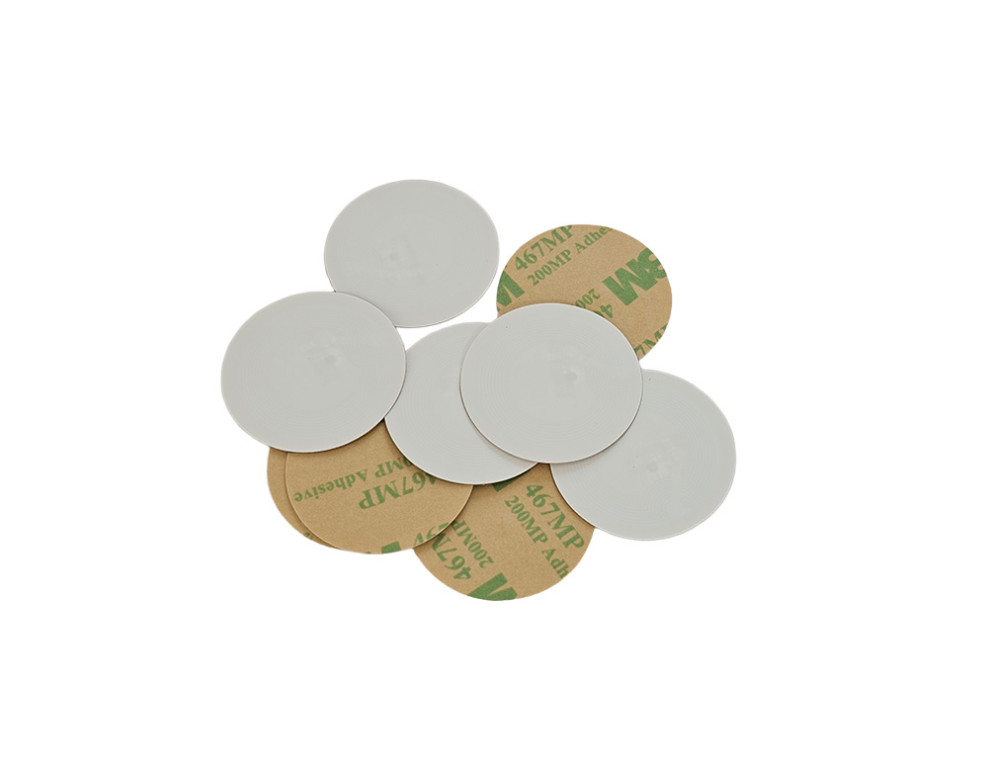

The top layer is made of white plastic material (PET), the middle layer contains the chip, and the bottom layer is adhesive.

They can be used on glass, wood, walls, or other plastic materials. However, they are not suitable for use on metallic materials such as metal door frames, promotional boards, electronic equipment with metal housings, etc.

Technical Specifications

Manufacturer: NXP Semiconductors
Chip: MIFARE DESFire EV3 4KB
ISO/IEC Standards: 14443-4A/B and ISO/IEC 7816
Memory Size: 4 KB of data
Security: DES and AES hardware cryptographic mechanism for secure transactions, 7-byte pre-programmed unique chip ID number
Operating Frequency: 13.56 MHz
Reading Distance: typically up to 5 cm
Sticker Diameter: 30 mm
Thickness: approx. 0.3 mm
Material: plastic (PET)
Printing Options: printing available upon request

These NFC stickers are not suitable for use on metallic materials.

For further information or offer, contact us at info@rfidspecialist.eu.
Our team of experts is here to assist and answer all your queries.

MIFARE®, MIFARE CLASSIC®, DESFire®, ICODE® are registered trademarks owned by NXP B.V. Between NXP B.V. and Mave d.o.o. there is no connection.
