Wireless Wiegand Reader for 125 kHz Chips and PIN Code
(Product ID: 3827)

This wireless Wiegand reader can be used with any door access controller that features a Wiegand input.

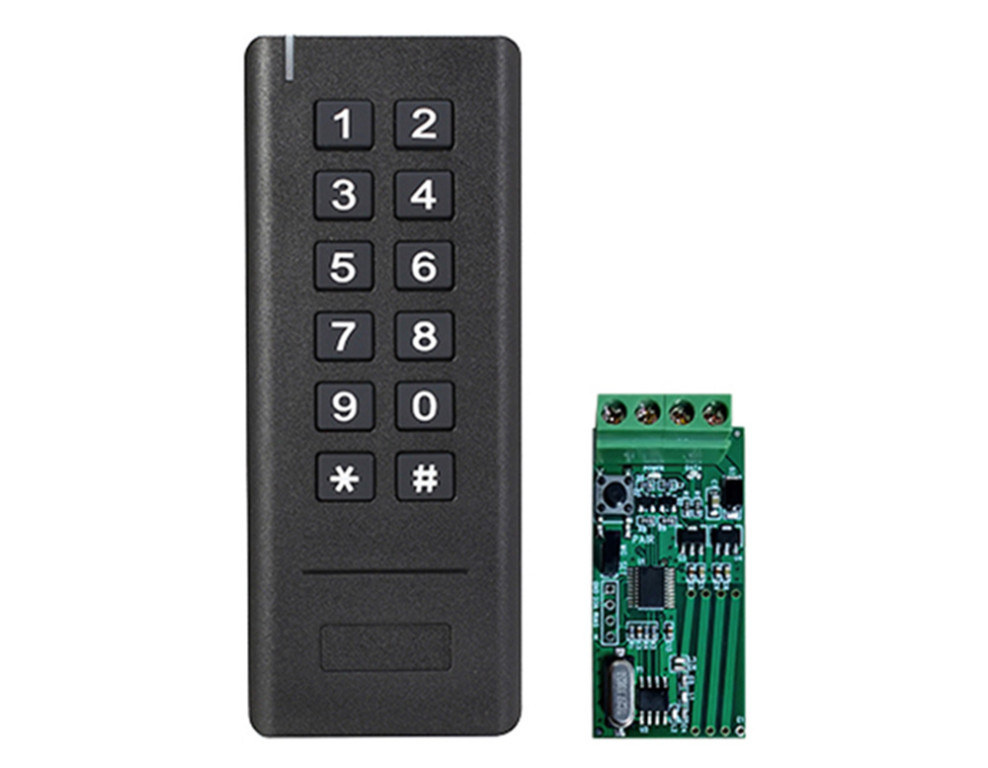

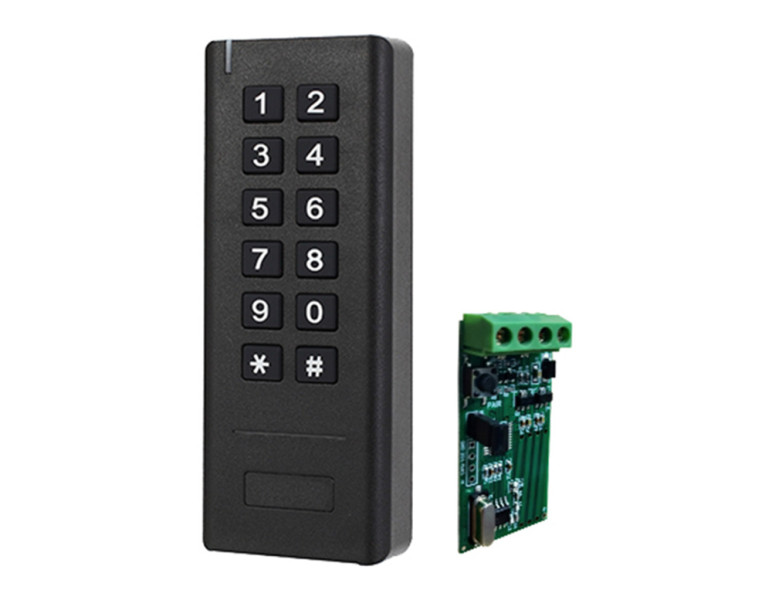

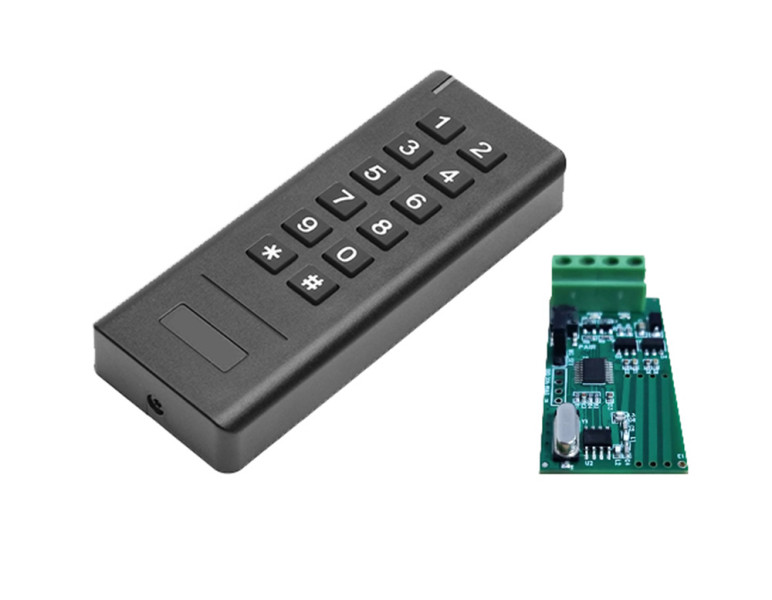

In this setup, a receiver is connected to the controller, and the reader wirelessly sends the signal to the receiver.

The reader reads the chip's ID code and transmits it to the controller via the Wiegand protocol.

It is compatible with read-only chip types such as EM4200, TK4100, and encoded chips like T5577.

This is not a standalone door access device—it is designed to work in conjunction with a controller.

Communication between the reader and the receiver is secured using a Rolling Code protocol.

For further information or a quote, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your questions.

If you are an integrator or reseller, we offer special discounts.
Price/item: 38,00 EUR (with vat 46,36 EUR)
Status: In stock
Dispatching time: 1-3 days
Product ID: 3827

Quantity:

Total:
38,00 EUR

Total with vat:
46,36 EUR
Add to cart
Do you need print or other specific requirements?
Send inquiry



INFO

This reader is commonly used in access control systems where wired connections between the reader and the controller are not available or are to be avoided.

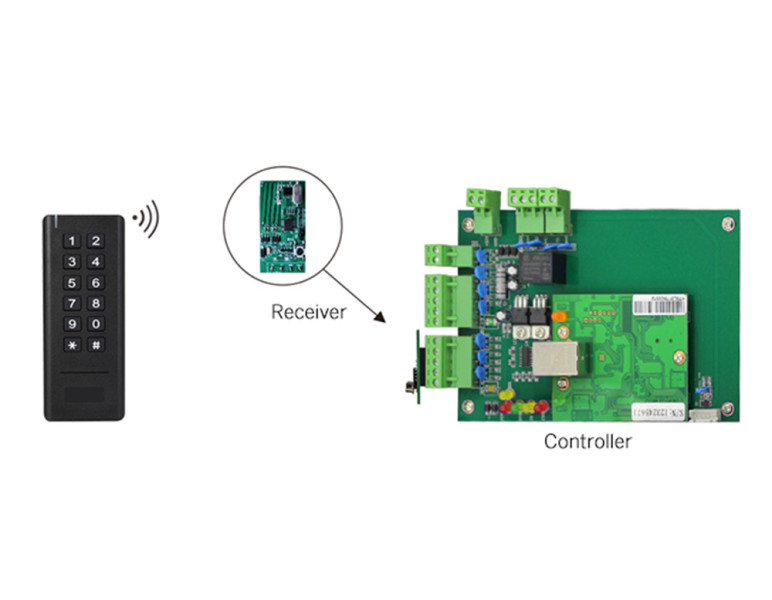

The reader captures either the chip ID or the PIN code and transmits it wirelessly to the receiver, which then forwards it to the controller.

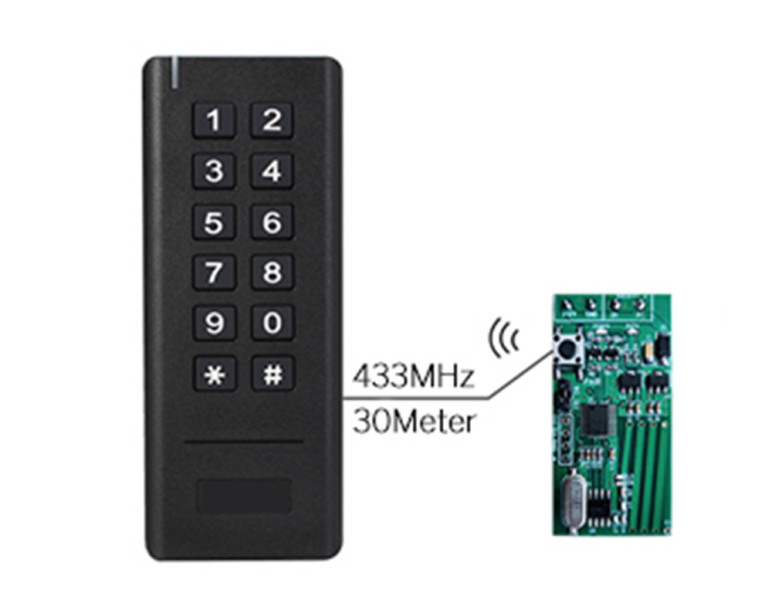

Communication between the reader and the receiver operates at 433 MHz and is protected with Rolling Code encryption.

Communication between the receiver and the controller uses the Wiegand protocol (26 or 34 bit).

Technical Specifications

Model: SDC-KW1 EM
Frequency: 125 kHz
Compatible RFID Chips: TK4100, EM4200, encoded T5577, etc.
Reader Dimensions: 134 x 55 x 20 mm
Material: ABS plastic
Reading Protocol: Wiegand 26/34
PIN Code: 4 to 6 digits
Reading Distance: up to 3 cm

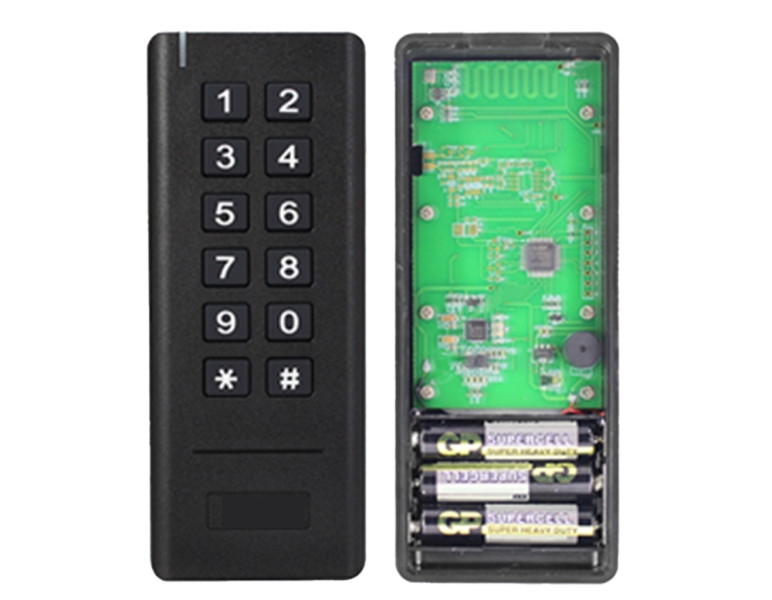

Reader Power Supply: 3 × AAA batteries
Current Consumption (idle): up to 5 µA
Current Consumption (active): 45 mA
Operating Temperature: -20°C to 60°C
Humidity Range: 10%–86%
Reader Weight: 100 g
Receiver Power Supply: 12V DC
Receiver Dimensions: 25 x 50 mm
Distance Between Reader and Receiver: up to 30 m
Receiver Weight: 10 g

For further information or a quote, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your questions.

If you are an integrator or reseller, we offer special discounts.
