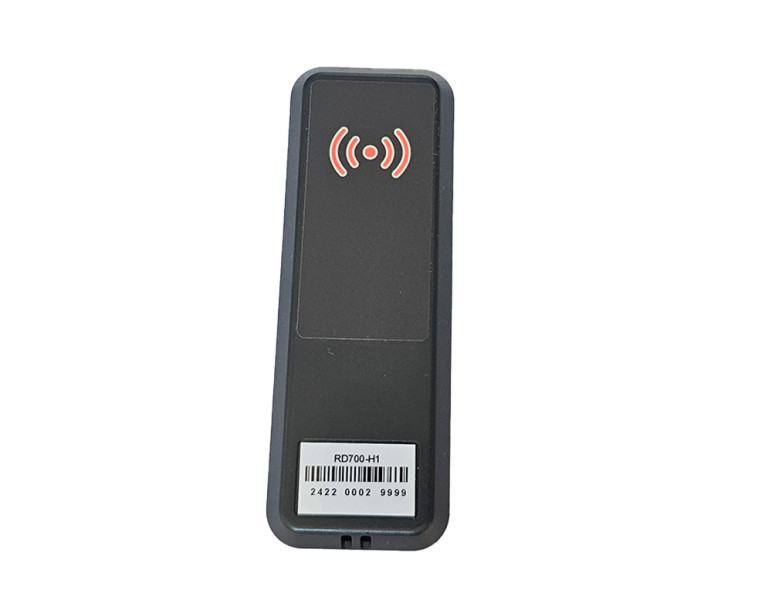

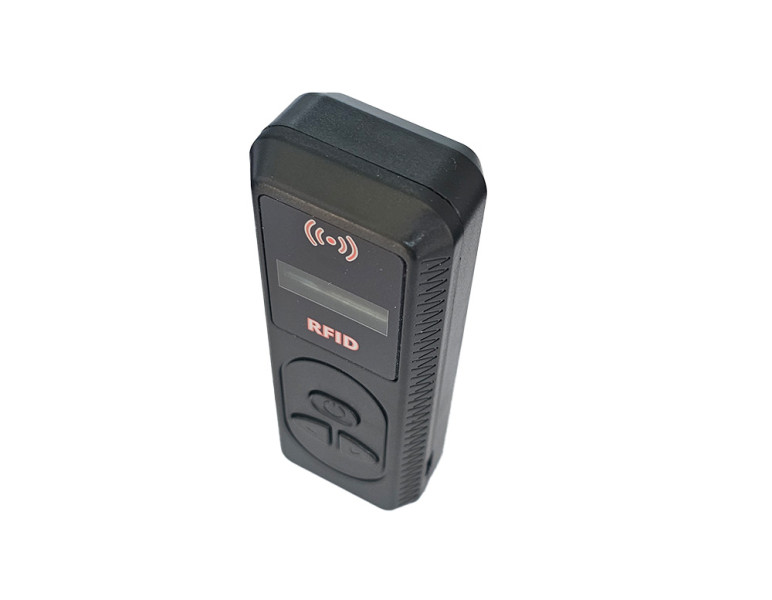

SYRIS RD700-H1 Portable RFID Reader with Bluetooth Connectivity
(Product ID: 3689)

IN
STOCK

RD700-H1 Bluetooth HF RFID Reader is a handheld device designed for reading RFID tags.

This reader operates over Bluetooth, allowing it to wirelessly transmit data to other devices such as smartphones, tablets, or computers.

It operates at a frequency of 13.56 MHz and reads chips that support the ISO14443A, ISO14443B, ISO15693, and MIFARE protocols.

It is commonly used for applications like asset tracking, inventory management, and for other identification purposes.

For a quote, please contact us via the online form, send an email to info@rfidspecialist.eu or call us at +386 41 884 124. If you are an integrator or reseller, we offer special discounts.

Article order inquiry

Send us your inquiry and we will answer you as soon as possible.

You message has been sent!

< Backward

Name and Surname:

Company:

Vat number:

Country:

E-mail:

Phone:

Articles, quantity, deadline:

Enter code

Send inquiry

INFO

The RD700-H1 Bluetooth HF RFID Reader is a versatile device designed to read multiple ISO format high-frequency (HF) cards, ensuring compatibility across a wide range of RFID systems.

It features built-in memory to store read data, making it ideal for scenarios where immediate transmission is not possible.

With Bluetooth transmission capabilities, it can wirelessly communicate with other devices over a range of up to 20 meters.

Additionally, it offers a customizable development protocol, allowing for seamless integration into various applications and systems.

Key features of the RD700-H1 Bluetooth HF RFID Reader include:

Bluetooth Connectivity: Enables wireless data transfer to compatible devices.
High-Frequency RFID: Operates in the 13.56 MHz range, suitable for reading NFC tags and other HF RFID applications.
Handheld Design: Portable, making it easy to use in various environments, such as warehouses, retail, and fieldwork.

It is typically used in industries that require efficient data collection and management without the need for complex wired setups.

Technical specifications for SYRIS D700-H1 Portable RFID Reader with Bluetooth Connectivity

Display: 0.91" OLED display
HF RFID Frequency: 13.56MHz (option 125K)
HF Read Range: up to 5 cm (depends on tag’s antenna)
HF Card Types: ISO14443A / ISO14443B / ISO15693 / MIFARE
Storage: 1000 records (option 100,000)
Interface: Bluetooth / USB Type-C(CDC)
Bluetooth support: Bluetooth HID Keyboard (option Bluetooth 5.0 BLE / SPP)
Bluetooth: transmission range up to 20m
Button: 3 buttons
Status Indicator: Display & LED R/G/B & Beeper
Operating Temperature: -10°C ~ 60°C
Battery: 3.7V 900mAH Rechargeable Lithium Battery
Charge Power: USB power - 5V 500mA
Size(mm): 40 (W) x 100 (H) x 25 (D)mm
