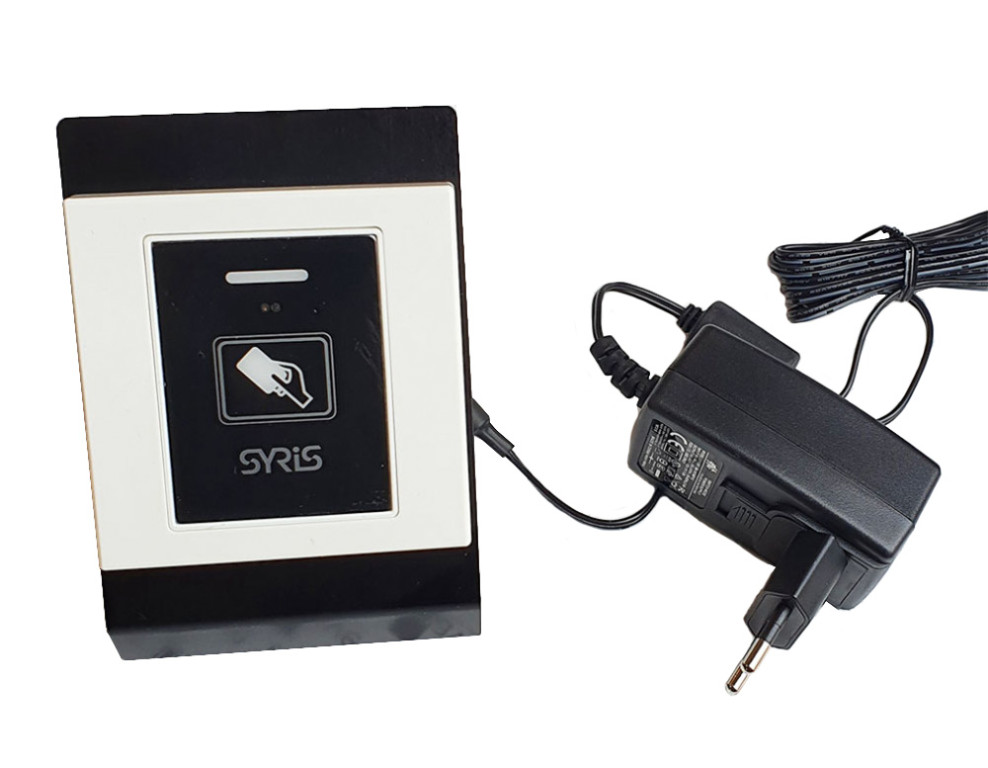

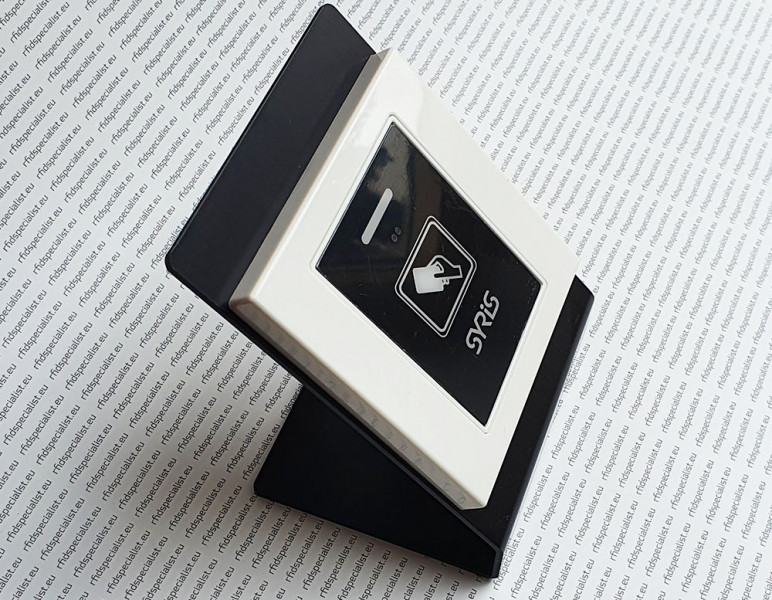

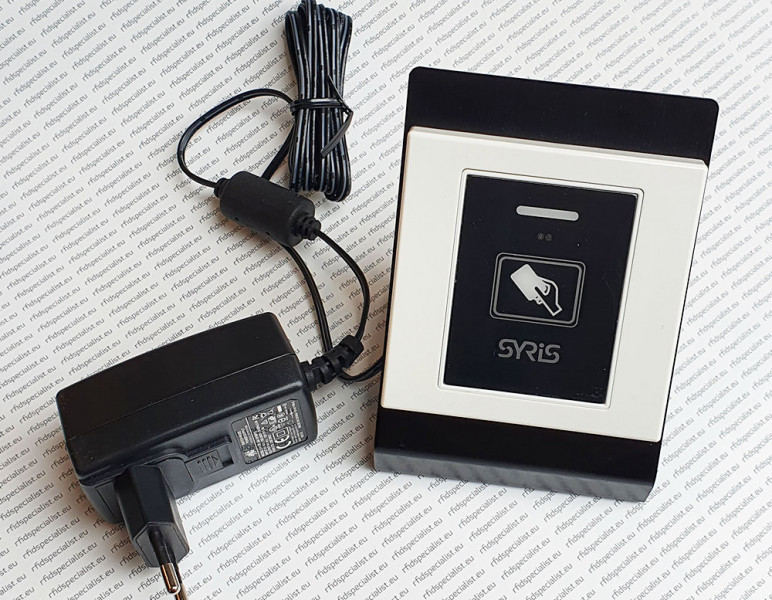

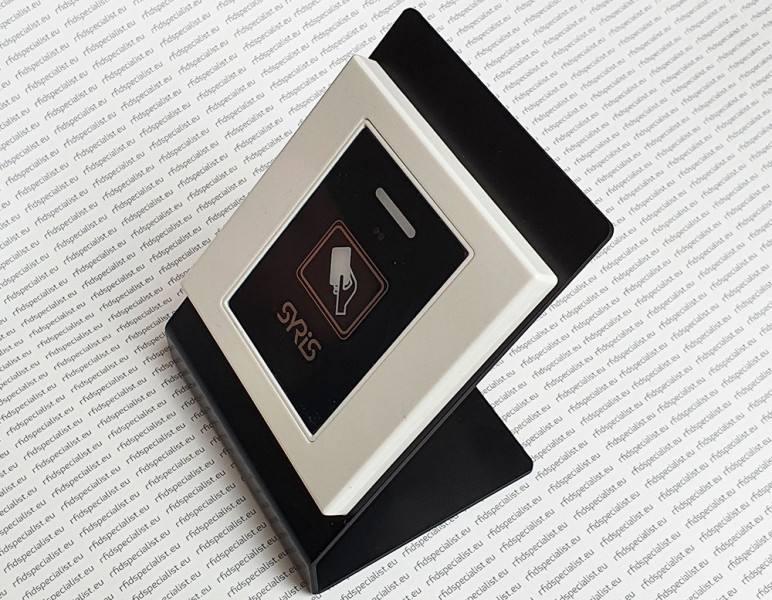

Syris SYSR86N-H3 NFC reader with Ethernet & WiFi connection
(Product ID: 3278)

Documents:
Syris SYSR86N-H3 reads the UID numbers of Mifare® and other NFC chips.

This reader supports connection via Ethernet, Wi-Fi and Micro USB. It contains two relays that can be used for access control or a similar application.

If you need larger quantities send an email to info@rfidspecialist.eu or call +38641 884 124 and we will be happy to help you.

If you are an integrator or reseller, we offer special discounts.
Article order inquiry
Send us your inquiry and we will answer you as soon as possible.
You message has been sent!
< Backward

Name and Surname:
Company:
Vat number:
Country:
E-mail:
Phone:

Articles, quantity, deadline:



INFO

The Syris SYSR86N-H3 RFID reader is a versatile device that allows you to read NFC chips, Mifare® and other 13.56MHz chips. It can control two inbuilt relays and is therefore suitable for access control and similar applications.

Connection is possible via Ethernet port, Wi-Fi or Micro USB. Knowledge of programming and working with databases is required to create a solution with this equipment. The reader comes with reader management software and source code examples.

Maximum reading distance up to 5cm.

Manufacturer: Syris
Name: Syris SYSR86N-H3
HF protocol ISO15693, ISO14443A, ISO14443B, Mifare
HF reading distance: up to 5 cm
Status indicator: RGB LED, buzzer

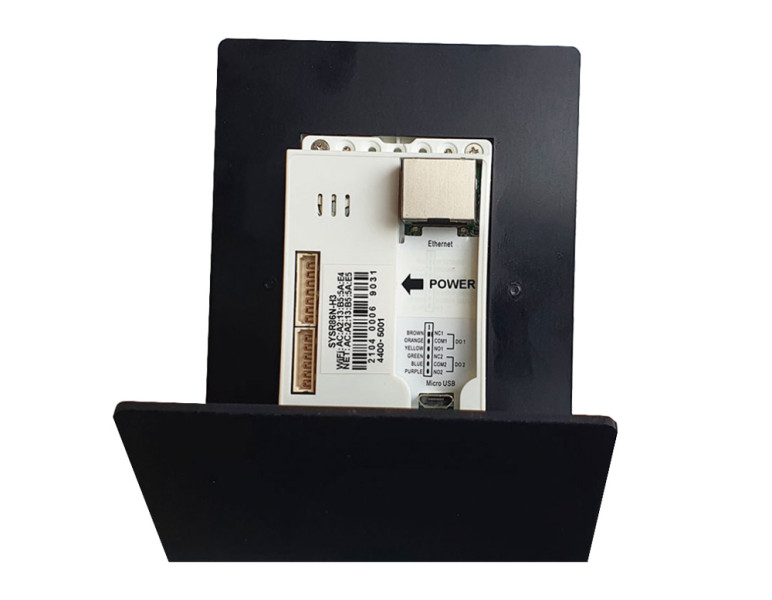

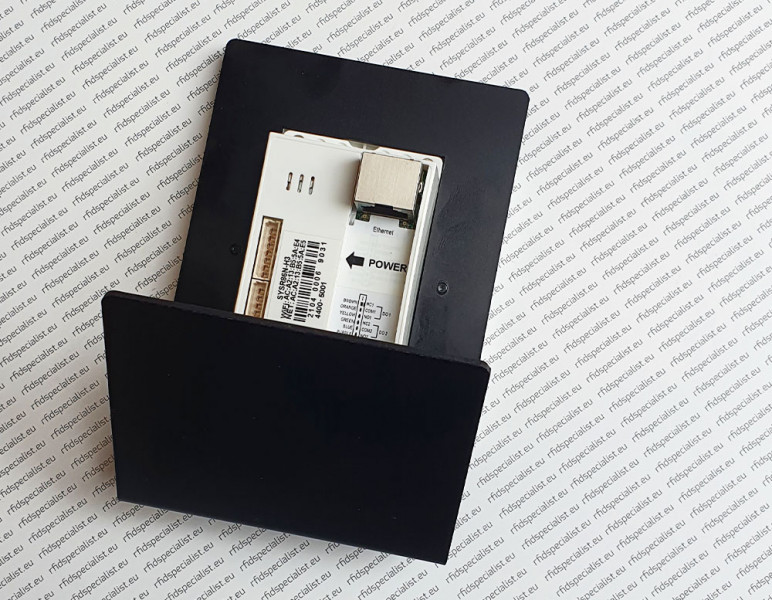

Interface: Micro USB, Ethernet, Wi-Fi
Output: 2x relay
Power supply: 12 VDC
Power consumption: 1~6W
Operating temperature: -10°C up to 60°C
Dimensions: 125 x 86 x 89 mm

If you need larger quantities send an email to info@rfidspecialist.eu or call +38641 884 124 and we will be happy to help you.

If you are an integrator or reseller, we offer special discounts.
