12V Power Supply Unit with Access Control Electronics
(Product ID: 3564)

The SDC-K80 is a specialized power supply unit that delivers 12V DC output and includes integrated electronics for controlling electromagnetic locks, strike locks, and other types of electric door locking mechanisms.

With an output current of up to 3A, it reliably powers even larger electric locks. The built-in control electronics also feature a programmable unlock delay of up to 15 seconds.

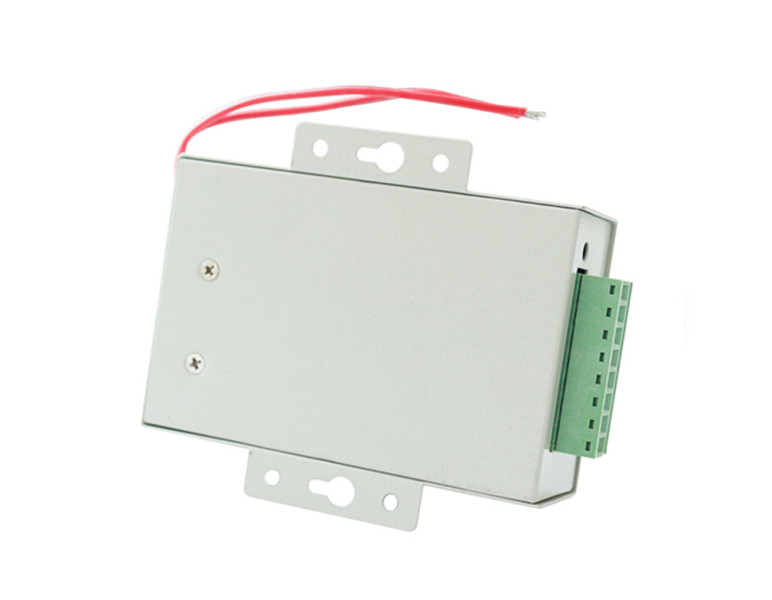

The device measures 115 × 90 × 34 mm and includes mounting holes for screw installation.

For further information or a quote, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer any of your questions.

If you are an integrator or reseller, we offer special discounts.
Price/item: 22,00 EUR (with vat 26,84 EUR)
Status: In stock
Dispatching time: 1-3 days
Product ID: 3564

Quantity:

Total:
22,00 EUR

Total with vat:
26,84 EUR
Add to cart
Do you need print or other specific requirements?
Send inquiry



INFO

The SDC-K80 is a versatile and reliable power solution for access control systems, electric locks, video intercoms, and other security-related devices.

Thanks to its compact design, high output current, and built-in protections, it is ideal for use in a wide range of environments — including homes, offices, and multi-tenant buildings.

Technical Specifications

Model: SDC-K80
Input Voltage: 110–260V AC, 50–60Hz
Output Voltage: 12V DC
Max Output Current: 3A
Power Output: 36W
Output Stability: ±0.5%
Operating Temperature: -26°C to +80°C
Adjustable Unlock Delay: 0–15 seconds
Dimensions: 115 × 90 × 34 mm (with screw holes)
Weight: 320g

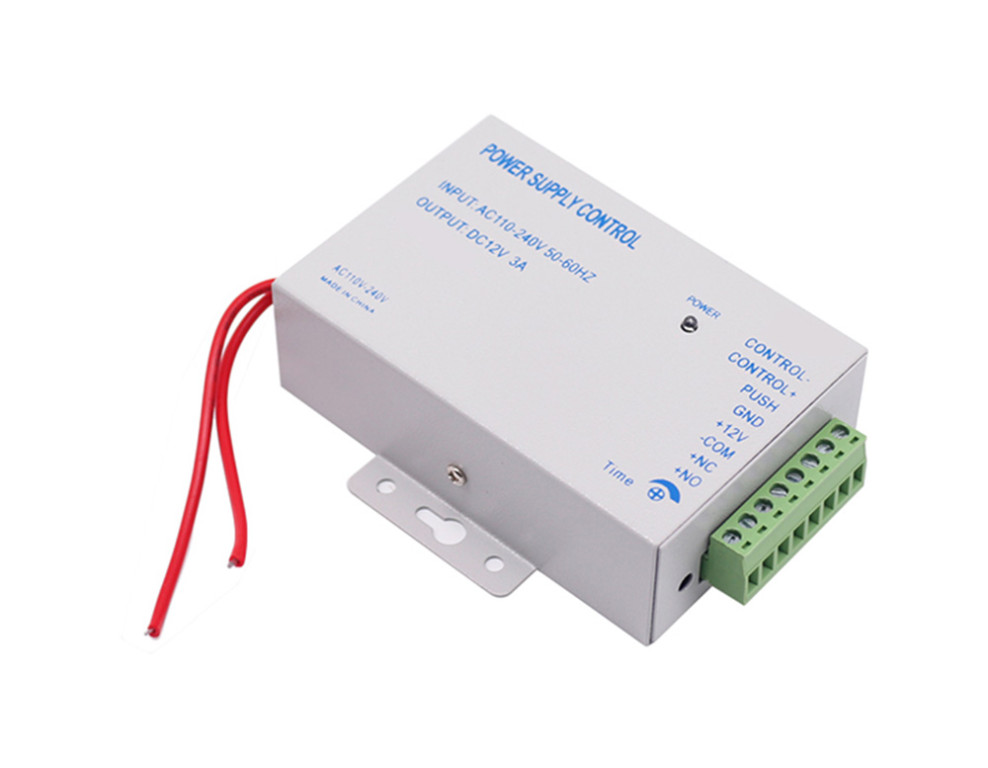

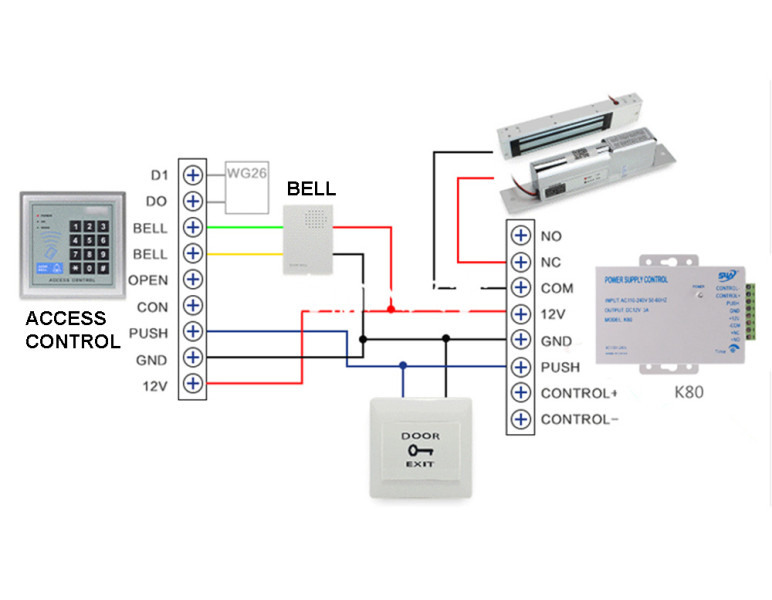

Output Terminals:

Control - / Control + – connection for video intercom systems
PUSH – for triggering from access control system
DC12V / GND – power supply output for access control devices
NO / NC / GND:
NC + GND for fail-safe magnetic locks (locked when powered)
NO + GND for fail-secure strike locks (opens with power pulse)

For further information or a quote, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer any of your questions.

If you are an integrator or reseller, we offer special discounts.
