INFO

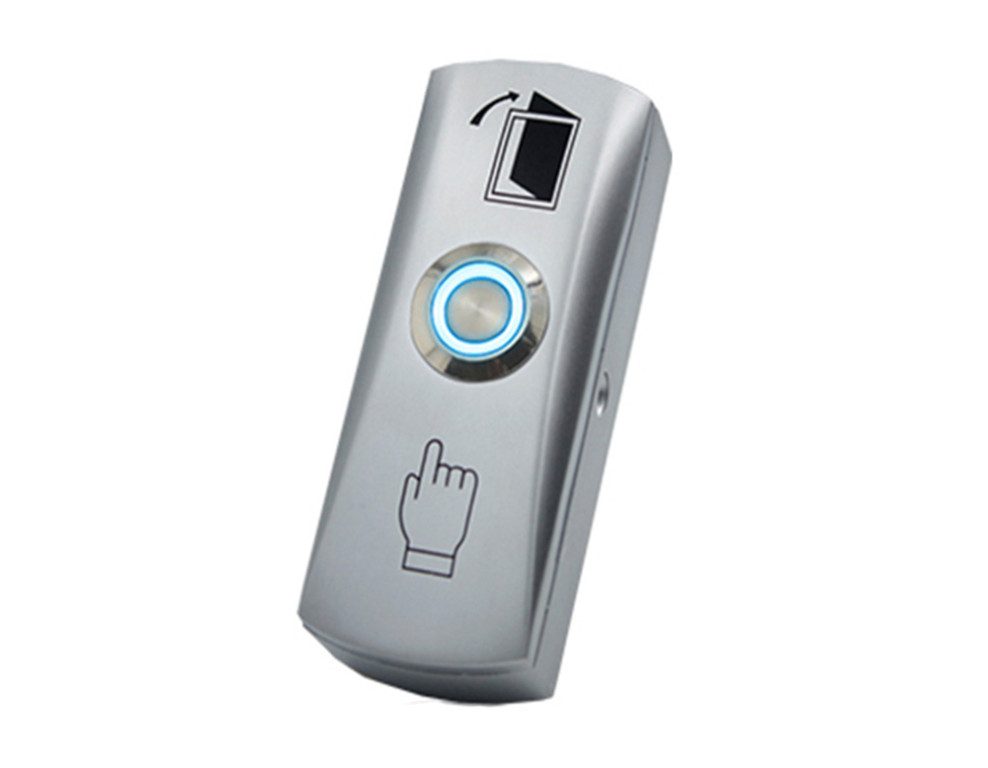

The metal exit button with LED illumination and durable housing is designed for use in access control systems, typically mounted on the interior side of the door to allow a simple and secure exit from a controlled area.

Constructed from metal (zinc alloy), the button is highly durable, tamper-resistant, and built to withstand long-term use.

The integrated LED light ensures enhanced visibility in poor lighting conditions.

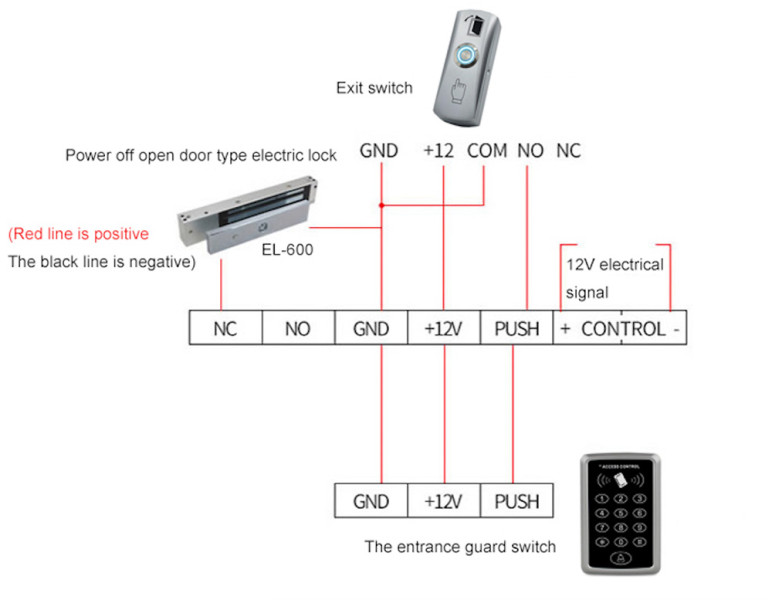

This type of button is commonly used in commercial, industrial, and residential applications, in combination with electronic locks and access control systems.

A single press of the button triggers the door release mechanism quickly and reliably.

Technical Specifications

Model: SDC-BE-1405

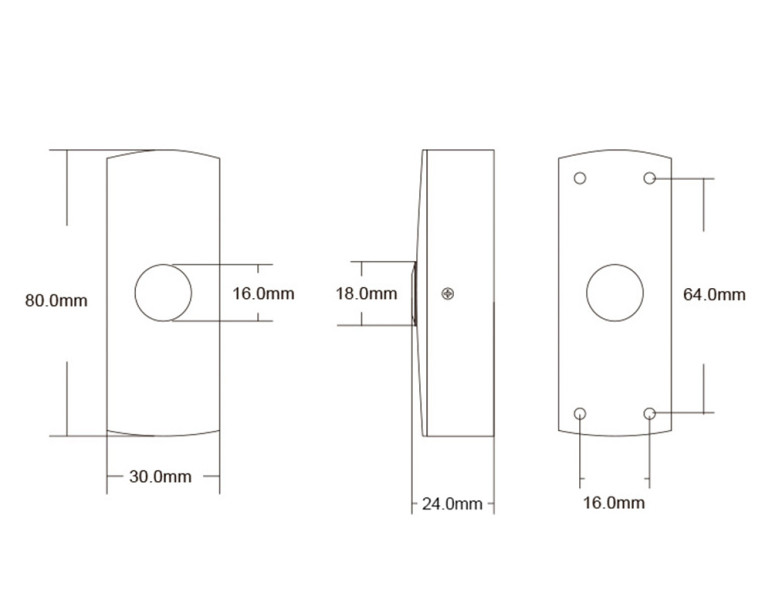

Dimensions: 30 × 80 × 24 mm
Material: Zinc alloy (metal housing)
Rated Current: 3A @ 36V DC

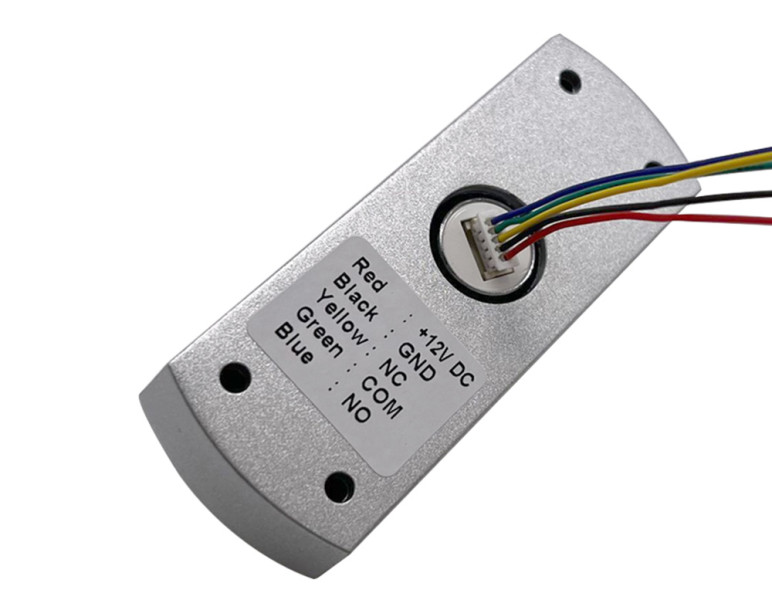

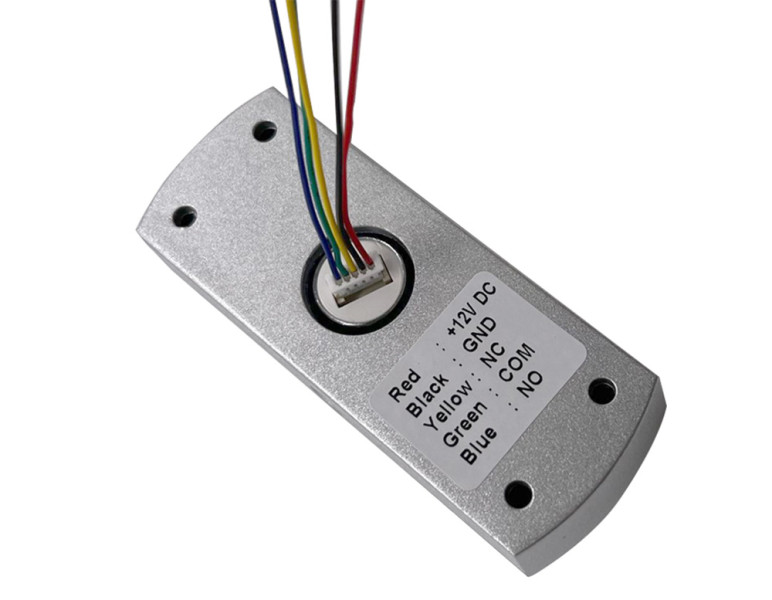

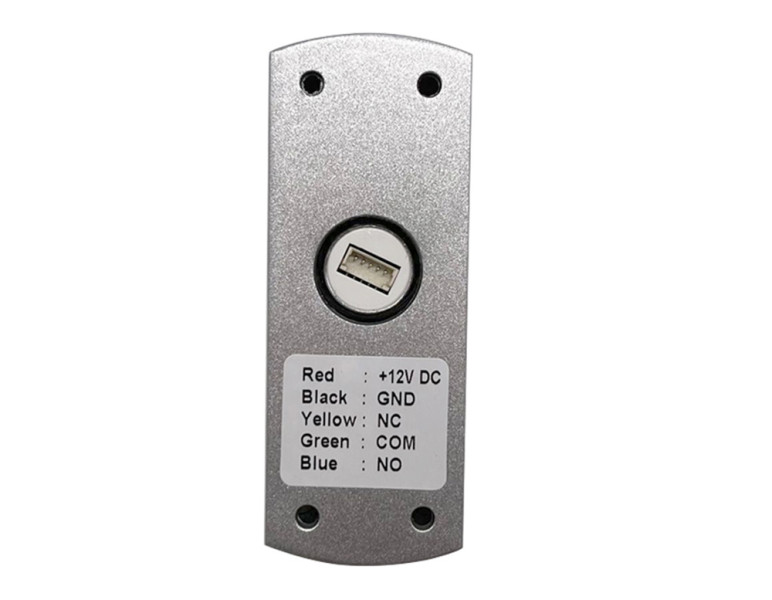

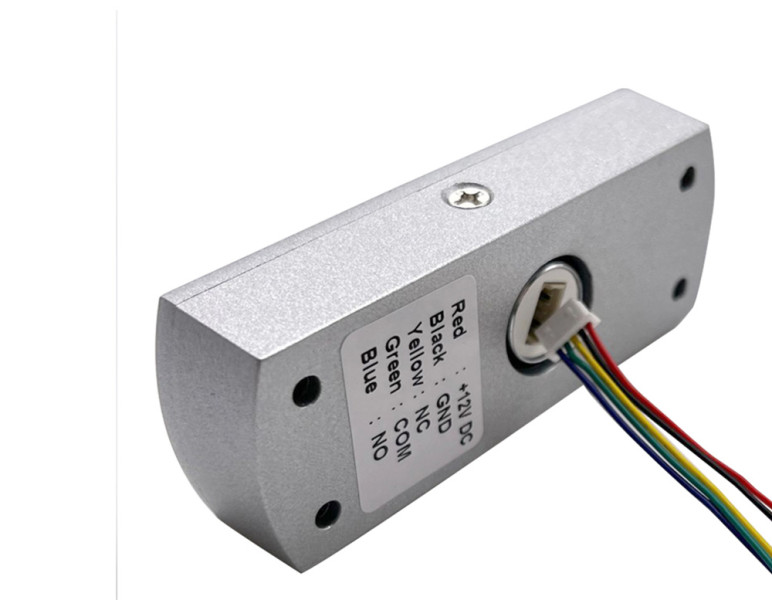

Output Contacts: +12V / GND / NO / NC / COM
Mechanical Lifetime: 5,000,000 operations
Operating Temperature: -10°C to +55°C
Humidity: 0–95%
Weight: 133 g
