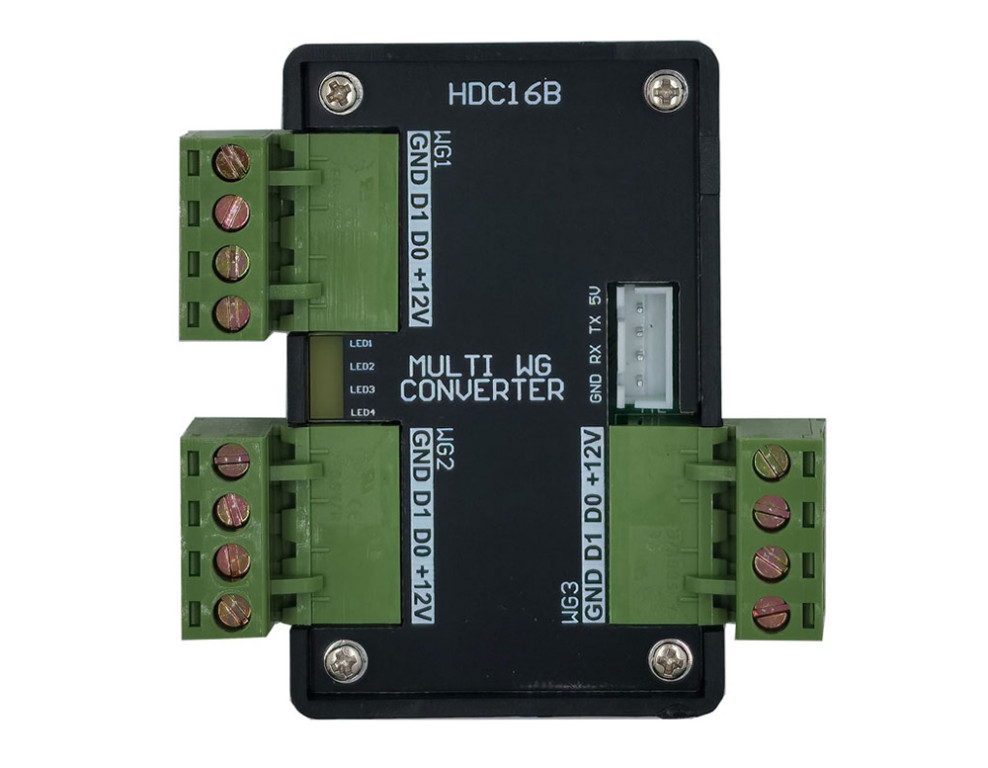

Dual Wiegand Reader to Single Controller Input Module

This device allows the connection of two separate Wiegand readers to a single input on an access control controller. Acting as a converter or signal combiner, it merges input signals from both readers and forwards them as a unified Wiegand signal to the controller.

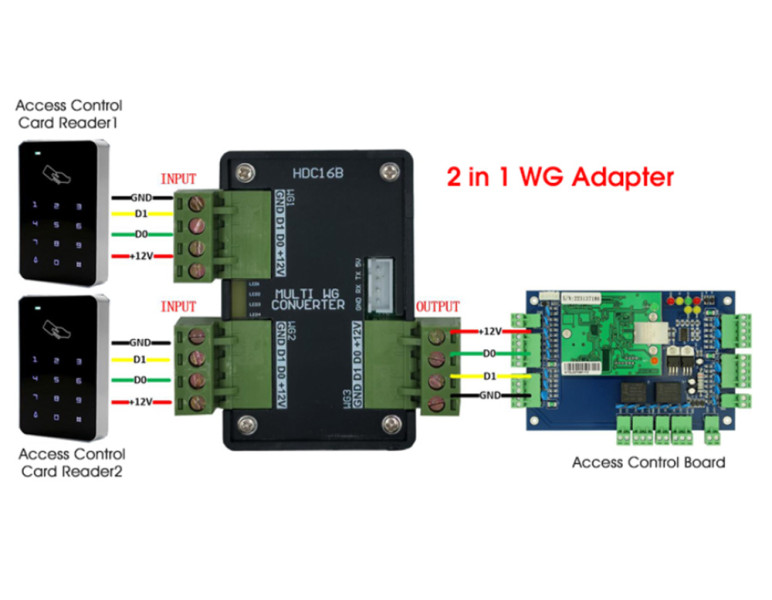

The module is commonly used to combine two Wiegand readers (typically placed on the inside and outside of a door) into a single controller input.

It’s ideal for access control systems that require multiple readers on a single input, offering greater system flexibility and efficiency.

By using this module, there's no need to install additional controllers for each reader—two readers can be connected to one input instead.

Technical Specifications

Dimensions: 70 × 70 × 25 mm
Enclosure: ABS plastic housing
Function: Acts as a converter/splitter, combining Wiegand signals from two readers into a single output
Power supply: 12V DC
Supported protocols: Wiegand 26-bit or 34-bit (others available on request)
Operating temperature: -10°C to +80°C
Humidity: 0–80%
Weight: 50 g
