SDC-16KEM Robust Code Keypad for Door Access via PIN Code or RFID Chip
(Product ID: 3868)

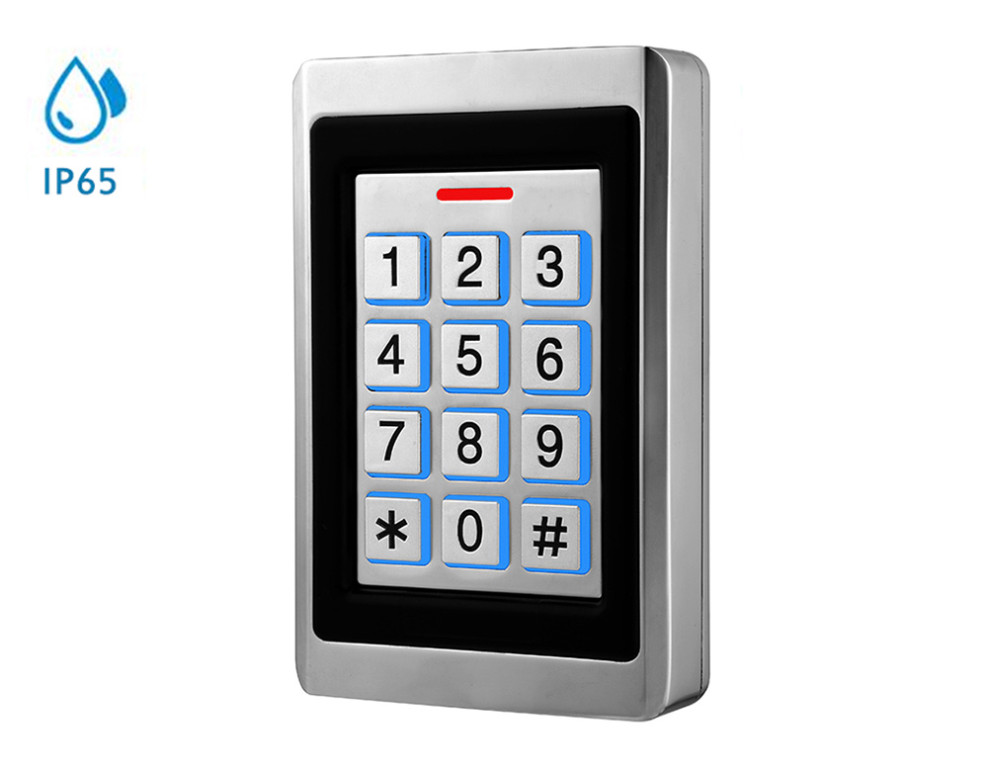

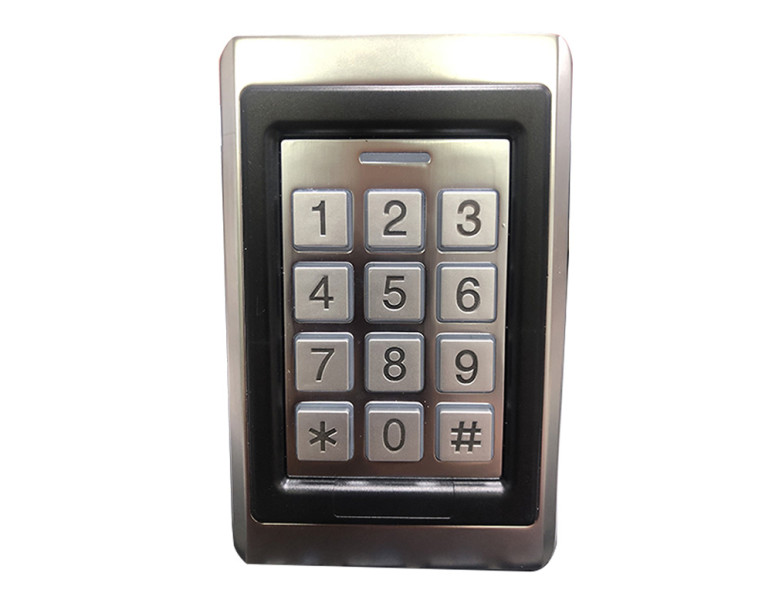

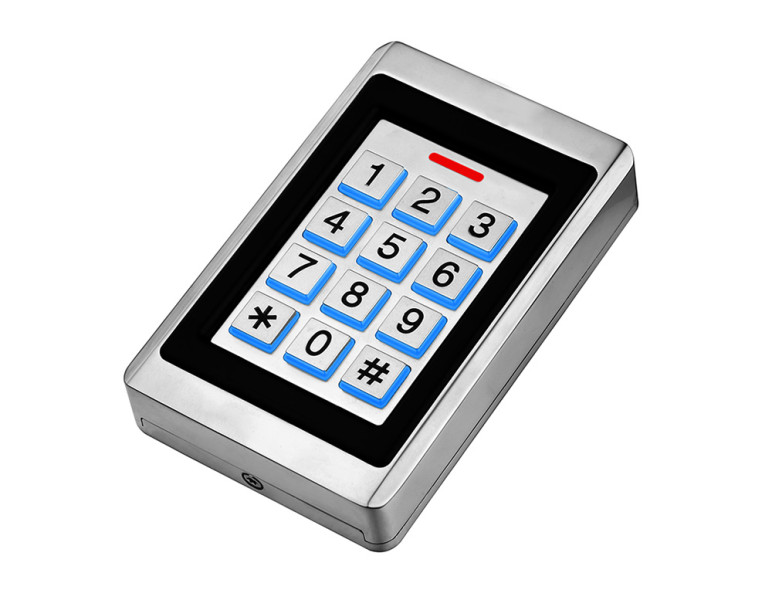

The SDC-16KEM is a highly robust code keypad designed for door access using either a PIN code or RFID chips.

This device includes a relay switch which can be used to open doors for warehouses, garages, public restrooms, and other similar scenarios where access control is required.

Key features:
  • Extremely robust zinc alloy housing (dimensions: 78x120×22 mm)
  • Waterproof, suitable for outdoor use
  • Illuminated keys; door opening via a 4-digit PIN code or 125 kHz RFID chips
  • Capacity for up to 2,000 users
  • 12V DC power supply
  • Includes a relay switch for connecting to an electronic lock
  • Operates independently or as a Wiegand reader
  • Supports user transfer to a new device

For further information or offer, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your queries.

If you are an integrator or reseller, we offer special discounts
Price/item: 57,00 EUR (with vat 69,54 EUR)
Status: In stock
Dispatching time: 1-3 days
Product ID: 3868

Quantity:

Total:
57,00 EUR

Total with vat:
69,54 EUR
Add to cart
Do you need print or other specific requirements?
Send inquiry



INFO

The SDC-16KEM is a robust, standalone device for door access using a PIN code or RFID chips operating at a frequency of 125 kHz.

Upon successful authentication, the relay switch activates, providing an impulse to the electronic lock, opening the door and allowing entry.

Technical specifications:

Model: SDC-16KEM

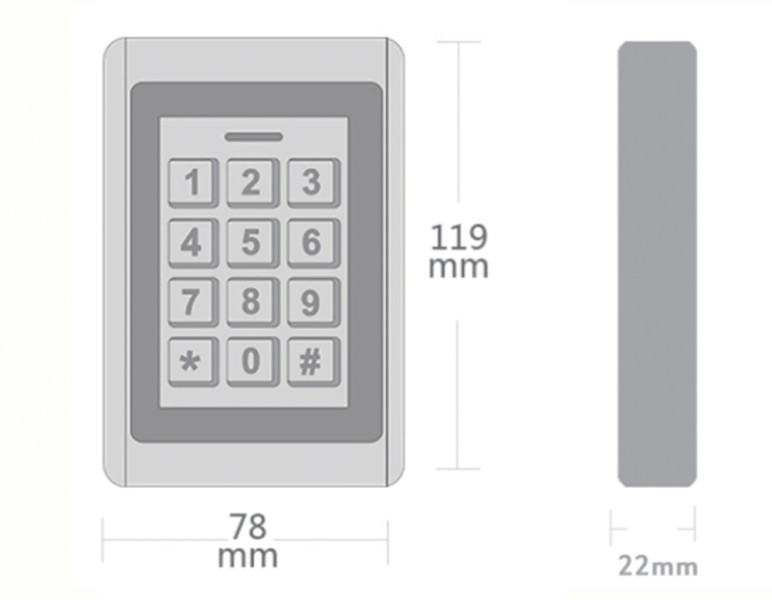

Dimensions: 78x120×22 mm
Power supply: 12V DC
Door access: 4-digit PIN code or RFID chip
Supported chips: TK4100, EM4200, programmed T5577 chips
Housing: Zinc Alloy
Max. number of users: 2,000
Relay impulse duration: 0-99 seconds
Max. relay load: 3A
Indicators: LED, buzzer
Operating temperature: -40°C to 60°C
Humidity: 0% to 95% (waterproof IP68 housing)


For further information or offer, contact us at info@rfidspecialist.eu. Our team of experts is here to assist and answer all your queries.

If you are an integrator or reseller, we offer special discounts
